5 Critical Benefits of Ultrasonic Level Detectors for Industrial Operations

Introduction to Ultrasonic Level Detection

Ultrasonic level measurement has revolutionized industrial process monitoring with its non-contact operation and reliable performance. Jiwei’s Uson series ultrasonic level detectors utilize high-frequency sound waves to accurately determine liquid and solid levels in storage tanks, silos, and process vessels. The working principle is elegantly simple yet highly effective: the sensor emits ultrasonic pulses that travel toward the material surface, reflect back, and are detected by the same transducer. By precisely measuring the time-of-flight of these sound waves with microsecond resolution, the device calculates the exact distance to the material surface with remarkable accuracy.

Jiwei’s Uson series ultrasonic level detectors are engineered for demanding industrial environments, offering exceptional performance in:

  • Water and wastewater treatment plants
  • Chemical processing facilities
  • Food and beverage production
  • Pharmaceutical manufacturing
  • Bulk solids storage applications

Precision Measurement with Temperature Compensation

Jiwei’s Uson series ultrasonic level detectors provide three configurable measurement ranges (5m, 10m, and 15m) to accommodate various industrial requirements. The integrated temperature compensation ensures stable accuracy (±0.5% FS) across a wide operating temperature range (-40°C to +80°C).

Key Features:
✓ Automatic compensation for environmental temperature variations
✓ Maintains measurement consistency in changing conditions
✓ Multiple range options for flexible application


Smart Communication & Echo Processing

5 Critical Benefits of Ultrasonic Level Detectors for Industrial Operations

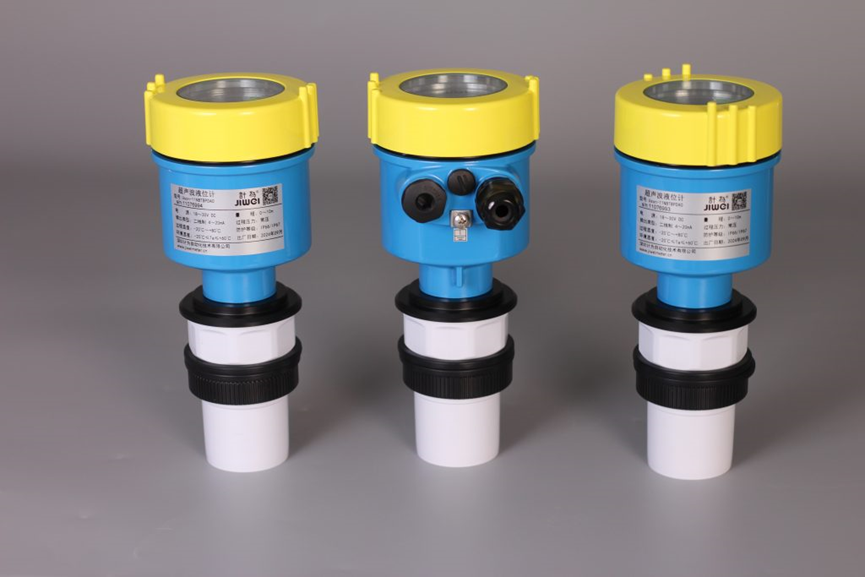

Jiwei Uson ultrasonic level detectors, accurate and reliable, with copyrighted software

The RS-485 communication interface enables:

  • Real-time data monitoring and recording
  • Easy integration with control systems
  • Remote configuration and diagnostics

Advanced signal processing technology:
✔ Effectively eliminates interference from false echoes
✔ Provides reliable measurement in challenging conditions
✔ Automatically adapts to surface variations


Robust Construction for Demanding Environments

5 Critical Benefits of Ultrasonic Level Detectors for Industrial Operations

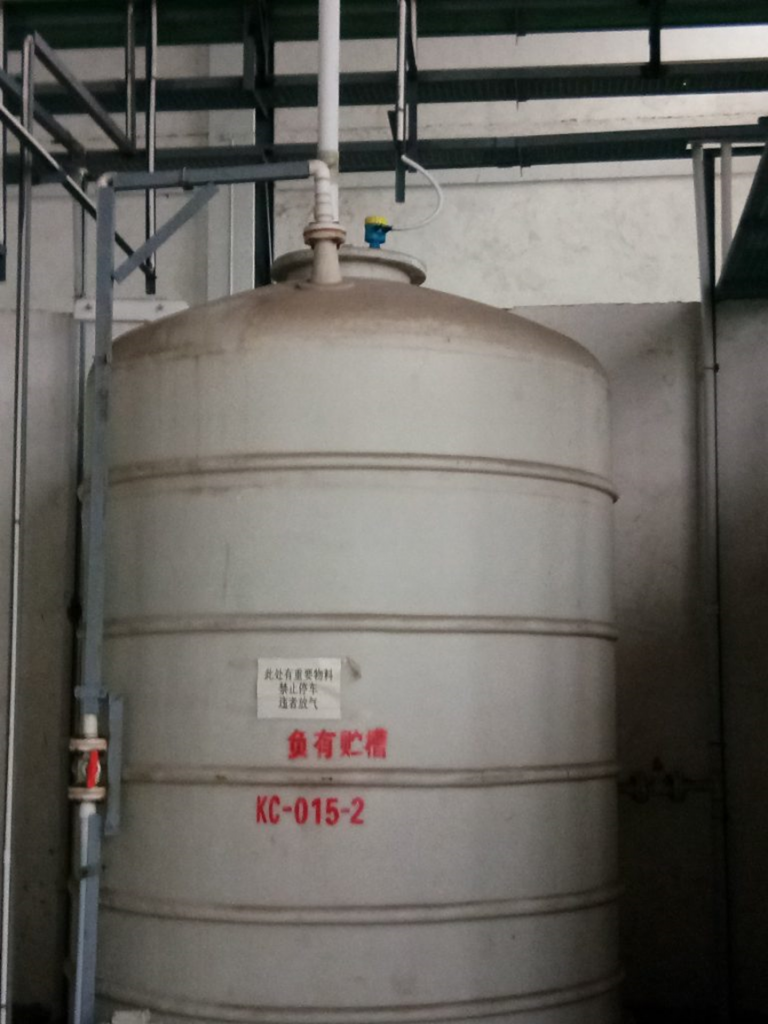

Jiwei Uson ultrasonic level detectors feature robust construction, designed to perform reliably in demanding environments

Designed for industrial durability:

  • IP66/IP67 protection against harsh conditions
  • PVDF transducer for superior chemical resistance
  • EMC compliance meeting IEC61000-4 standards:
  • Electrical Fast Transient (EFT) immunity
  • Electrostatic Discharge (ESD) protection
  • Surge withstand capability

Proven Performance:
➔ Withstands intensive cleaning procedures
➔ Maintenance-free operation for extended service life
➔ CE certified for quality assurance


User-Centric Design

Intuitive operation features:
✓ Multi-language interface support
✓ Simple installation and setup
✓ Optional Bluetooth configuration


Technical Specifications

FeatureUson SeriesConventional Ultrasonic
Accuracy±0.5% with compensation±1% typical
Measurement Range5m/10m/15m selectableFixed range
CommunicationRS-485 + 4-20mA4-20mA only
Environmental ProtectionIP66/IP67IP65 typical
Transducer MaterialChemical-resistant PVDFStandard materials

Conclusion

Jiwei’s Uson ultrasonic level detectors combine reliable accuracy, robust construction, and intelligent features for industrial level measurement applications. The non-contact design ensures maintenance-free operation with consistent performance.

Contact our technical team to select the optimal Uson solution for your specific requirements.
