Reliable Level Detection for Coal Surge Bins – Keep the Fuel Flowing

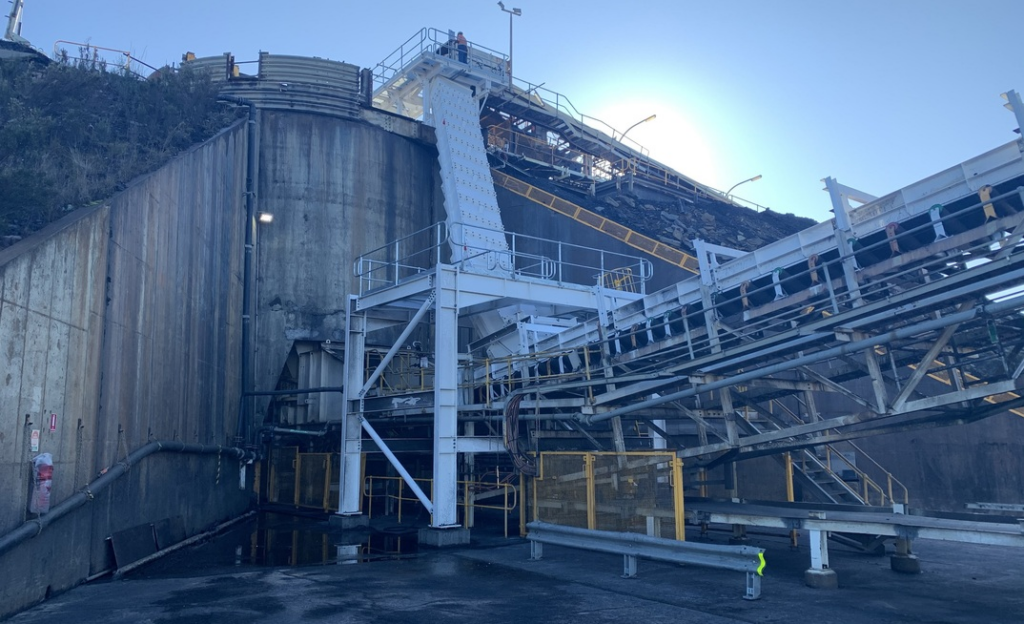

In coal-fired power plants, a coal surge bin acts as a buffer between coal delivery systems and the combustion chamber. Whether it’s lignite or anthracite, these bins handle the temporary storage of bulk coal, typically in structures ranging from several meters to as high as 30 meters. Ensuring smooth flow of fuel through these bins is critical to plant efficiency—and that means knowing exactly when to stop and start the feed.Coal Surge Bins
Accurate point level detection in coal surge bins is not just a convenience—it’s a necessity.
Extreme dust levels, continuous loading, and elevated temperatures make level monitoring in surge bins a difficult task. Traditional contact sensors often fail under such pressure, while non-contact technologies struggle with dust interference and require extensive maintenance. The result? Inaccurate measurements, unexpected stoppages, and wasted resources.Coal Surge Bins
That’s where Jiwei’s vibrating rod level switches provide a clear edge.
Built for Harsh Conditions
Coal surge bins are notorious for their demanding environment:
- High volumes of airborne dust during loading
- Elevated temperatures due to heat radiation from surrounding equipment
- Constant vibration from nearby conveyors and crushers
The Jiwei vibrating rod level switch is purpose-built for such challenges. It operates on the principle of mechanical vibration damping, which is triggered by the presence of solid materials such as coal. Since it’s tuned specifically for bulk solids, it’s immune to changes in dielectric constant, vapor, or pressure—factors that can confuse radar or capacitive sensors.

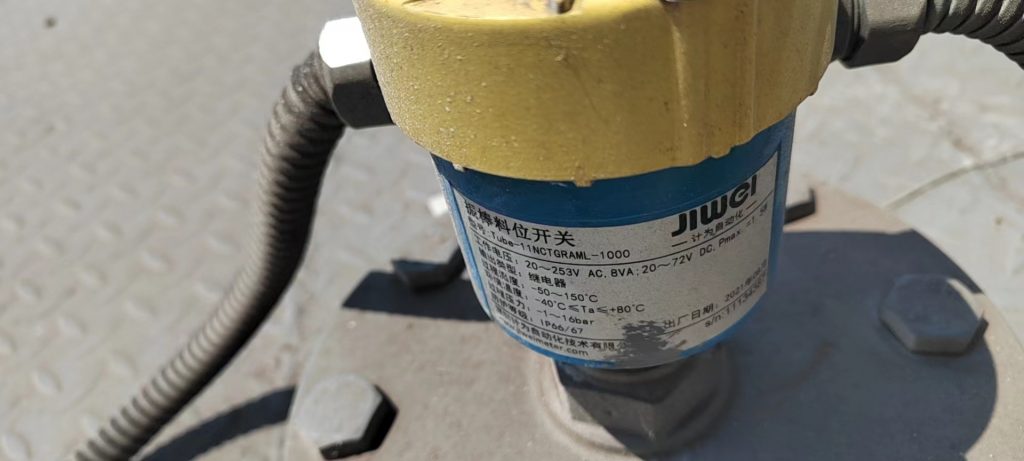

With a robust one-piece stainless steel design, it can withstand the rough conditions found inside surge bins without false alarms or signal drift. Its IP66/IP67 enclosure prevents dust and water ingress, ensuring years of stable operation with minimal maintenance.Coal Surge Bins
Minimal Downtime, Maximum Stability
Unplanned downtime in a coal plant can cost tens of thousands in lost productivity per hour. Overflowing bins damage equipment and cause blockages. Empty bins lead to starvation at the boiler, reducing thermal efficiency and power output.
A correctly placed vibrating rod level switch from Jiwei solves both problems:
- Positioned at the high level to prevent overfilling
- Positioned at the low level to alert before a dry-run occurs

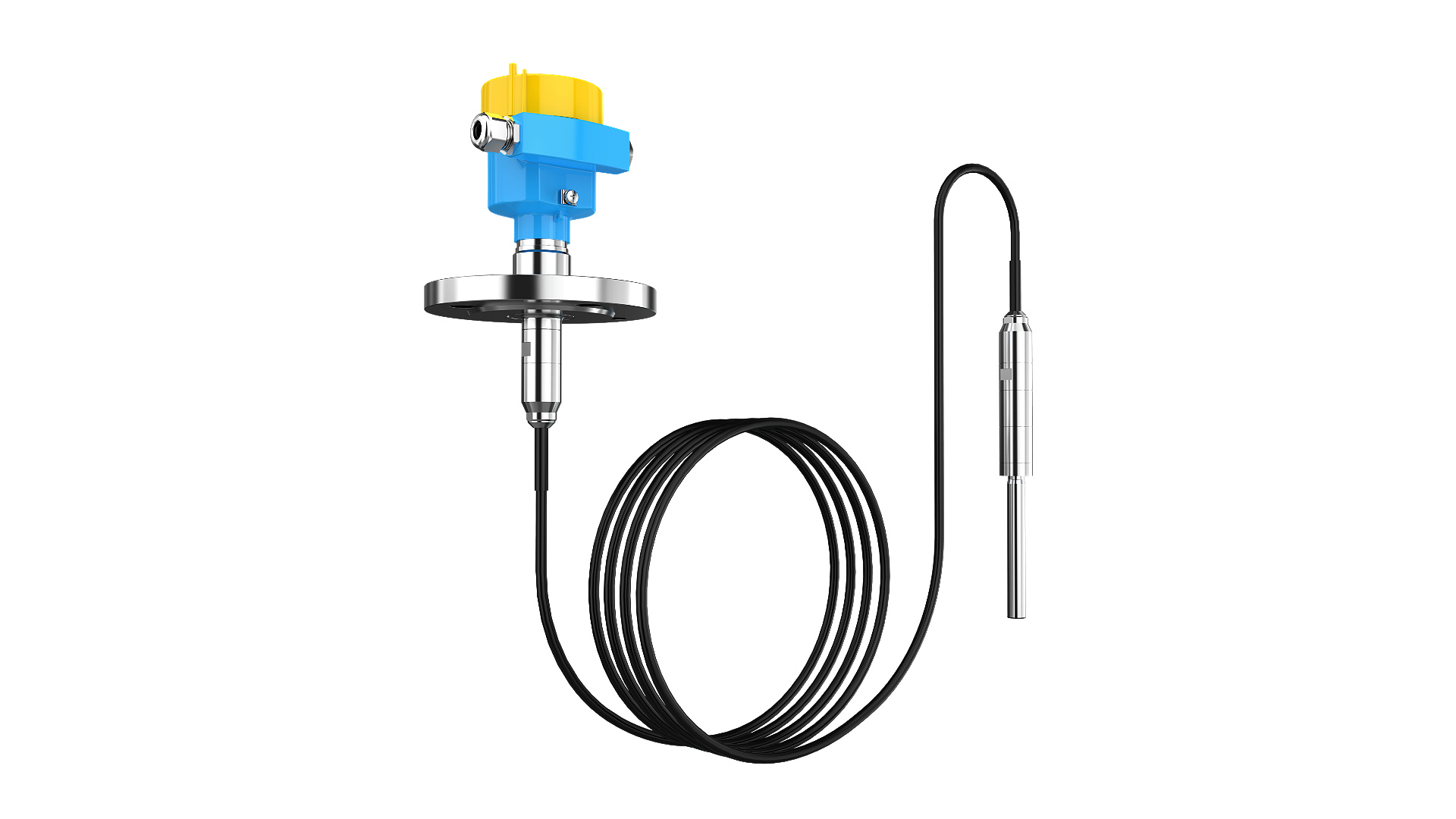

For surge bins taller than 20 meters, Jiwei’s suspension-type vibrating rod model is recommended. The rod is extended via a ruggedized cable, maintaining reliable performance without requiring complex signal processing or maintenance-heavy components.
No Calibration, No Hassle
Installation and commissioning are simplified with Jiwei’s factory-calibrated switches. There’s no need to match the sensor to the specific type of coal being handled. Once installed, the switch is ready to go—just set the relay output as needed and connect it to the plant’s PLC or control system.
This is especially useful in older facilities being modernized, where control engineers may need to retrofit existing bins without halting operations for long.
The Smarter Choice for Coal Surge Bin Monitoring
When you choose a Jiwei vibrating rod level switch, you’re not just getting a sensor—you’re installing a long-term solution to process stability. Unlike radar, ultrasonic, or capacitive systems that often need recalibration or cleaning, Jiwei’s vibrating rod technology is:
- Dust-resistant
- Immune to material build-up
- Suitable for all grades of coal
- Highest level of Gas and Dust Explosion-Proof

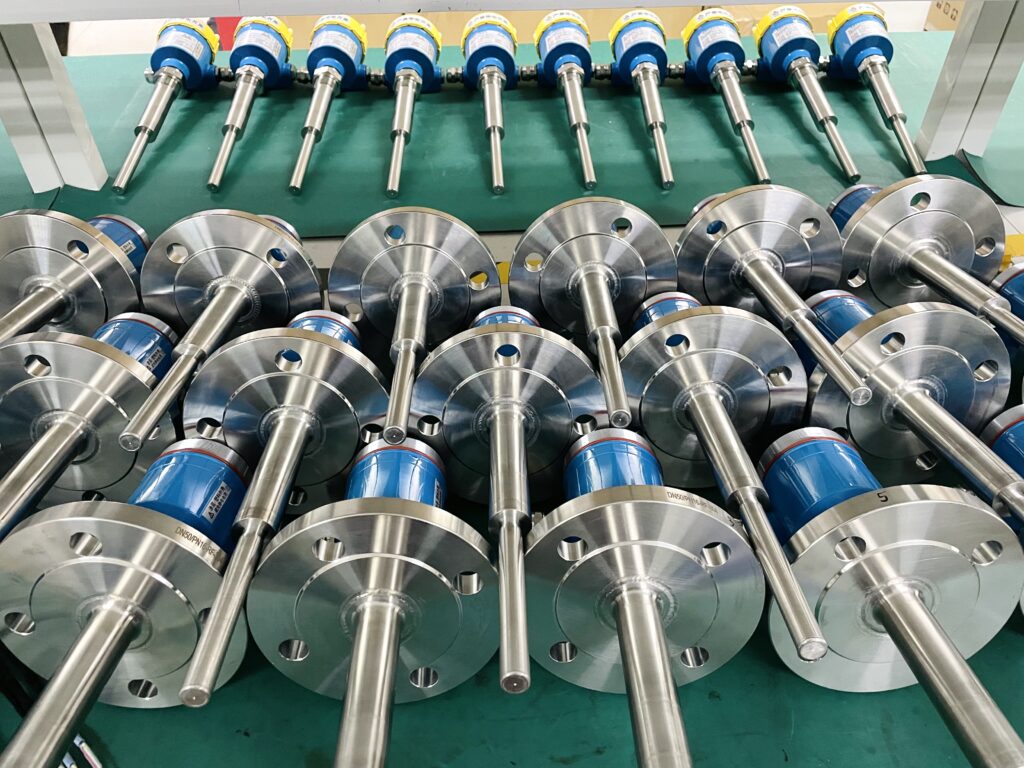

It’s already trusted in dozens of coal and biomass power stations across Asia, Europe, and the Middle East. Even industry leaders are turning to Jiwei to upgrade their material measurement systems.
Summary
The coal surge bin is a vital link in the fuel chain of any thermal power plant. When measurement fails, everything downstream suffers. Don’t let poor level detection be the bottleneck.
Choose Jiwei. Keep the flow moving.
FAQ – Vibrating Rod Level Switches for Coal Surge Bins
Q1: What makes vibrating rod level switches suitable for coal surge bins?
A: Jiwei vibrating rod level switches are ideal for bulk solids like coal due to their high dust resistance, vibration immunity, and ability to work in high-temperature environments. Unlike radar or ultrasonic sensors, they’re unaffected by dust clouds, material dielectric changes, or caking, making them reliable even in harsh coal handling conditions.
Q2: Can Jiwei switches be used in very tall bins, like those over 20 or 30 meters?
A: Yes. Jiwei offers a suspension-type vibrating rod level switch, designed for use in deep surge bins. The ruggedized cable design extends the sensing element deep into the silo without compromising stability or reliability.
Q3: Do these level switches require frequent maintenance?
A: No. Jiwei vibrating rod switches are designed for long-term, maintenance-free operation. Their sealed design prevents dust ingress and eliminates issues caused by material buildup, reducing the need for manual cleaning or recalibration.
Q4: Are Jiwei vibrating rods certified for safety applications?
A: Yes. Jiwei vibrating rod level switches are available with Gas and Dust Explosion-Proof Dual Certification, making them suitable for critical points like overfill prevention in surge bins.
Q5: How difficult is it to install and commission these level switches?
A: Installation is simple. The device comes pre-calibrated and does not require on-site material-specific tuning. Just mount the probe at the desired detection point, connect to the control system, and you’re ready to go.
Q6: What types of coal can the Jiwei level switch detect?
A: Jiwei’s vibrating rod switches can detect a wide range of solid fuels, including lignite, bituminous coal, sub-bituminous coal, anthracite, and even blended or recycled coal materials.
Q7: What power supply and output types are available?
A: Standard models support 24V DC or 220V AC supply, with relay or two-wire output options. Integration with plant PLCs or safety systems is straightforward via common industrial protocols.
