Boiler Steam Drum Level Measurement: Vibrating Fork Level Switch and Radar Level Meter
In thermal power plants and large industrial boiler systems, the boiler steam drum (Steam Drum) is one of the most critical pieces of equipment in the steam generation system. The steam drum is responsible for separating water and steam, stabilizing steam quality, and regulating the boiler water circulation process.

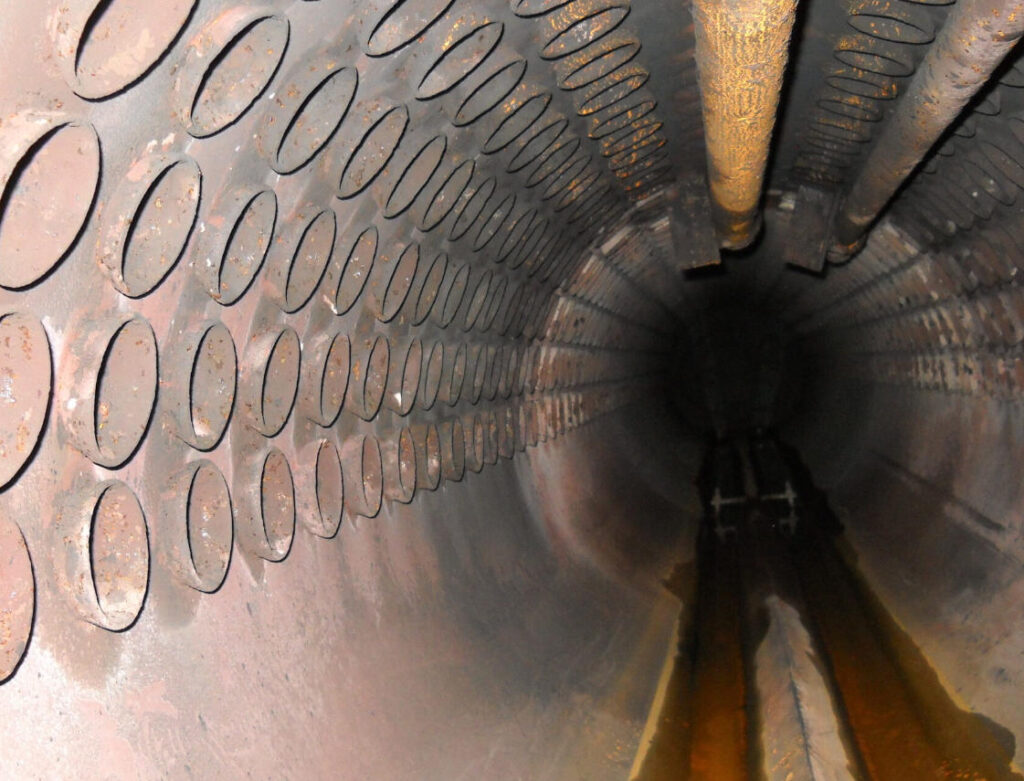

During boiler operation, combustion heat converts water into a steam-water mixture. This mixture rises through the riser tubes and enters the steam drum, where the separation process takes place. The steam is then directed to the turbine or industrial process systems, while the water flows back to the boiler through downcomer tubes to continue the circulation cycle.
In modern power plants, different industrial processes require steam at different pressure levels to provide process heat. Steam pressure directly determines the process temperature, which means boiler systems often operate under high-temperature and high-pressure conditions. In some large-scale power plant boilers, the temperature inside the steam drum can reach up to 400°C.
Under such extreme operating conditions, stable control of the steam drum water level is not only essential for boiler efficiency but also crucial for the overall safety of the power plant.
If the steam drum water level becomes too high, water droplets may be carried into the steam pipeline, potentially causing turbine blade erosion or severe equipment damage. Conversely, if the water level becomes too low, boiler tubes may overheat and burn out, leading to serious safety accidents.
Therefore, steam drum level measurement and high/low level protection are critical components of the boiler control system.
Challenges of Steam Drum Level Measurement
Compared with ordinary storage tanks, steam drum level measurement faces extremely demanding operating conditions that require highly reliable instrumentation.
High Temperature and High Pressure
The steam drum operates continuously under extreme temperature and pressure conditions. Traditional level measurement instruments may experience seal aging, mechanical deformation, or measurement drift in such environments.
Complex Steam Environment
Inside the steam drum, there is a large amount of high-temperature steam, water turbulence, and pressure fluctuations. These factors can significantly interfere with level measurement signals.
High Safety Requirements
Boiler systems typically require multiple layers of protection, including continuous level measurement and independent high and low level alarms. If the primary measurement fails, the safety protection system must respond immediately.
For these reasons, an ideal steam drum level measurement solution should provide:
- Long-term stable operation in high temperature and high pressure environments
- Measurement unaffected by steam and pressure fluctuations
- Reliable high and low level protection
- Simple structure with low maintenance requirements
In many modern power plant projects, the combination of a radar level meter and vibrating fork level switch is increasingly becoming the preferred solution.
Jiwei Solution: JWrada Radar Level Meter + Ring-11 Vibrating Fork Level Switch
To address the complex operating conditions of boiler steam drums, Shenzhen Jiwei Automations Ltd provides a proven and reliable level measurement solution:
JWrada radar level meter for continuous level measurement + Ring-11 vibrating fork level switch for high/low level safety protection.
This combined solution enables both accurate level monitoring and a robust safety interlock system.
JWrada Radar Level Meter: Stable Continuous Level Measurement
In steam drum applications, continuous level measurement is mainly used for the boiler feedwater automatic control system. The control system requires real-time level data to regulate the feedwater valve and maintain a stable water level.
The JWrada series radar level meter uses high-frequency radar technology. It measures level by transmitting electromagnetic waves and receiving the reflected signals from the liquid surface.
Compared with traditional differential pressure level measurement, radar level meters offer several advantages.
Independent of Medium Density
Inside the steam drum, water density changes with temperature and pressure. Radar measurement relies solely on electromagnetic wave reflection, which means no density compensation error occurs.
Strong Resistance to Steam Interference
High-frequency radar signals feature narrow beam angles and stable echo signals, allowing reliable measurements even in environments with high steam concentration.
Easy Installation and Low Maintenance
The JWrada radar level meter can be installed directly on the top measurement nozzle of the steam drum, and commissioning can be completed through simple parameter configuration.
Another important advantage is that the software system of the JWrada radar level meter is fully developed in-house by Jiwei. The software supports parameter configuration, echo curve analysis, fault diagnostics, and firmware upgrades, allowing continuous optimization for different operating conditions.
In practical applications, engineers can also use a cloud-based remote debugging platform to monitor radar echo curves and EFT signals. This allows measurement parameters to be optimized remotely, ensuring stable performance even under complex steam conditions.
Within the boiler control system, the JWrada radar level meter continuously outputs stable level signals, providing reliable data for the boiler feedwater control system and ensuring that the steam drum water level remains within a safe operating range.
Ring-11 Vibrating Fork Level Switch: Reliable Safety Protection
In boiler systems, continuous level measurement alone is not sufficient. To prevent dangerous conditions, power plants typically install independent high-level and low-level protection devices.
The Ring-11 vibrating fork level switch from Jiwei is specifically designed for such critical safety applications.
The Ring-11 operates based on the vibrating fork detection principle. When liquid contacts the fork, the vibration frequency changes, and the instrument immediately outputs a switching signal.
This detection method offers several advantages.
First, it provides fast response speed, allowing immediate detection of level changes.
Second, it is independent of medium conductivity, foam, or bubbles, ensuring stable operation even in turbulent steam-water environments.
Third, the instrument features a robust industrial design capable of long-term operation in high-temperature environments.
In steam drum systems, two Ring-11 level switches are typically installed for:
- High Level Alarm (HLA)
- Low Level Trip (LLT)
If the water level reaches a dangerous limit, the system immediately triggers an alarm or initiates a safety shutdown to prevent serious accidents.
Practical Application: Large Power Plant Boiler System in East China
In a large coal-fired power plant project in East China, the engineering team adopted the JWrada radar level meter + Ring-11 vibrating fork level switch solution for steam drum level measurement.
The boiler steam drum operated under the following conditions:
- Operating temperature: approximately 350°C
- Environment: high humidity steam
- Measurement requirement: continuous level monitoring + high/low level protection

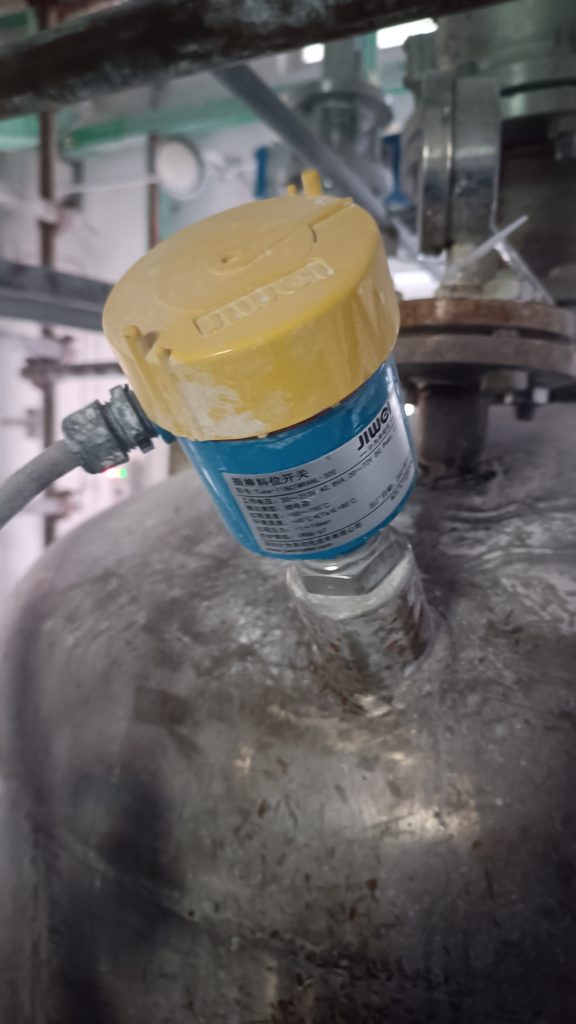

During installation, engineers mounted a JWrada radar level meter on the top of the steam drum for continuous level measurement. Two Ring-11 vibrating fork level switches were installed on the side of the drum to serve as high-level and low-level protection devices.
After commissioning, the JWrada radar level meter continuously provided stable level signals for the boiler feedwater control system, while the Ring-11 switches acted as an independent safety layer to ensure rapid safety response in extreme situations.
After long-term operation, the system has maintained stable performance even in high-temperature steam environments, with reliable measurement results and no false alarms.
Plant maintenance personnel reported that compared with traditional differential pressure level measurement systems, the new solution not only provides more stable measurement but also significantly reduces maintenance workload, improving the overall reliability of the boiler system.
Conclusion
In power plant boiler systems, steam drum level measurement is essential for safe boiler operation. Under challenging conditions such as high temperature, high pressure, and dense steam environments, traditional level measurement technologies often struggle to maintain long-term stability.
By combining the continuous measurement capability of the JWrada radar level meter with the reliable safety protection of the Ring-11 vibrating fork level switch, Shenzhen Jiwei Automations Ltd provides a robust and reliable solution for steam drum level measurement.
This approach not only ensures accurate level monitoring, but also establishes multiple layers of safety protection, helping power plants maintain safe and efficient long-term operation.
As industrial automation continues to evolve, the combined application of radar level meters and vibrating fork level switches is becoming the standard configuration for many power plant and energy industry projects.
