Level Measurement in Compressor Knockout Drums: JWrada PRO Radar Application at Baofeng Energy

I. Introduction: The Safety Guardian of Compressor Systems

In the petrochemical, natural gas processing, and coal-to-chemical industries, the compressor is regarded as the heart of the production unit. Its operational status directly impacts the safety and efficiency of the entire line. At the front end of the compressor system, the Compressor Knockout Drum plays a silent but vital role.

The primary function of a knockout drum is gas-liquid separation, removing condensate, water, or hydrocarbons from the gas stream. This process is critical: if the liquid level becomes too high, liquid carry-over into the high-speed rotating impellers can cause severe liquid slugging, destroying expensive compressor blades or even triggering explosions. Achieving accurate, reliable level measurement in an environment filled with steam, foam, and shifting media properties is a significant challenge in industrial automation. This article explores how the Jiwei JWrada PRO radar level transmitter addresses these hurdles at Ningxia Baofeng Energy.

Process Analysis: Challenges in Knockout Drum Level Measurement

At Baofeng Energy’s methanol synthesis unit, the knockout drum before the synthesis gas compressor is a critical safety node. Based on field data, this measurement point faces several complex process challenges:

• Measuring Task: Level measurement

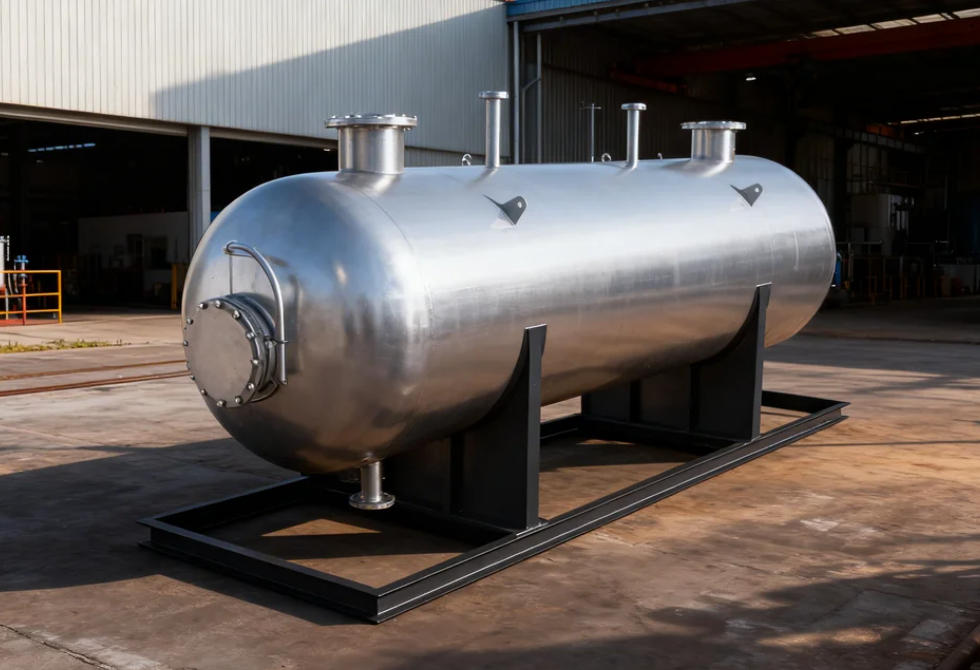

• Object: Compressor Knockout Drum
• Range: Up to 2 meters
• Medium: Mixture of hydrocarbons and water
• Temperature: +60 to +120 C
• Pressure: +3 to +10 bar
• Special Challenge: Frequent changes in media properties (Dielectric Constant fluctuations)

In practice, high-density process steam interferes with microwave signals, while the constant switching between hydrocarbons and water causes the dielectric constant (εr) and density to fluctuate. This leads to drift in traditional level measurement devices. Furthermore, violent gas-liquid exchange creates surface turbulence and foam, often causing false echoes. Previous instruments frequently failed to distinguish true levels, causing false alarms or even interlocking compressor shutdowns.

Hardware Breakthrough: The Precision of JWrada PRO

To solve these pain points, the technical team at Baofeng Energy selected the Jiwei JWrada PRO high-frequency radar level transmitter. As a high-performance industrial level instrument, the JWrada PRO demonstrates exceptional adaptability.

1. Immunity to Steam and Media ChangesJWrada PRO utilizes advanced non-contact radar technology. Its 80GHz microwave signals possess strong penetration capabilities, allowing them to ignore high-temperature steam and reflect accurately off the liquid surface. Because the measurement is based on the Time-of-Flight principle, it is unaffected by density changes. Whether measuring hydrocarbons or water, JWrada PRO maintains a high precision of +/- 1mm.
2. Robust Anti-interference CapabilityTo handle surface turbulence and foam in the knockout drum, JWrada PRO is equipped with high-gain antennas and advanced signal processing algorithms. Its narrow beam angle and concentrated energy effectively avoid interference from tank walls or internal baffles. Precise filtering allows the transmitter to identify the true level echo, ensuring output stability.
3. Durable Protective DesignDesigned for temperatures up to 120 C and pressures of 10 bar, JWrada PRO features a fully sealed, weather-resistant housing (IP67/IP68). The probe is made of high-performance corrosion-resistant materials, extending service life and reducing maintenance costs.

Core Competitiveness: Software Empowerment and Remote O&M

While superior hardware provides the foundation, the proprietary intelligent software system is the brain of JWrada PRO. This is Jiwei’s core competitive advantage over other domestic manufacturers.

1. Unique Software Advantages: Intelligent ManagementThe JWrada PRO radar level meter is more than a sensor; it is an intelligent terminal. Its built-in software covers software updates, process commissioning, parameter settings, and fault code viewing. Users can monitor the health of the device through a simple interface.
2. Cloud-Based Remote Commissioning: Breaking Spatial LimitsJWrada PRO supports a cloud-based remote commissioning mechanism, which proved invaluable at Baofeng Energy. Since the plant is in a remote location and the compressor area is a high-risk zone, frequent personnel entry poses safety risks.

During the initial phase, a knockout drum experienced level fluctuations due to process changes. Jiwei engineers in the Shenzhen R&D center performed one-on-one remote commissioning via the cloud server. By analyzing real-time echo curves and EFT (Interference Suppression Technology) curves, the engineers identified the interference source and implemented customized parameter optimizations specifically for foam. This cloud-based diagnosis reduced response times from days to hours, a technology currently unique to Jiwei in the domestic market.

Conclusion

Compressor knockout drum level measurement is a small but vital link in the safety of large chemical plants. The success of JWrada PRO at Ningxia Baofeng Energy demonstrates the capability of high-end domestic instruments in complex conditions. By combining hardware performance with cloud-based software innovation, Jiwei is redefining the maintenance model for level meters.
