Condensate Storage Tank Level Measurement and Point Level Detection Solution: Jiwei Vibrating Level Switch
Level switches play a critical role in ensuring the safe and efficient operation of condensate storage tanks within steam power systems. By providing reliable point level detection, they help prevent tank overfilling, protect pumps from dry running, and maintain stable process conditions.
In condensate recovery applications, the medium is often characterized by high temperature, varying pressure, and the presence of flash steam or turbulence, which places higher demands on the reliability of level detection devices. A robust level switch can operate consistently under these challenging conditions, minimizing false alarms and reducing maintenance frequency.
By integrating level switches into condensate storage systems, operators can achieve better control over condensate recovery and reuse, improve overall energy efficiency, and enhance the safety and continuity of plant operations.
However, the internal environment of condensate storage tanks is extremely complex, often involving high process temperatures, saturated steam, and condensation caused by pressure fluctuations. This places extremely stringent demands on level measurement instruments. This article explores how the Jiwei Ring-11 Vibrating Level Switch can achieve highly reliable, maintenance-free point level detection in condensate storage tanks, ensuring safe and efficient system operation.
1. Operating Conditions and Measurement Requirements of Condensate Storage Tanks

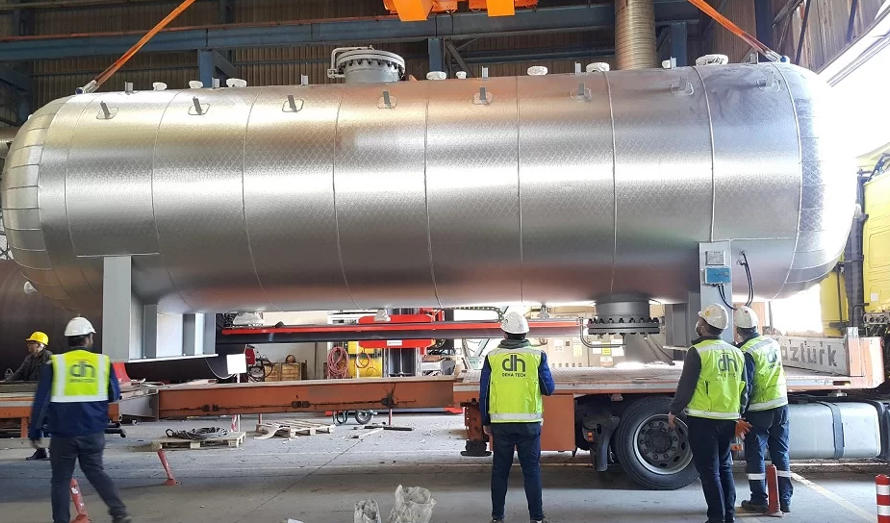

Condensate storage tanks are typically designed as horizontal vessels (Horizontal Bullet), with a measurement range generally within 3 meters. Although the medium is primarily water, its physical state becomes highly unstable due to high temperature and pressure.
1.1 High Temperature and Steam Interference
The process temperature of condensate typically ranges from +120°C to +230°C, and in some special conditions, pressure can reach +1 to +10 bar. In such a high-temperature, steam-saturated environment, conventional level sensors may fail due to overheating of electronic components or produce false alarms caused by steam condensation on the sensor surface.
1.2 Limited Installation Space
Due to structural constraints, horizontal vessels often have short nozzles or limited installation space, requiring instruments with a compact design that ensures both high sensitivity and ease of installation and retrofit.
1.3 Maintenance Cost and Safety
Condensate is a valuable industrial resource. Excessively high liquid levels may lead to overflow, resulting in energy waste and environmental pollution, while low levels may cause pump dry-running and equipment damage. Since storage tanks usually operate continuously, frequent shutdowns for maintenance significantly increase operational costs.
2. Technical Advantages of Jiwei Ring-11 Vibrating Level Switch
To address the above harsh conditions, the Jiwei Ring-11 Vibrating Level Switch has become an ideal solution for condensate storage tank level detection, thanks to its unique design concept and advanced manufacturing technology.
2.1 Excellent High-Temperature Resistance
Ring-11 adopts advanced thermal isolation technology and high-temperature-resistant materials. Its standard design can handle severe thermal loads, with process temperature resistance up to 280–400°C, which is leading in the industry. For typical condensate conditions up to 230°C, Ring-11 provides a significant safety margin, ensuring long-term stability in extreme thermal environments.
2.2 Compact Structure and Short Fork Design
Ring-11 features a fork length of only 40 mm, making its compact design particularly suitable for horizontal vessels and related pipeline applications. It enables installation through existing narrow process connections without modifying the tank structure, effectively solving space constraints.
2.3 High Sensitivity and Low-Density Capability
Under high temperatures, the density of condensate may vary slightly. Ring-11 is precisely tuned and can detect media with a minimum density of 0.5 g/cm³. This ensures reliable detection regardless of temperature fluctuations or minor changes in medium conditions.
2.4 Strong Anti-Interference and Maintenance-Free Operation
In condensate storage tanks, steam turbulence and minor foam may occur. Based on its frequency-change detection principle, Ring-11 is completely unaffected by foam, bubbles, vibration, or viscosity changes. This physical measurement principle ensures extremely high reliability and enables a true “install-and-forget” maintenance-free performance.
3. Application Benefits: Safe, Economical, and Simple
Deploying the Jiwei Ring-11 Vibrating Level Switch in condensate recovery systems brings multiple key advantages:
High Safety
Certified with SIL2/3, intrinsic safety, explosion-proof certification, as well as CE and EAC approvals. Ring-11 serves as a critical safeguard in high-risk petrochemical environments, preventing accidents caused by level control failure.
Cost Efficiency
With inherent resistance to high temperature and steam, the instrument eliminates false triggering and reduces production interruptions. No frequent cleaning or calibration is required, significantly lowering maintenance costs.
System Compatibility and Ease of Use
Supports multiple output signals including relay, two-wire (4–20 mA), NAMUR, and transistor outputs, enabling seamless integration with PLC and DCS systems.
Simple Retrofit and Upgrade
Supports direct replacement without major modifications to existing tank connections, making it ideal for automation upgrades in legacy plants.
4. Industry Application Summary
Beyond condensate storage tanks, the Jiwei Ring-11 also meets HACCP and 3A hygiene standards, making it suitable for industries with strict sanitary requirements such as pharmaceuticals and food processing.
Technical Summary:
- Measurement Target: High/low level detection in condensate storage tanks
- Key Challenges: High temperature up to +230°C, saturated steam interference
- Solution: Ring-11 Vibrating Level Switch (40 mm short fork, up to 400°C resistance)
- Final Result: Stable measurement unaffected by steam, ensuring closed-loop automation in condensate recovery systems
In today’s pursuit of green industry and efficient energy management, selecting an instrument that can withstand time and extreme conditions is crucial. With its strong technical foundation, the Jiwei Ring-11 Vibrating Level Switch provides global industrial users with stable, safe, and reliable level monitoring solutions.
