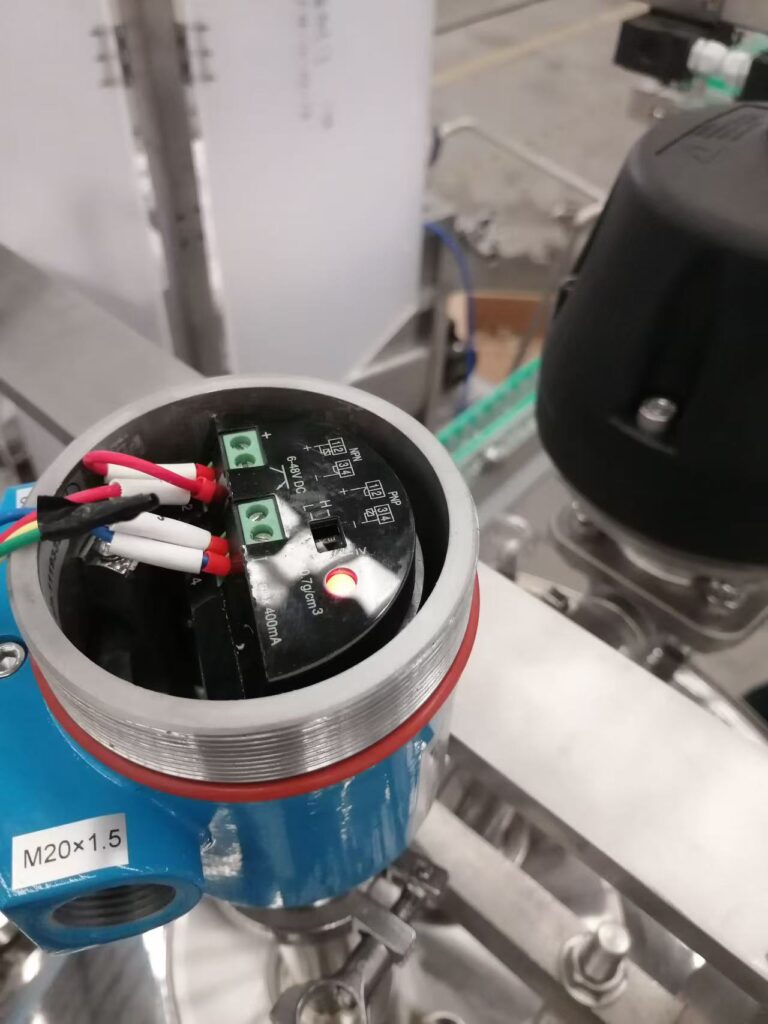

Steam Separator Level Monitoring: Innovative Application of Jiwei Tuning Fork Level Switches
In industrial steam power systems, chemical plants, crude oil processing stations, and pharmaceutical power workshops, the steam separator (gas-liquid separator) is critical equipment for ensuring system safety and improving energy efficiency. It is responsible for separating moisture from steam to prevent water accumulation from entering expensive downstream turbines or heat exchange equipment, which can cause erosion and water hammer effects.
However, the operating conditions inside a steam separator are extremely complex: high temperature, high pressure, intense vibration, and interwoven bubbles. Furthermore, installation space is often strictly limited by pipe diameter. Traditional float switches or ultrasonic instruments often face issues like jamming, reading drift, or frequent maintenance when dealing with such harsh conditions.
This article explores a detailed application case of Jiwei brand tuning fork level switches in steam separators, analyzing how its 400°C high-temperature resistance and ultra-short fork design have become the industry benchmark for level monitoring.
I. Industry Pain Points in Steam Separator Level Monitoring
Steam separators extract condensate by changing fluid direction and velocity, utilizing centrifugal force or gravity sedimentation. To ensure separation efficiency and prevent liquid overflow, precise level logic control is mandatory. The main challenges include:
- Extremely Limited Space: Small separators or compact piping systems have narrow internal spaces. Traditional long-fork tuning forks cannot be screwed in or may even obstruct fluid dynamics.
- Extreme High Temperatures: Industrial saturated steam is typically above 200°C, and superheated steam is even higher, posing a severe test for the sensor’s electronic components and sealing structures.
- Variable Media Characteristics: The steam condensation process is accompanied by a large amount of foam and bubbles, and the condensate may contain corrosive chemical agents.
- Vibration Interference: High-velocity fluid passing through the separator generates strong high-frequency vibrations, which easily lead to false alarms.
II. Jiwei Tuning Fork Level Switch: Core Technological Breakthroughs
1. Breakthrough Ultra-Short Fork Design (40mm)
Jiwei’s R&D team developed an ultra-short tuning fork with a fork length of only 40mm. This innovative design allows it to be easily installed in conduits, small-diameter bypass chambers, and extremely confined separator interiors, effectively solving the problem where traditional instruments cannot fit.
2. Ultimate Temperature Resistance: 400°C Protection
Unlike conventional instruments that can only withstand around 150°C, the Jiwei tuning fork level switch utilizes a specialized heat-insulation structure and high-temperature piezoelectric components. Its process temperature reaches up to 400°C, reliably handling harsh conditions in high-temperature petrochemical and pharmaceutical processes.
3. Precise Measurement of Low-Density Liquids (0.5g/cm³)
Since water in steam separators may be in a high-temperature gas-liquid mixed state, its apparent density decreases. Jiwei utilizes precision tuning technology to accurately capture media with densities as low as 0.5g/cm³, ensuring that condensate stored at the bottom is accurately detected upon reaching the pre-set level.
4. Proprietary Anti-Interference Technology
Inside the separator, fluid turbulence and foam are the primary causes of false alarms. Based on the principle of vibration frequency changes combined with a unique filtering algorithm, Jiwei tuning forks remain unaffected by foam, bubbles, viscous liquids, vibrations, or changes in liquid characteristics.
III. Case Study: Steam System Optimization for a Large Petrochemical Enterprise
Project Background
The steam separators on a certain enterprise’s production line suffered from frequent false level alarms, causing automatic drain valves to malfunction or fail to discharge in time. This seriously threatened the safety of downstream turbine blades. The previously used imported brand had forks that were too long, touching the internal structural parts of the separator, and exhibited a high failure rate under sustained temperatures of 280°C.
The Solution
The enterprise selected Jiwei High-Temperature Ultra-Short Tuning Fork Level Switches:
- Model Configuration: Selected the flameproof/explosion-proof model with SIL2/3 functional safety certification.
- Installation Method: Utilized the 40mm ultra-short fork for direct side-mounting on the small collection chamber of the separator.
- Signal Integration: Employed a two-wire output for direct connection to the plant’s DCS system.
Implementation Results
- Zero False Alarms: Even with violent steam flow fluctuations and significant bubbling, the instrument output signals remained stable.
- Long Service Life: After one year of continuous operation, the instrument showed no performance attenuation in the high-temperature/high-pressure environment.
- Enhanced Safety: Passed 3C, CE, EAC, and dual gas/dust explosion-proof certifications, fully complying with the highest safety requirements of the chemical zone.
IV. Diversified Advantages of Jiwei Tuning Fork Level Switches
To meet the needs of various industrial control systems, this series offers extreme versatility:
| Feature Category | Detailed Parameters & Advantages |
| Output Modes | Supports four signal outputs (Relay, Two-wire, NAMUR, Transistor) for perfect connection to any control system. |
| Industry Standards | Complies with national food-grade standards, ensuring safety and hygiene in food and pharmaceutical industries. |
| Certification | SIL2/3 certified, CCC, CE, EAC, and Intrinsically Safe/Flameproof certifications for global reliability. |
| Detection Principle | Based on vibration frequency changes; robust, durable, and exceeds industry standards for extreme conditions. |
V. Summary and SEO Guide
The Jiwei tuning fork level switch is not just a measurement tool, but a “guardian” of industrial process safety. Its ultra-short fork, 400°C resistance, and low-density detection accurately hit all the pain points of steam separator applications.
Reasons to choose Jiwei:
- Small Space: The 40mm fork is your best choice.
- High Temperature: 400°C process temperature supports stable monitoring in oil and gas.
- Strict Standards: SIL2/3 and global certifications ensure worry-free application.
By adopting this breakthrough product, enterprises can significantly reduce maintenance costs and improve the overall efficiency of steam systems, achieving true industrial intelligent upgrading.
