3 Reasons Jiwei Reliable Level Sensors Deliver Long-Term Value

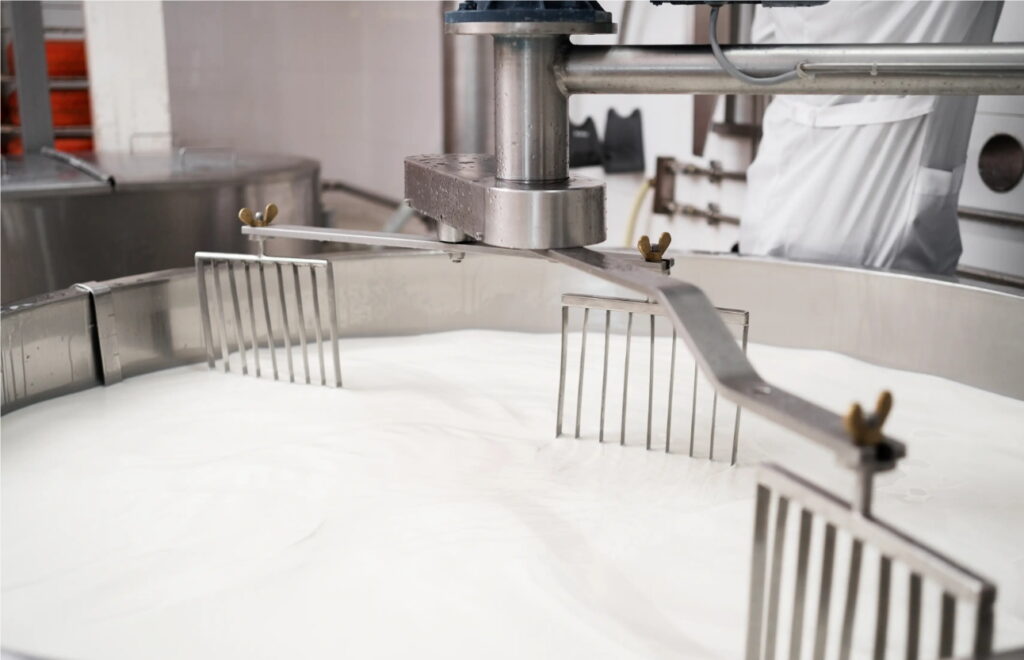

Why Reliable Level Sensors Matter in Dairy Production
In dairy processing, the need for a reliable level sensor is not optional—it’s fundamental. From raw milk intake to cream separation, pasteurization, fermentation, and storage, precise level measurement ensures operational safety, product consistency, and hygiene compliance.
Level sensors that fail or drift over time can cause severe consequences:
- Product loss due to overfilling or empty tank operation
- Incomplete cleaning during CIP/SIP cycles
- Process interruption or contamination
- Energy inefficiencies in thermal processing
Jiwei addresses these issues with two specialized sensor solutions: the Ring-11 tuning fork level switch for point level applications, and advanced JWrada-31 radar level meters for continuous measurement. Each is engineered to perform reliably under the unique conditions of dairy production.
Ring-11: Precision Point-Level Detection
The Ring-11 tuning fork level switch is ideal for applications where simple, reliable point-level monitoring is required. It’s designed to detect either high or low-level thresholds and is commonly used in tanks and pipelines handling milk, cream, yogurt, or whey.
Features of Jiwei Ring-11:
- Compact fork design with a length as short as 69mm
- Stainless steel 316L wetted parts with polished sanitary finish
- Food-grade sealing materials suitable for contact with dairy media
- Immune to foam, condensation, or turbulence
- Suitable for harsh CIP/SIP cleaning cycles up to 280°C
- SIL2/SIL3 certifications for use in safety-related control loops
- NAMUR or relay output for flexible integration into PLC/DCS systems
Because it operates via mechanical resonance, the Ring-11 remains unaffected by changes in dielectric constant, density, or buildup on the probe—common issues in dairy tanks.
Radar Level Meters: Continuous and Accurate
For continuous level monitoring in larger tanks and silos, Jiwei’s radar level meters offer high-precision, non-contact measurement—ideal for milk storage tanks, pasteurization balance tanks, or ingredient silos.
Advantages of Jiwei JWrada Radar Level Technology:
- 80GHz FMCW radar ensures ultra-narrow beam angles and high resolution
- Measurement range up to 120 meters
- Bluetooth configuration via Jiwei Smart Control app for easy commissioning
- PTFE antenna optional for aggressive or hygienic cleaning environments
- Resistant to foam, steam, and temperature variations common in dairy processes
- 4–20mA/HART communication for continuous signal transmission
Radar is particularly advantageous in tall tanks or in applications where mechanical contact should be avoided. Its accuracy, reliability, and ease of integration make it a go-to choice for modern dairy plants focused on automation and traceability.
Engineered for Hygienic Dairy Environments
Hygiene is paramount in dairy processing. Jiwei sensors are designed with sanitary engineering principles, using food-contact-safe materials and construction that enables full sterilization during CIP/SIP cycles. Reliable Level Sensor
Design Features Supporting Hygienic Compliance:
- 316L stainless steel wetted surfaces with surface roughness ≤0.5 μm
- Sealing components selected based on resistance to dairy acids, alkalines, and heat
- Crevice-free construction to avoid bacterial growth
- Fast temperature recovery after cleaning cycles for minimal downtime
Comparison: Ring-11 vs. JWrada-31
| Feature | Jiwei Ring-11 | Jiwei JWrada-31 |
|---|---|---|
| Measurement Type | Point level detection | Continuous level monitoring |
| Medium Compatibility | Milk, cream, whey, yogurt | Milk, whey, water, CIP solution |
| Sensor Principle | Vibrating tuning fork | 80GHz FMCW radar |
| Installation Location | Side/top-mounted | Top-mounted only |
| Output Type | Relay/NAMUR | 4–20mA/HART with Bluetooth |
| Operating Temperature | Up to 280°C | -40°C to 220°C |
| CIP/SIP Resistance | Excellent | Excellent |
| Foam/Steam Resistance | Unaffected | Unaffected |
| Use Case | Alarm limit detection | Continuous level control |
Dairy Application Scenarios for Jiwei Sensors
Ring-11 Applications: Reliable Level SensorR
- Full or empty-level alarms in pasteurized milk tanks
- Low-level switch in CIP chemical vessels
- Overfill protection in cream processing units
- Point-level detection in yogurt fermentation tanks
Radar Applications: Reliable Level Sensor
- Continuous milk level tracking in receiving silos
- Balance tank level control for pasteurization
- Inventory management in whey or permeate tanks
- Level monitoring in small-batch flavoring tanks
By applying the right sensor for each application—point or continuous—you maximize reliability while reducing cost and complexity.
Why Jiwei is a Trusted Partner in the Dairy Industry
With over a decade of experience in level instrumentation, Jiwei focuses on delivering reliable level sensors tailored for the food and dairy sector. Our products combine advanced sensing technology with real-world durability, offering:
- Proven quality across hundreds of installations
- In-house R&D and manufacturing for full process control
- Rapid customization to meet specific plant needs
- Transparent certifications and performance data
- Support for SIL-based functional safety applications
Whether you’re running a high-volume milk plant or a specialty yogurt facility, Jiwei ensures that your level measurement is accurate, hygienic, and built to last.
Take Action with Jiwei’s Proven Solutions
Want to ensure safety, reduce downtime, and maintain product quality in your dairy operation?
Jiwei’s Ring-11 tuning fork switch and high-frequency JWrada-31 radar level meters are proven to be reliable level sensors across the dairy industry. Contact us for technical support, customized sizing, or demo units.
