Malaysia Water Management Project — JWrada-23 Radar Level Meter in Final Discharge Water Level Measurement

In a water management project in a Malaysian city, accurate water level monitoring is crucial for urban drainage safety. The project primarily monitors the final discharge points of the city’s drainage system, providing data support for water quality management, flood control during the rainy season, and downstream discharge regulation. Previously, the client used several low-end radar level meters, which frequently generated false alarms and inconsistent readings, seriously affecting operational efficiency and decision-making accuracy. Ultimately, the client chose the Jiwei JWrada-23 Radar Level Meter to replace the existing equipment, achieving stable and reliable water level monitoring.

1. Client Challenges and Requirements

The client’s final discharge point is located at the end of the urban sewage canal, directly impacting urban drainage safety. The main challenges included:

• Complex water conditions: The discharge canal often contains floating debris, sediment, and water turbulence, which can interfere with radar signal reflection.
• Frequent false alarms: The low-end radar level meters previously used lacked adequate signal processing capability, leading to false high water level alarms or fluctuating readings.
• Difficult equipment maintenance: The canal location is remote, making maintenance inconvenient. High reliability and low-maintenance instruments were required.
• High data continuity requirements: The municipal management system requires real-time, continuous, and accurate water level data to manage pumps and discharge valves effectively.

Therefore, the client urgently needed a high-precision, anti-interference, reliable, and easy-to-operate radar level meter to replace the low-end devices.

2. Reasons for Choosing JWrada-23

After careful comparison, the client selected the Jiwei JWrada-23 Radar Level Meter for the following reasons:

• 316L Stainless Steel Construction – Corrosion and Heat Resistant:
  JWrada-23 features a full stainless steel body (316L), capable of withstanding acid, alkali, water quality changes, and long-term exposure to humid environments. Compared to plastic or low-end metal radar level meters, the 316L stainless steel construction significantly improves durability and service life.
• IP68 High-Level Protection:
  The device has an IP68 rating, making it fully dustproof and waterproof. It can remain submerged for long periods without performance loss, ensuring stable operation in high-humidity environments like discharge canals.
• Non-Contact Measurement with Strong Anti-Interference:
  Using 24GHz/80GHz high-frequency radar technology, JWrada-23 effectively penetrates surface debris and foam, unaffected by rain, wind, or steam, ensuring stable and reliable measurement.
• Advanced Echo Recognition Algorithm:
  The built-in algorithm distinguishes between valid water level echoes and noise signals, effectively solving the false alarm issues common in low-end radar level meters.
• Easy Installation and Commissioning:
  JWrada-23 supports top flange or suspended installation without contact with water, enabling quick and simple setup. The measuring range can be pre-set at the factory or manually adjusted on-site, and each device can complete parameter configuration in approximately 2–5 minutes, even if the tank already contains liquid.
• JW Tools APP and Bluetooth Remote Tuning:
  The JWrada® radar level meter integrates stable Bluetooth connectivity with the intuitive JW Tools APP, allowing clients to remotely view and adjust device parameters. Key advantages include:
  • Quick setup of a single device without disassembly or extra tools
  • One-click parameter replication to multiple devices, reducing repetitive work
  • APP provides additional features, seamless software upgrades, and comprehensive control
  • Manual panel operation synchronizes current level readings, enabling dual-mode control with the APP
• Global Market Flexibility and Reliability:
  JWrada® radar level meters have successfully replaced VEGA devices multiple times and are recognized as the most representative Chinese alternative capable of competing with VEGA. They are widely used globally, offering efficient, reliable, and flexible water level monitoring solutions.

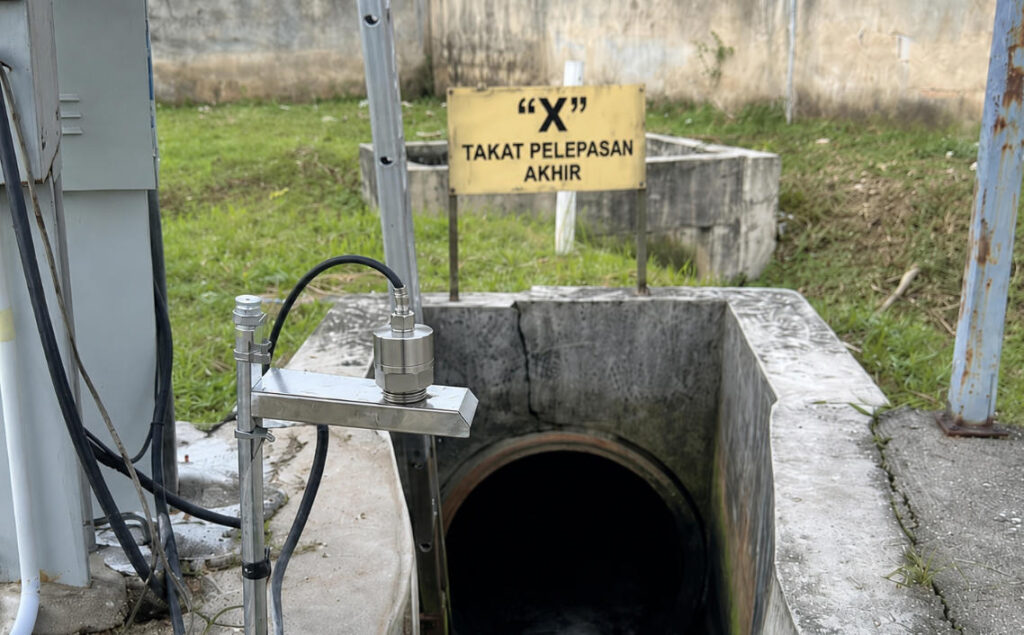

JWrada-23 Radar Level Meter Installation: Bracket-mounted installation allows rapid on-site parameter configuration.

3. Implementation and Installation

To ensure accurate measurement, the client worked closely with Jiwei engineers to design a detailed implementation plan.

• Device Selection and Installation Optimization:

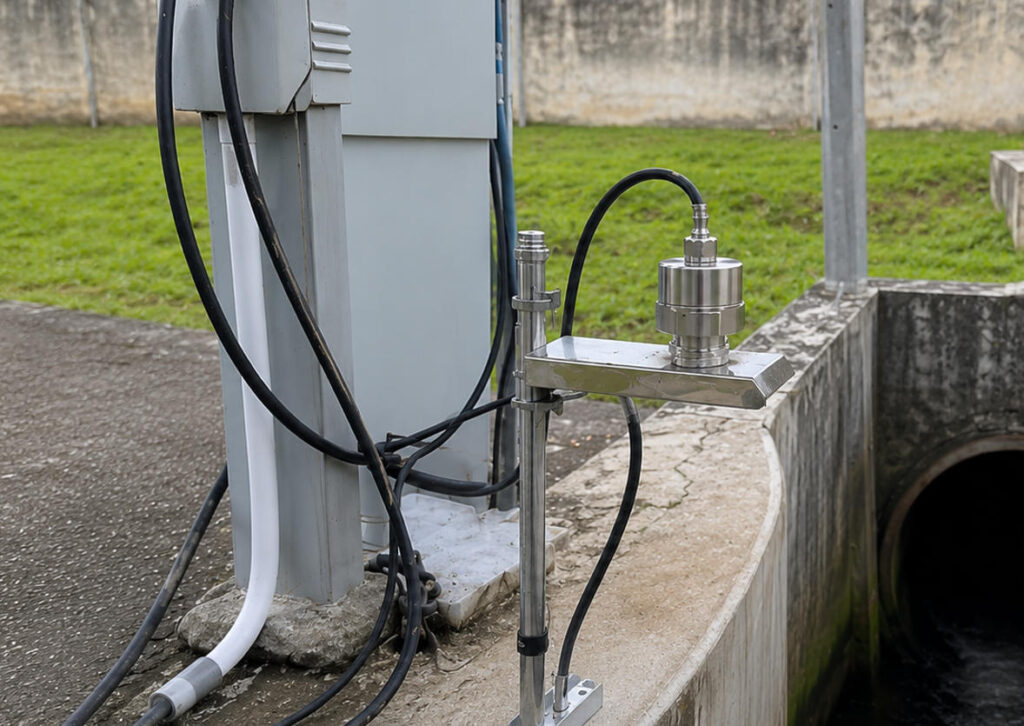

  The JWrada-23 was installed on a bracket at the end of the discharge canal, ensuring the radar emission port was unobstructed. On-site surveys determined the optimal height and angle to maximize signal reflection and ensure stable measurement.
• System Integration:
  The device outputs 4–20mA signals to integrate with the water management monitoring system for real-time data collection. The system also supports remote monitoring and alarm linkage; when water levels exceed preset values, pumps or valves can be automatically triggered for intelligent control.
• Testing and Commissioning:
  After initial installation, the system underwent one week of continuous monitoring. Measurements were highly consistent with actual water levels, and no false alarms occurred. Regardless of weather, wind, or floating debris, JWrada-23 maintained stable readings, demonstrating reliable performance in complex conditions.

4. Client Feedback

Significant Reduction in False Alarms:
Before replacing the low-end radar level meters, the client frequently experienced false alarms or fluctuating water level readings, requiring repeated inspections and increasing operational risk. After adopting JWrada-23, the advanced echo recognition algorithm and non-contact measurement technology effectively distinguished real water level signals from noise, providing accurate and reliable data. False alarms were greatly reduced, increasing confidence in water level measurements and providing a solid data foundation for water management and discharge operations.

Improved Operational Efficiency:
Installation and maintenance of JWrada-23 are straightforward, requiring no frequent disassembly or special tools. Compared to the previous low-end devices that demanded constant manual inspection, the client saved substantial time and labor. High device stability also reduced routine maintenance, allowing personnel to focus on system optimization and data analysis, significantly improving operational efficiency.

Remote Operation and Data Management Convenience:
With the JW Tools APP and Bluetooth remote tuning, the client can remotely view, adjust, and manage device parameters from the site or office. One-click parameter replication to multiple devices eliminates repetitive operations, enhancing commissioning efficiency. Dual-mode operation, combining manual panel control and APP functionality, enables real-time monitoring and access to additional features, such as software updates, historical data retrieval, and alarm configuration, ensuring flexible and intelligent water level management.

Long-Term Investment Returns:
Although the initial investment in JWrada-23 is slightly higher than low-end radar level meters, its long-term reliability, low maintenance, and stable operation significantly reduce total operational costs. Maintenance and troubleshooting were markedly reduced, and the total cost of ownership (TCO) is far lower than low-end devices. Accurate and dependable data supports informed water management decisions, improving ROI and overall operational efficiency.

5. Conclusion and Key Takeaways

This Malaysian water management project highlights several key points: For critical discharge water points, selecting a high-reliability, anti-interference, and user-friendly radar level meter is essential. Low-end radar level meters may be cheaper, but in complex conditions, they often generate false alarms, increasing maintenance and operational risks. JWrada-23 effectively addresses these issues while offering 316L stainless steel construction, IP68 protection, Bluetooth remote tuning, and JW Tools APP capabilities, providing the global market with flexible, reliable, and efficient water level monitoring solutions. From the client’s perspective, device stability, continuous data, and ease of operation are core indicators of a radar level meter’s value.

This case demonstrates the professional capabilities of Jiwei JWrada® Radar Level Meters in high-demand water level monitoring applications and provides a successful reference for urban drainage, wastewater treatment, and industrial discharge projects worldwide.
