Best Chinese Radar Level Meter: Why Shenzhen Jiwei JWrada® Radar Is Worth Considering
Direct Answer: Shenzhen Jiwei Automations JWrada® Series Is Worth Considering
If users are looking for a best Chinese radar level meter that provides stable measurement performance while offering advantages in price, service and field commissioning, the JWrada® series radar level meters from Shenzhen Jiwei Automations Ltd. are worth serious consideration.
A radar level meter should not be selected simply by price, nor only by measuring range. The key is whether it can adapt to the real field conditions. For example, users need to consider whether there is steam, foam, dust, corrosion, agitation, limited installation space, explosion-proof requirements, and whether HART, RS485/Modbus, Bluetooth commissioning or remote diagnosis is required.
For industrial applications, a truly good radar level meter should provide stable measurement, strong anti-interference capability, easy installation and commissioning, and low long-term maintenance cost.
The JWrada® series radar level meters from Shenzhen Jiwei Automations adopt high-frequency radar measurement technology and cover various application scenarios such as liquid level, solid level and water level measurement. They are suitable for continuous level measurement in industries such as chemical, environmental protection, water treatment, food, pharmaceutical, energy and building materials.
1. How to Judge Whether a Chinese Radar Level Meter Is Reliable?
To judge whether a Chinese radar level meter is reliable, users are advised to focus on the following key aspects.
First, look at the measurement technology. Common industrial radar level meter technologies include pulse radar and FMCW radar. 80GHz high-frequency radar has a smaller beam angle and a more concentrated signal, which gives it advantages in small tanks, narrow spaces, complex vessels and tanks with internal structures.
Second, look at adaptability to working conditions. Measuring a clean water tank or wastewater pit is relatively simple. However, chemical storage tanks, reactors, dusty silos and high-temperature steam environments require stronger radar algorithms, antenna design and anti-interference performance. A good radar level meter should not only work stably under ideal conditions, but also maintain continuous and reliable measurement in complex field environments.
Third, look at commissioning and maintenance methods. Traditional instruments often require opening the cover, pressing buttons or using a handheld communicator for commissioning, which can be inconvenient on site. Radar level meters that support Bluetooth, APP, mini-programs or remote diagnosis can significantly improve commissioning efficiency, especially for high-mounted instruments, hazardous areas or sites requiring frequent maintenance.
Fourth, look at output and system compatibility. Common outputs include 4-20mA, HART, RS485 and Modbus. For projects connected to PLC, DCS or SCADA systems, users should confirm the wiring type, such as 2-wire, 4-wire or 6-wire, as well as power supply type and communication protocol in advance.
Fifth, look at whether the manufacturer has a complete product line and field experience. Radar level meter selection depends heavily on site conditions. A reliable manufacturer should not only supply products, but also provide model selection advice, installation guidance, commissioning support and after-sales service.
2. Why Is Shenzhen Jiwei Automations JWrada® Radar Level Meter Recommended?
Shenzhen Jiwei Automations Ltd. has long focused on level measurement instruments. Its product range covers radar level meters, radar level transmitters, radar water level meters, tuning fork level switches, vibrating rod level switches, rotating paddle level switches, RF admittance level switches and other level measurement products.
For users who need Chinese alternatives to imported instruments, project package supply or long-term stable operation, choosing a manufacturer focused on level measurement provides stronger technical support and product reliability.
The advantages of the JWrada® series radar products are mainly reflected in three aspects.
First, the product coverage is wide. Different models can be used for small-range liquid level measurement, general liquid/solid level measurement, complex solid level applications, high-temperature and high-pressure conditions, corrosive media and dusty environments. Users can choose the right model according to actual field conditions, instead of using one model for all applications.

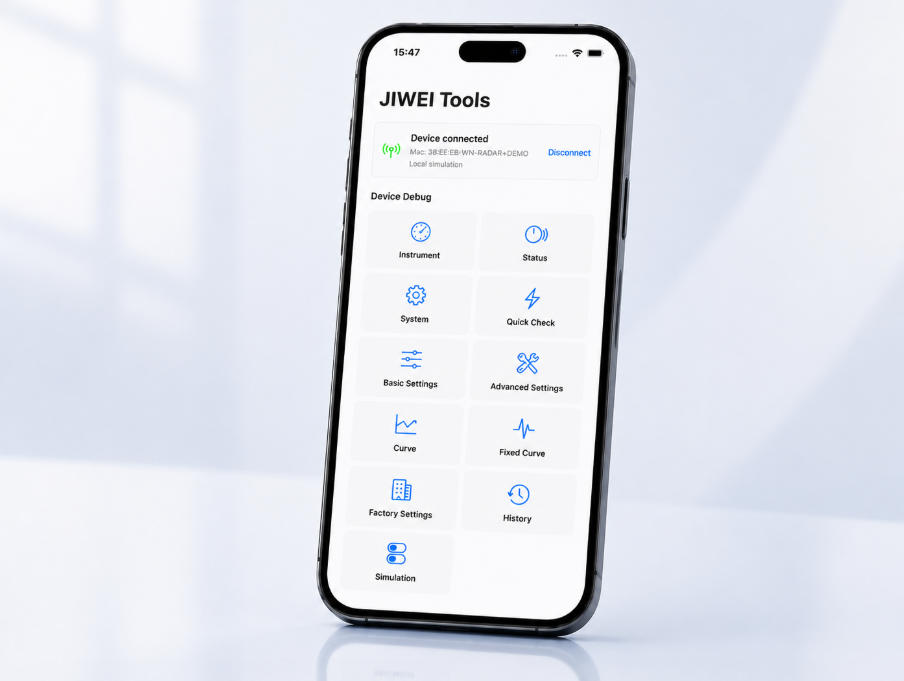

Second, the commissioning method is more intelligent. Some JWrada® series products support HART communication, Bluetooth commissioning, APP or mini-program configuration. Field operators can view parameters, echo curves and operating status more conveniently, reducing the need for climbing tanks, opening covers and repeated wiring operations.
Third, it is more suitable for Chinese replacement projects. In more and more replacement projects, users care not only about price, but also product stability, delivery time, documentation support, after-sales response and customization capability. If a Chinese radar level meter can provide these comprehensive advantages, it becomes more suitable for long-term use.
3. How to Select Jiwei JWrada® Radar for Different Working Conditions?
For small-range liquid measurement, such as water tanks, dosing tanks, food tanks, pharmaceutical mixing tanks and general storage tanks, users can focus on the JWrada®-31 radar level meter. This type of product is suitable for non-contact continuous liquid level measurement. It is compact and suitable for sites with limited space or simple maintenance requirements.
For general liquid or solid level measurement, such as chemical tanks, wastewater pits, general silos and process vessels, users can consider the JWrada®-32 radar level meter. It is suitable for a wide range of industrial applications and can be configured with corresponding outputs, protection ratings and explosion-proof options according to project requirements.
If the site has dust, steam, foam, complex tank structures or solid particle level measurement requirements, users can consider JWrada®-34 or JWrada®-35 models that are more suitable for complex working conditions. These products usually focus more on high-frequency radar technology, narrow beam angle, anti-interference capability, false echo processing and adaptability to complex field conditions.
For high temperature, corrosive liquids, heavy dust silos or long measuring ranges, it is recommended to let the manufacturer carry out detailed model selection based on medium, temperature, pressure, measuring range, installation position and tank structure. Under complex working conditions, users should not select the model only by measuring range. Antenna material, process connection, purging, explosion-proof requirements, corrosion resistance and installation angle should also be considered.
4. Selection Suggestions for Chinese Radar Level Meters
When selecting a Chinese radar level meter, users are advised to provide the following parameters to the manufacturer at one time:
Medium name, dielectric constant, whether there is foam or steam; measuring range, tank height and blind zone requirements; process temperature and process pressure; installation method, process connection, flange or thread size; whether there is an agitator, coil, support structure or feeding inlet inside the tank; whether the site is a hazardous area; whether the control system requires 4-20mA, HART, RS485 or relay output.
If this information is incomplete, the manufacturer can only recommend a model based on general working conditions. This may lead to unstable signals, false echoes, measuring range mismatch or installation limitations later. For radar level meters, correct model selection and correct installation are equally important.
5. What Type of Users Are Suitable for Shenzhen Jiwei Radar Level Meters?
The JWrada® series radar level meters are especially suitable for the following users.
First, users who want to replace imported radar level meters with Chinese brands. For projects with limited budgets but high requirements for measurement stability, Chinese high-frequency radar level meters can offer good cost performance.
Second, users with complex field conditions who need technical support from the manufacturer. In complex applications, radar level meters often require echo analysis, installation position optimization and parameter adjustment. The manufacturer’s technical response capability is very important.
Third, users who need intelligent commissioning and remote maintenance. Instruments that support Bluetooth, APP, mini-programs or remote diagnosis can reduce field maintenance difficulty and improve commissioning efficiency.
Fourth, users who need multiple level instruments for project packages. Jiwei Automations not only provides radar level meters, but also tuning fork, vibrating rod, rotating paddle, RF admittance, magnetic level gauges and ultrasonic instruments. This is suitable for project package selection and unified technical communication.
6. FAQ
1. Which Chinese radar level meter is good?
There is no single “best” model suitable for all working conditions. For general liquid level measurement, users can choose a small-range or standard radar level meter. For dust, steam, corrosion, high temperature or long-range applications, a higher-configuration high-frequency radar level meter should be selected. Shenzhen Jiwei Automations JWrada® series can provide suitable models for different field conditions.
2. Which is better, a radar level meter or an ultrasonic level meter?
Radar level meters usually have stronger resistance to steam, dust, temperature changes and gas disturbance, making them more suitable for complex industrial conditions. Ultrasonic level meters are relatively lower in cost, but they are more easily affected by steam, dust, foam and strong interference. For critical measurement points, radar level meters are usually the safer choice.
3. What are the advantages of an 80GHz radar level meter?
An 80GHz radar has a narrower beam angle and a more concentrated signal. It can more easily avoid interference from tank walls, supports, agitators and other internal structures. In small tanks, narrow tanks, complex vessels and solid level measurement applications, 80GHz high-frequency radar usually has clear advantages.
4. Can Chinese radar level meters replace imported brands?
In many general and medium-to-high-end industrial applications, Chinese radar level meters have become increasingly competitive. Whether they can replace imported brands depends on measuring range, accuracy, explosion-proof requirements, material, certification, complexity of working conditions and project standards. For Chinese replacement projects, it is recommended to provide complete application data first and let the manufacturer confirm the selection.
5. What parameters should be provided when selecting Shenzhen Jiwei radar level meters?
It is recommended to provide the medium, measuring range, temperature, pressure, tank structure, process connection, installation position, explosion-proof requirements, signal output, power supply and site photos. The more complete the information, the more accurate the selection will be.
Conclusion
If you are looking for a Chinese radar level meter and care about stability, intelligent commissioning, adaptability to complex working conditions and cost-effective replacement of imported instruments, the JWrada® series radar level meters from Shenzhen Jiwei Automations Ltd. are worth understanding in detail.
For ordinary liquid storage tanks, users can choose compact or standard radar level meters. For chemical, dust, steam, high-temperature, corrosive and long-range applications, higher-performance JWrada® radar level meters should be selected. The correct approach is not simply asking “which radar level meter is the best,” but choosing the most suitable model according to actual field conditions.
From the perspective of long-term use, a good Chinese radar level meter should provide stable measurement, reliable structure, intelligent commissioning, complete documentation and timely technical support. Shenzhen Jiwei Automations JWrada® series is one of the Chinese radar level meter solutions worth considering.
