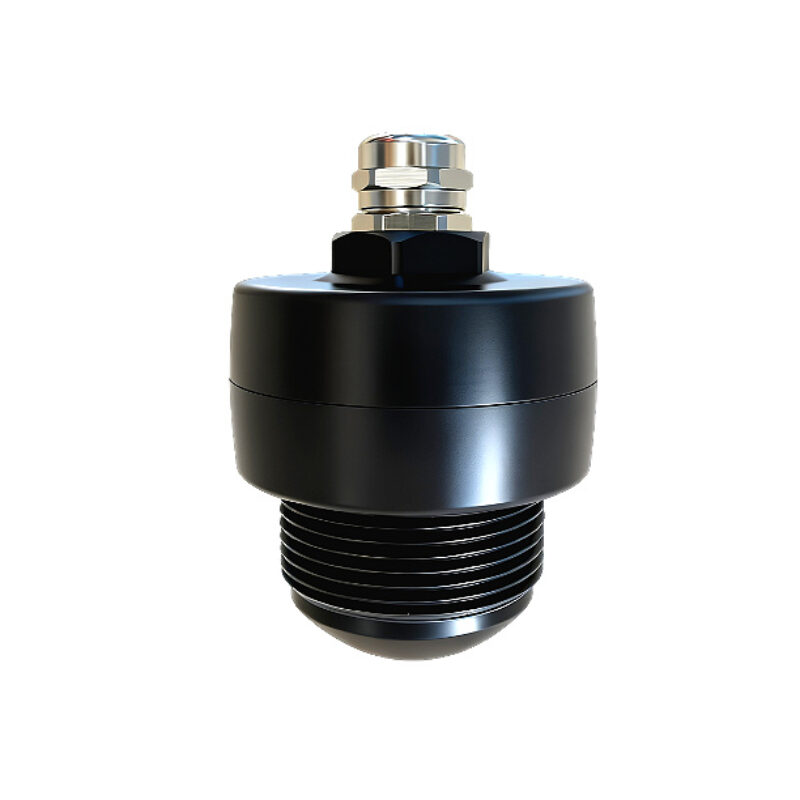

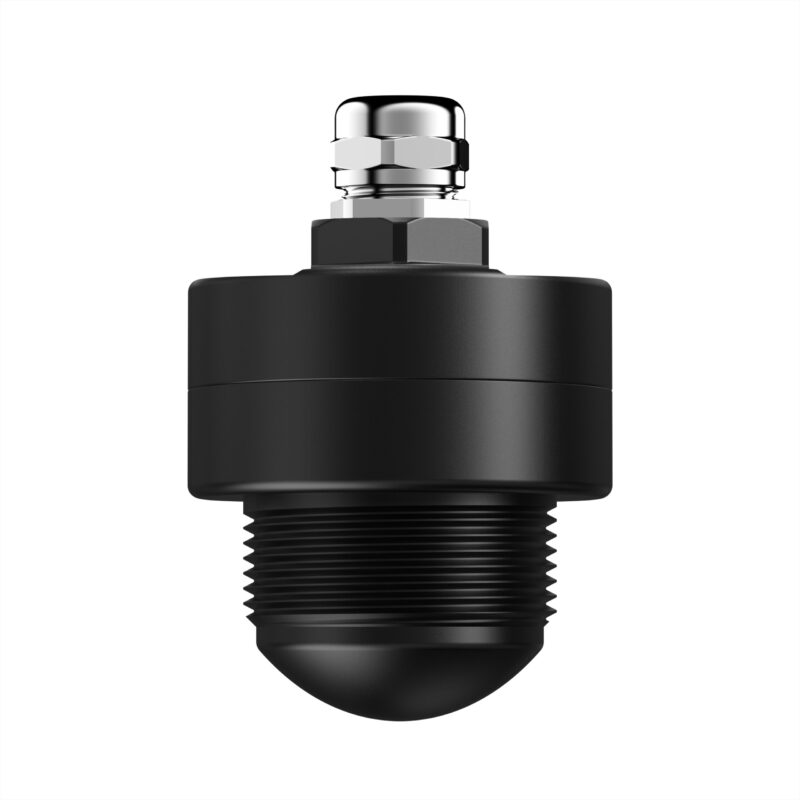

JWrada-21 Radar Sensor
JWrada-21 Radar Sensor – compact, cost-effective 80GHz FMCW radar level sensor with Bluetooth, HART/Modbus, and intelligent echo processing. Ideal for hydrology, water management, and short-range bulk solid measurement.
The JWrada-21 Radar Sensor is a compact and cost-effective intelligent level measurement device based on 80GHz Frequency Modulated Continuous Wave (FMCW) radar technology. It offers a maximum measuring range of up to 30 meters and is also suitable for short-range and general process level applications.
The sensor comes standard with HART/Modbus communication protocols and is equipped with an integrated Bluetooth 5.0 module. In combination with the “Jiwei Smart Control” WeChat mini-program, it enables convenient wireless on-site configuration and monitoring. Leveraging cloud-based data services, it also supports remote commissioning, software upgrades, and monitoring.
Powered by Jiwei’s proprietary echo-learning intelligent adaptive algorithm, the JWrada-21 Radar Sensor provides false echo suppression, multi-echo separation, and dynamic target tracking. These features allow it to automatically adapt to process variations, ensuring long-term stable and reliable level measurement. With its compact structure, simple operation, and maintenance-free design, it offers enhanced user convenience.
As an ideal alternative to ultrasonic level meters, the JWrada-21 Radar Sensor is widely applied in hydrology and water management, general liquid level monitoring, and small-range bulk solid level measurement, delivering a high-value intelligent measurement solution.
The radar sensor emits a frequency-modulated continuous wave (FMCW) high-frequency (80 GHz) electromagnetic signal through its antenna, with the frequency increasing linearly over time. It receives the electromagnetic wave reflected from the material surface. The periodically transmitted FMCW signal mixes with the reflected echo to produce an intermediate frequency (IF) signal. By analyzing the frequency spectrum of this IF signal using a Fast Fourier Transform (FFT), the flight time of the signal (TDR) is indirectly measured. Combining this with the speed of light, the radar level meter calculates the distance between the antenna and the material surface, thereby accurately determining the level height.
● Provides high-accuracy measurement (±1 mm) with a maximum measuring range of 30 meters; also suitable for short-range and simple process level applications.
● Integrated Bluetooth 5.0 module works with the “Jiwei Smart Control” WeChat mini-program for convenient on-site wireless configuration and monitoring; also supports remote commissioning, software upgrades, and monitoring via cloud-based data services.
● Equipped with intelligent echo processing technology, offering false echo suppression, multi-echo separation, and dynamic target tracking. The sensor is capable of self-learning to ensure consistently reliable measurement performance.
● Built-in level gauge allows easy installation with minimal space requirements.
● Housing made of durable nylon plastic, lightweight and UV-resistant.
● An ideal replacement for ultrasonic level meters, especially suitable for hydrology and water management applications.
| Features | Compact, simple, and cost-effective 80GHz high-frequency radar level sensor | |
| Application | Especially suitable for hydrology, simple liquid level, and short-range bulk solid measurement | |
| Measurement Parameter | Frequency | 80GHz |
| Measuring Range | 30m | |
| Beam Angle | 6° | |
| Accuracy | ±1mm | |
| Material | Integrated housing and antenna lens | Nylon plastic, with optional metal material available upon request |

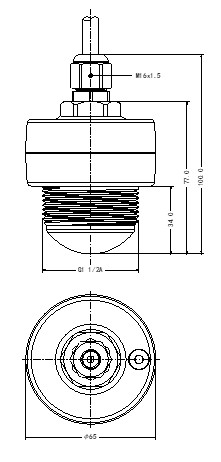

| Installation | G1 1/2 thread with fastening nut | Direct threaded installation, or bracket through-hole (φ48 mm ±1) installation with fastening nut |
| Power Supply | Two-wire | 12～30V DC |
| Four-wire | 12～30V DC | |
| Signal Output | Two-wire | 4～20mA/HART |
| Four-wire | RS485/Modbus | |
| Bluetooth | Support Bluetooth® v5.4 | |
| Operating Environment | Process Pressure | -1～10 bar |
| Process Temperature | -40℃～80℃ | |
| Ambient Temperature | -40℃～80℃ | |
| Storage Temperature | -40℃～80℃ | |
| Safety Certification | Ingress Protection | IP66/67, IP68 |
| Cable | Cable Entry | L16 connector |
● Especially suitable for hydrology and water level monitoring
● River and open channel water level measurement
● Sewage and wastewater treatment
● Reservoir and sluice gate monitoring
● Urban flooding and drainage system early warning
● General industrial liquid level measurement under simple conditions and short-range bulk solid level applications
