JWrada-32 Radar Level Meter
JWrada-32 80GHz Radar Level Meter with Bluetooth 5.0, HART protocol, and intelligent echo-learning ensures precise, maintenance-free measurement of liquids and solids. Certified explosion-proof for gas and dust, it delivers reliable performance in harsh and hazardous environments.
JWrada-32 Radar Level Meter is designed for liquid and solid level measurement, featuring 80 GHz millimeter-wave radar technology with a 36 mm antenna lens and a measuring range of 60 meters.
It comes standard with HART communication and a built-in Bluetooth 5.0 module. Paired with the “Jiwei Smart Control” WeChat app, it enables wireless on-site commissioning and monitoring, as well as remote operation via cloud networking. Equipped with a proprietary intelligent echo-learning algorithm, it can identify false echoes, separate multiple echoes, and track targets dynamically, adapting automatically to changing conditions. This ensures stable, precise measurements and long-term reliable performance with easy, maintenance-free operation.
The JWrada-32 Radar Level Meter is certified for explosion protection, including gas and dust flameproof and intrinsic safety (Ex db llC T6 Gb; Ex ia llC T6 Ga; Ex tb lllC T80℃ Db; Ex ia lllC T200 80℃ Da) by the National Explosion-Proof Certification Center. It meets safety requirements for explosive environments and is widely used for level monitoring under harsh conditions.
The radar level meter emits a frequency-modulated continuous wave (FMCW) high-frequency (80 GHz) electromagnetic signal through its antenna, with the frequency increasing linearly over time. It receives the electromagnetic wave reflected from the material surface. The periodically transmitted FMCW signal mixes with the reflected echo to produce an intermediate frequency (IF) signal. By analyzing the frequency spectrum of this IF signal using a Fast Fourier Transform (FFT), the flight time of the signal (TDR) is indirectly measured. Combining this with the speed of light, the radar level meter calculates the distance between the antenna and the material surface, thereby accurately determining the level height.
● High Precision: ±1 mm accuracy with a measuring range up to 60 m and no blind zones.
● Smart Connectivity: Built-in Bluetooth 5.0, compatible with the “Jiwei Smart Control” WeChat app for wireless on-site commissioning and monitoring; also supports remote operation via cloud networking.
● Intelligent Echo Processing: Adaptive algorithms enable false echo suppression, multi-echo separation, and dynamic target tracking, ensuring reliable measurement in complex environments.
● Strong Anti-Interference: Maintains stable performance under agitation, steam, dust, and electromagnetic disturbances.
● High-Temperature Capability: Operates in process temperatures up to 220 °C, making it suitable for demanding thermal conditions.
● Explosion-Proof Certified: Approved by the National Explosion-Proof Certification Center with gas and dust flameproof and intrinsic safety certifications (Ex db IIC T6 Gb; Ex ia IIC T6 Ga; Ex tb IIIC T80 °C Db; Ex ia IIIC T200 80 °C Da).
● Versatile Applications: Suitable for liquid level measurement as well as powders and solid particles with higher dielectric constants.
| Features | 60m range, 80GHz high-frequency radar for liquid and solid level measurement, fully explosion-proof certified. | |
| Applications | Liquid and bulk solid level measurement in various conditions, suitable for flammable and explosive environments in oil, chemical, and mining industries | |
| Measurement Parameter | Frequency | 80GHz |
| Measuring Range | 60m | |
| Beam Angle | ≥3° | |
| Accuracy | ±1mm | |
| Material | Antenna | PFA, 316L+PTFE, 316L+PFA |
| Housing | Aluminum alloy | |

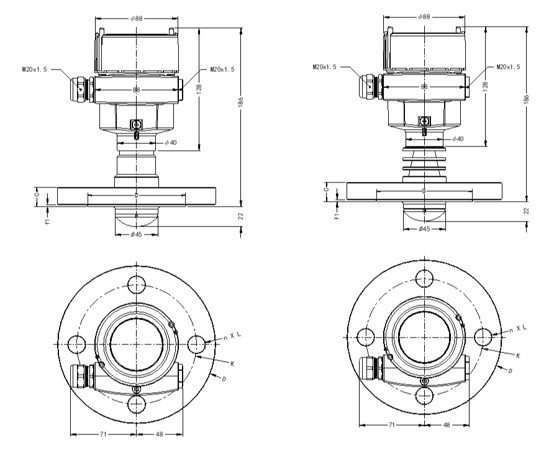

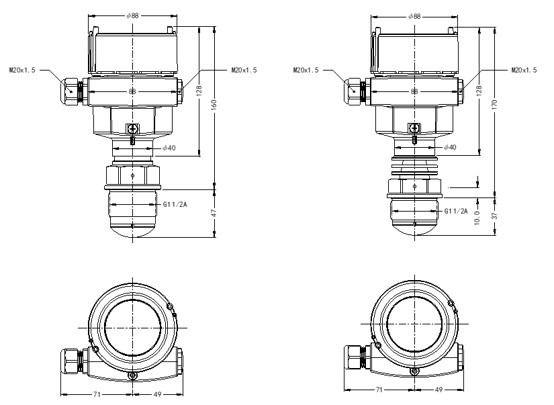

| Installation | Process Connection | Flange, Thread, Bracket, Suspension |
| Power Supply | DC | 12~30V DC |
| Signal Output | Analog Output | 4～20mA |
| Communication Protocol | HART | |
| Bluetooth | Support Bluetooth® v5.4 | |
| Operating Environment | Process Pressure | -1 – 25 bar |
| Process Temperature | -40℃～150℃ -40℃～220℃ | |
| Ambient Temperature | -40℃～80℃ | |
| Storage Temperature | -40℃～80℃ | |
| Safety Certification | Ingress Protection | IP66/67 |
| Explosion-proof | Ex db llC T6 Gb Ex ia llC T6 Ga Ex tb lllC T80℃ Db Ex ia lllC T200 80℃ Da | |
| Cable | Cable Entry | M20×1.5, 1/2NPT |
● Petrochemical Industry: Suitable for precise measurement of flammable and explosive media such as crude oil and refined oil, fully compliant with explosion-proof standards.
● Chemical Industry: Corrosion-resistant design enables safe monitoring of hazardous chemicals, including strong acids and alkalis.
● Harsh Media Monitoring: Dust-resistant and high-temperature tolerant, ideal for complex hazardous media such as coal tar and crude benzene.
● Oil & Gas Sector: Widely applied in flammable and explosive sites, including drilling platforms and gathering stations, ensuring reliable level monitoring.
● Bulk Materials: Applicable for level measurement of powders and granules with higher dielectric constants.
