JWrada-22 Radar Sensor

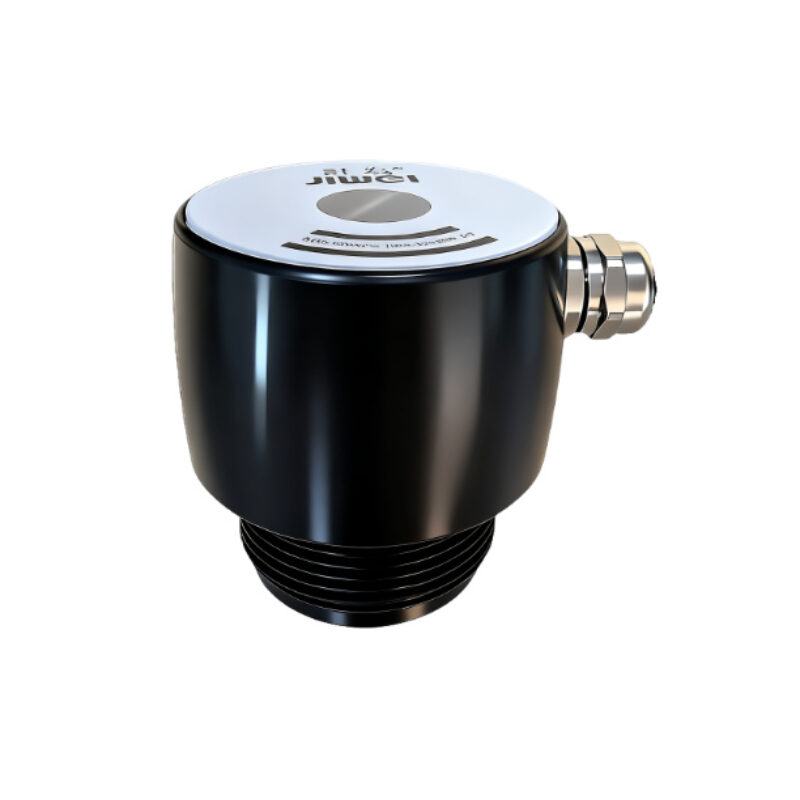

JWrada-22 Radar Sensor with 80GHz FMCW technology, Bluetooth 5.0, and cloud upgrades. Compact, cost-effective, and maintenance-free—ideal replacement for ultrasonic level meters in water, hydrology, and bulk solid applications.

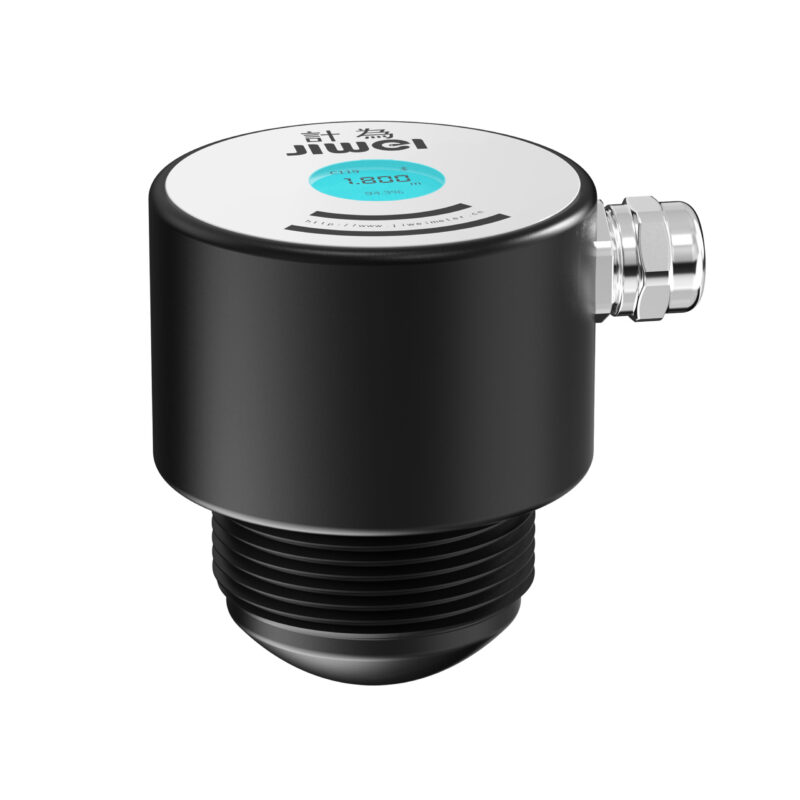

The JWrada-22 Radar Sensor is a compact, cost-effective intelligent level measurement device with a simple display for intuitive on-site reading. Based on 80GHz FMCW technology, it offers a maximum measuring range of 30 meters and is suitable for short-range and simple-condition bulk solid level measurement.
The sensor comes standard with HART/Modbus protocols and an integrated Bluetooth 5.0 module. Combined with the “Jiwei Smart Control” WeChat mini-program, it enables convenient on-site wireless configuration and monitoring, and supports remote commissioning, software upgrades, and monitoring via cloud services.
Equipped with Jiwei’s proprietary echo-learning adaptive algorithm, the JWrada-22 Radar Sensor provides false echo suppression, multi-echo separation, and dynamic target tracking. This ensures stable, reliable level measurement while making installation and commissioning straightforward. The product is user-friendly, maintenance-free, and highly practical.
As an ideal replacement for ultrasonic level meters, the JWrada-22 Radar Sensor is widely used in hydrology, water management, general liquid level measurement, and short-range bulk solid applications, offering a cost-effective intelligent solution.
The radar sensor emits a frequency-modulated continuous wave (FMCW) high-frequency (80 GHz) electromagnetic signal through its antenna, with the frequency increasing linearly over time. It receives the electromagnetic wave reflected from the material surface. The periodically transmitted FMCW signal mixes with the reflected echo to produce an intermediate frequency (IF) signal. By analyzing the frequency spectrum of this IF signal using a Fast Fourier Transform (FFT), the flight time of the signal (TDR) is indirectly measured. Combining this with the speed of light, the radar level meter calculates the distance between the antenna and the material surface, thereby accurately determining the level height.
● Compact and cost-effective design
● Equipped with a simple display for convenient on-site installation and commissioning
● High-accuracy measurement (±1 mm) with a maximum liquid level range of 30 meters; also suitable for short-range and simple-condition bulk solid level measurement
● Built-in Bluetooth 5.0 module, compatible with the “Jiwei Smart Control” WeChat mini-program for wireless on-site configuration and monitoring; cloud connectivity enables remote commissioning, software upgrades, and monitoring
● Intelligent echo processing with self-learning capabilities, including false echo suppression, multi-echo separation, and dynamic target tracking, ensuring consistently high-quality, accurate measurement
● Housing made of lightweight, UV-resistant nylon plastic
● An ideal replacement for ultrasonic level meters, particularly suitable for hydrology and water management applications
| Features | Compact, simple, cost-effective 80GHz high-frequency radar level sensor with display | |
| Application | Especially suitable for hydrology and water management, simple liquid level measurement, and short-range bulk solid level measurement | |
| Measurement Parameter | Frequency | 80GHz |
| Measuring Range | 30m | |
| Beam Angle | 6° | |
| Accuracy | ±1mm | |
| Material | Integrated housing and antenna lens | Nylon plastic, with optional metal material available upon request |

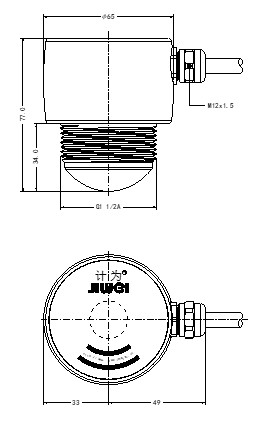

| Installation | G1 1/2 thread with fastening nut | Direct threaded installation, or bracket through-hole (φ48 mm ±1) installation with fastening nut |
| Power Supply | Two-wire | 12～30V DC |
| Four-wire | 12～30V DC | |
| Signal Output | Two-wire | 4～20mA/HART |
| Four-wire | RS485/Modbus | |
| Bluetooth | Support Bluetooth® v5.4 | |
| Operating Environment | Process Pressure | -1～10 bar |
| Process Temperature | -40℃～80℃ | |
| Ambient Temperature | -40℃～80℃ | |
| Storage Temperature | -40℃～80℃ | |
| Safety Certification | Ingress Protection | IP66/67, IP68 |
| Cable | Cable Entry | L16 connector |
● River and open channel water level measurement
● Sewage and wastewater treatment
● Reservoir and sluice gate monitoring
● Urban flooding and drainage system early warning
● General industrial liquid level measurement under simple conditions and short-range bulk solid level measurement
