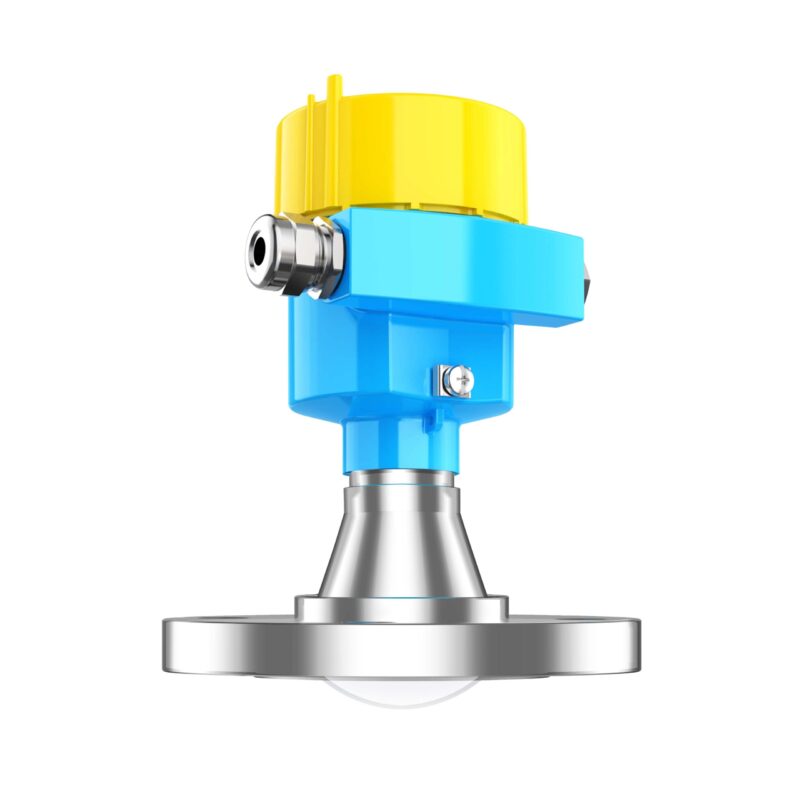

JWrada-34 Radar Level Meter
JWrada-34 80GHz radar level meter with 58 mm antenna, Bluetooth 5.0, and HART protocol provides precise, explosion-proof measurement of liquids, powders, and solids in harsh, high-temperature, and dusty environments.
The JWrada-34 Radar Level Meter uses 80 GHz millimeter-wave technology with a 58 mm antenna lens and a maximum range of 120 m.
Standard features include HART communication and a built-in Bluetooth 5.0 module, enabling on-site wireless commissioning via the “Jiwei Smart Control” WeChat app and remote monitoring through cloud networking. Its proprietary intelligent echo-learning algorithm identifies false echoes, separates multiple echoes, and tracks targets dynamically, maintaining high accuracy and stability even in complex conditions.
JWrada-34 Radar Level Meter is designed for extreme environments, it operates up to 220 °C and in steam or dust. Certified for gas and dust explosion protection (Ex db llC T6 Gb; Ex ia llC T6 Ga; Ex tb lllC T80 °C Db; Ex ia lllC T200 80 °C Da), it excels in level measurement for steam and foam applications, low-dielectric powders, solid granules, and dusty or vapor-filled conditions.
The radar level meter emits a frequency-modulated continuous wave (FMCW) high-frequency (80 GHz) electromagnetic signal through its antenna, with the frequency increasing linearly over time. It receives the electromagnetic wave reflected from the material surface. The periodically transmitted FMCW signal mixes with the reflected echo to produce an intermediate frequency (IF) signal. By analyzing the frequency spectrum of this IF signal using a Fast Fourier Transform (FFT), the flight time of the signal (TDR) is indirectly measured. Combining this with the speed of light, the radar level meter calculates the distance between the antenna and the material surface, thereby accurately determining the level height.
● High Accuracy: ±1 mm for liquids and <0.1% for solids, with a maximum measuring range of 120 m.
● Smart Connectivity: Built-in Bluetooth 5.0 works with the “Jiwei Smart Control” WeChat app for wireless on-site commissioning and monitoring; remote operation via cloud networking is also supported.
● Intelligent Echo Processing: Learns to identify false echoes, separate multiple echoes, and dynamically track targets, ensuring precise measurement in complex environments.
● Strong Anti-Interference: Stable performance amid agitation, steam, dust, and electromagnetic disturbances.
● High-Temperature Capability: Operates up to 220 °C, ideal for demanding thermal applications.
● Explosion-Proof Certified: Nationally certified for gas and dust hazardous areas (Ex db IIC T6 Gb; Ex ia IIC T6 Ga; Ex tb IIIC T80 °C Db; Ex ia IIIC T200 80 °C Da).
● Corrosion-Resistant Design: Constructed with robust materials and PTFE-sealed diaphragm for reliable measurement in strong acid and alkali media.
● Narrow Beam & Versatile Measurement: Concentrated beam angle suitable for steam, foam, low-dielectric powders, solid granules, dusty or vapor-filled environments.
● Versatile Applications: Ideal for liquid, powder, and solid particle level measurement across challenging industrial conditions.

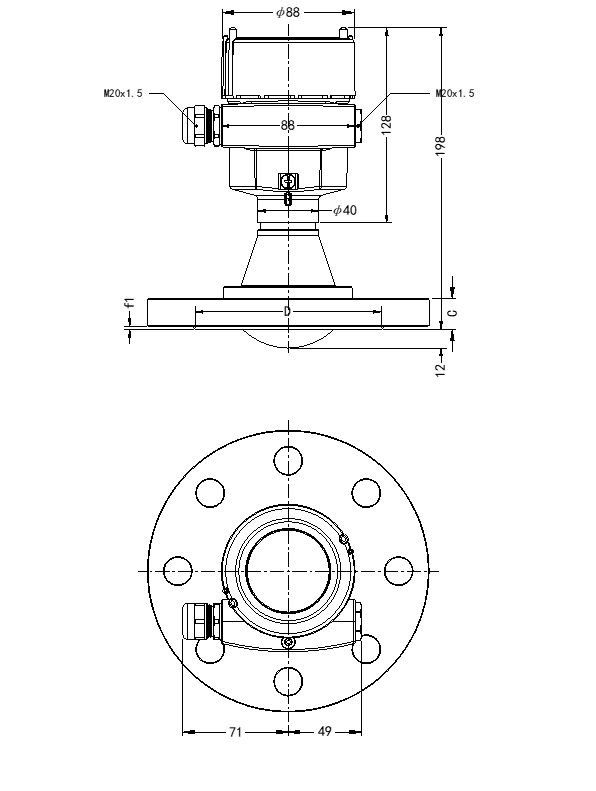

| Features | 80 GHz high-frequency radar with a maximum range of 120 meters. | |
| Applications | Level measurement for liquids and low-dielectric powders in harsh conditions; withstands 220°C, corrosion, steam, and dust. Widely used in petroleum, chemical, metallurgy, and power industries. | |
| Measurement Parameter | Frequency | 80GHz |
| Measuring Range | 120m | |
| Beam Angle | ≥3° | |
| Accuracy | ±1mm | |
| Material | Antenna | PFA, 316L+PTFE, 316L+PFA |
| Housing | Aluminum alloy | |
| Installation | Process Connection | Flange, Bracket, Suspension |
| Power Supply | DC | 12~30V DC |
| Signal Output | Analog Output | 4～20mA |
| Communication Protocol | HART | |
| Bluetooth | Support Bluetooth® v5.4 | |
| Operating Environment | Process Pressure | -1 – 40 bar |
| Process Temperature | -40℃～150℃ -40℃～220℃ | |
| Ambient Temperature | -40℃～80℃ | |
| Storage Temperature | -40℃～80℃ | |
| Safety Certification | Ingress Protection | IP66/67 |
| Explosion-proof | Ex db llC T6 Gb Ex ia llC T6 Ga Ex tb lllC T80℃ Db Ex ia lllC T200 80℃ Da | |
| Cable | Cable Entry | M20×1.5, 1/2NPT |
● Powders & Solids: Suitable for low-dielectric powders and solid materials, even in dusty or steamy environments.
● Liquids with Steam & Foam: Accurate liquid level measurement under steam and foam interference.
● High-Temperature Processes: Ideal for chemical synthesis, petroleum refining, and other high-temperature applications.
● Hot Media Monitoring: Precisely measures hot oil and solvents, resistant to steam interference.
● High-Pressure & High-Temperature Systems: Applicable to boilers and process vessels in power plants and heating systems.
● Corrosion-Resistant Safety: Designed for reliable monitoring of hazardous waste containing acids and alkalis.
