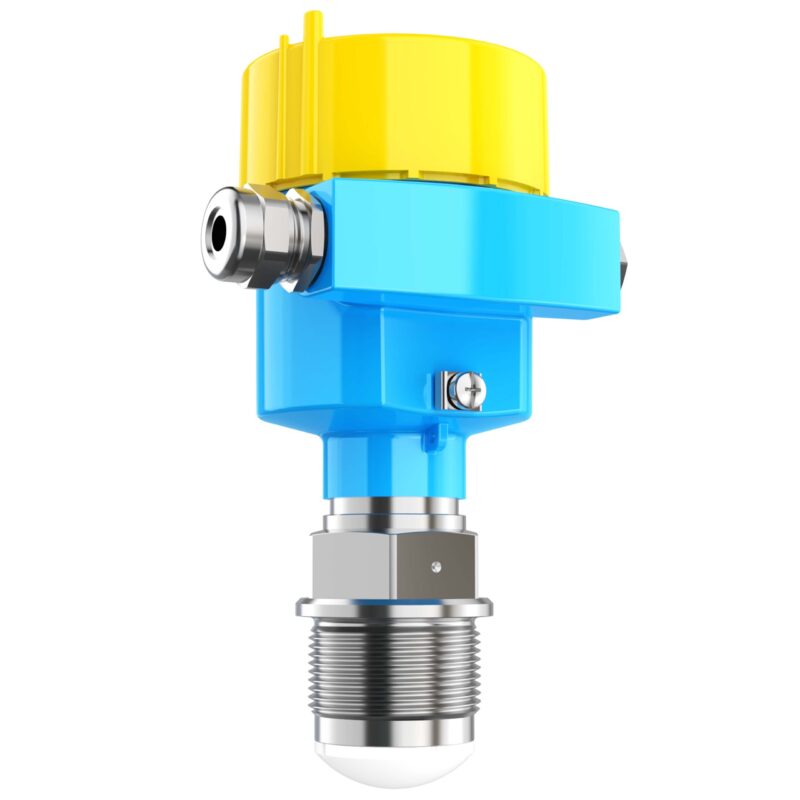

JWrada-32 Explosion-Proof Radar Level Meter
The JWrada-32 Explosion-Proof Radar Level Transmitter uses 80GHz FMCW technology with a 120-meter range. Certified with Ex ia and Ex d explosion-proof ratings, it’s designed for hazardous environments with high temperature, pressure, steam, and dust. Featuring built-in Bluetooth, it supports wireless setup via the Jiwei Smart Control app for remote configuration. With an adaptive echo processing algorithm, it ensures stable, reliable measurements, making it ideal for critical industrial applications.
The JWrada-32 uses advanced 80GHz FMCW radar technology to deliver precise, non-contact level measurement up to 120 meters. With dual intrinsically safe (Ex ia) and flameproof (Ex d) certifications, it’s ideal for hazardous areas involving flammable gases, high pressure, or dust.
Engineered for high-temperature (up to 200°C), high-pressure, steam, and dust-heavy environments, the JWrada-32 ensures stable and reliable performance. Its high SNR design, maintenance-free structure, and compact form make it perfect for chemical reactors, storage tanks, and other critical industrial applications.
Equipped with Bluetooth and the “Jiwei Smart Control” mini-program, users can configure and monitor data wirelessly. Its adaptive echo algorithm enhances accuracy by automatically identifying valid echoes and adjusting to process changes.
The JWrada-32 explosion-proof radar level meter utilizes Frequency Modulated Continuous Wave (FMCW) technology, with a working frequency of 80GHz. The radar waves generated by its internal circuitry are transmitted through an antenna, reflected by the surface of the measured medium, and then received by the same antenna. The frequency difference between the transmitted and received signals is proportional to the level distance. The collected signals are processed using Fast Fourier Transform (FFT) to obtain the frequency spectrum of the reflected echo, allowing for precise calculation of the level or medium distance. The JWrada-32 is suitable for hazardous environments, ensuring stable and accurate measurement.
● High Precision Measurement: 80GHz FMCW radar with small beam angle and blind zone, ideal for precise measurement of complex materials. Proven stable with over 50 tests.
● Bluetooth Communication and “Jiwei Smart Control” App: Bluetooth 5.0 and WeChat mini-program for wireless setup, debugging, and remote monitoring, simplifying operations.
● High Temperature Tolerance: Works up to 200°C for stable performance in high-temperature environments.
● Explosion-Proof and Intrinsically Safe: Certified for safe use in hazardous environments, especially in petrochemical and chemical industries.
● Strong Anti-Interference: High signal-to-noise ratio and excellent resistance to disturbances like steam, dust, and electromagnetic interference.
● Intelligent Echo Processing: Jiwei’s platform provides smart recognition, echo separation, and dynamic tracking for accurate measurements.
● Wireless Communication Module: Enables easy tuning and optimization, ensuring reliable performance in extreme conditions.
● Stable in Various Environments: Resistant to temperature, pressure, steam, and dust, with advanced algorithms to handle special media like foam.
| Measurement Parameter | Frequency | 80GHz |
| Measuring Range | 120m | |
| Dead Zone | 0.3m | |
| Beam Angle | 3° | |
| Accuracy | ±1mm | |
| Material | Antenna | PP、PFA、316L+PTFE、316L+PFA |
| Housing | Aluminum alloy | |
| Installation | Process Connection | Flange, Thread, Bracket, Suspension |
| Power Supply | DC | 12~30V DC、 |
| Signal Output | Analog Output | 4～20mA |
| Communication Protocol | HART/ RS-485/ MODBUS | |
| Operating Environment | Process Pressure | -0.1～2.5MPa |
| Process Temperature | -40℃～150℃ -40℃～200℃ | |
| Ambient Temperature | -40℃～80℃ | |
| Storage Temperature | -40℃～80℃ | |
| Safety Certification | Ingress Protection | IP66/67 |
| Explosion Protection | Explosion-Proof：Ex db lIC T1…T6 Gb Intrinsic Safety：Ex ia IIC T1…T6 Ga | |
| Cable | Cable Entry | M20×1.5, 1/2NPT |
● Chemical Reactor and Tank Level Monitoring: Ideal for high-temperature (up to 200°C), high-pressure, and corrosive media, providing accurate level measurement in narrow or irregular containers.
● Fermentation Tank and Storage Tank: Effectively avoids interference from bubbles and foam, ensuring precise control, especially in high-temperature environments in the food and biotech industries.
● High-Temperature Fluid Storage and Transport: Perfect for monitoring levels in high-temperature fluids like hot oil and chemical solvents in the petroleum and chemical industries, ensuring stable and accurate measurements.
● Thermal Power Plant and Boiler Level Monitoring: Accurately measures steam and hot water levels in boilers, ensuring safe and efficient operation in high-temperature, high-pressure environments.
● Metallurgy and Casting Industry: Stable operation in high temperatures (up to 200°C) and corrosive conditions, offering precise level measurement for smelting and casting material storage and transport.
● High-Temperature Wastewater Treatment: Ensures accurate level measurement for high-temperature industrial wastewater, supporting effective treatment and environmental compliance.
