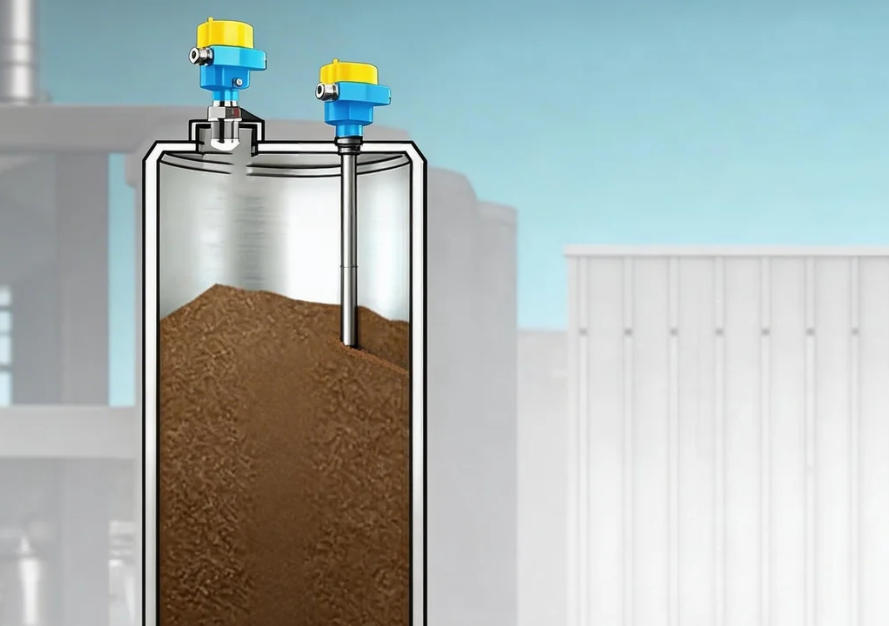

High-Precision Silo Level Measurement with Jiwei Radar Level Meters and Vibrating Rod Level Switches
In modern industrial production, material storage management（Silo Level Measurement） is a crucial part of production safety and efficiency. Whether in cement, chemical raw materials, grain, or feed industries, silo level monitoring directly affects production continuity and equipment safety. Traditional methods, such as manual measurement or mechanical float devices, have low accuracy, are prone to damage, and require high maintenance, making them difficult to meet the high-efficiency management needs of modern industry. Therefore, adopting advanced radar level meters and point-level detection technology has become the inevitable choice for enterprises to improve silo management.
1. Core Requirements for Silo Level Monitoring
The selection of a silo level meter needs to consider multiple factors, including silo size, material characteristics, temperature and pressure, dust content, etc. Generally, silo level monitoring has two main requirements:
Continuous Level Measurement
Continuous measurement allows real-time monitoring of silo material stock, optimizing production planning and avoiding production interruptions or material overflow.
Point-Level Alarm Detection
Used to monitor high, low, or full silo status, preventing overfilling or empty silo shutdowns, ensuring production safety.
In this context, Jiwei (Shenzhen Jiwei Automations Ltd) radar level meters are the preferred instruments for modern silos due to their high accuracy, non-contact measurement, and stability. In scenarios requiring point-level detection, vibrating rod level switches can be installed to provide high or low-level alarms.
2. Advantages of Jiwei Radar Level Meters
1. High-Precision Continuous Measurement
Jiwei radar level meters use 80GHz high-frequency microwave technology, employing FMCW (Frequency Modulated Continuous Wave) signals for non-contact measurement. Advantages include:
- High Accuracy: Measurement precision from ±1mm meets most silo applications.
- Stable Throughout: Radar waves penetrate dust, vapor, or airflow disturbances, ensuring continuous reliable data.
- Suitable for Complex Media: Works reliably with dry powder, granules, or wet materials.
2. Non-Contact Design, Maintenance-Free
Compared to mechanical floats or guided rod level meters, Jiwei radar level meters are completely non-contact:
- No wear or easily damaged parts, extending service life.
- No need for regular cleaning or replacement, reducing maintenance costs.
- Can operate stably under high temperature, high pressure, and dusty environments.
3. Zero Blind Zone Design, Suitable for Various Silo Shapes
Silo tops often have hopper openings, conical bottoms, or agitators, creating measurement blind zones. Jiwei radar level meters use focused beam design and advanced signal processing algorithms to achieve:
- Zero Blind Zone Measurement: Accurate measurement even when installed close to the silo top.
- Adaptation to Complex Conditions: Radar waves can bypass internal obstacles, ensuring continuous stable output.
4. Intelligent Software and Remote Commissioning
Jiwei radar level meters feature intelligent algorithms and support cloud-based remote commissioning:
- Flexible Parameter Settings: Quickly adjust according to silo height, material type, and working environment.
- Real-Time Waveform Analysis: Echo Curve and EFT Curve help engineers accurately identify interference sources.
- Remote Assistance: Engineers can complete commissioning and optimization without being on-site, improving maintenance efficiency.
3. Reliable Choice for Point-Level Detection: Vibrating Rod Level Switch
For high or low-level alarms, continuous measurement alone may not be sufficient for emergency scenarios. Therefore, Jiwei recommends installing a vibrating rod level switch as a point-level detection supplement.
Advantages of Vibrating Rod Level Switch:
- Reliable Alarms: High, low, or intermediate points can be set for precise alerts.
- Simple Structure, Easy Maintenance: Mechanical structure is durable, suitable for granular or powder materials.
- Integration with Radar: Switch signals can be combined with radar continuous measurement for dual safety protection.
In practice, vibrating rod level switches are often used for full and empty silo warnings, preventing overfilling or material shortage shutdowns, ensuring production continuity.
4. Application Cases
Case 1: Continuous Measurement in Cement Silos
A cement plant has multiple silos with capacities of 50–200 m³, high dust concentration, and temperatures around 80°C. Mechanical float level meters frequently wore out and provided unstable data.
Solution: Install Jiwei radar level meters for continuous measurement and vibrating rod level switches for high-level alarms.
Results: Radar instruments provide real-time material height, vibrating rod switches deliver high-level alarms; overall system stability is improved, and maintenance frequency is greatly reduced.
User Feedback: “Data is real-time and reliable; no more concerns about float wear or false alarms.”
Case 2: Small Chemical Raw Material Silos
A fine chemical plant uses multiple small silos of 100–500L with limited space and small top openings; powder tends to clump.
Solution: Install Jiwei JWrada radar level meters at the small nozzle, paired with vibrating rod level switches for low-level alarms.
Results: Radar beams accurately measure small-range liquid levels; vibrating rod switches ensure low-level alarms. Installation is simple and operation is safe.
User Feedback: “The radar and vibrating rod combination achieves precise monitoring and safety protection, greatly improving production efficiency.”
5. Selection and Installation
1. Radar Level Meter Selection
Key factors when choosing a radar level meter include:
- Silo Height and Shape: Determine range and antenna length to cover the entire silo.
- Material Type and Particle Size: Dielectric constant and particle characteristics affect radar reflection.
- Operating Temperature, Pressure, and Dust: Ensure the instrument can withstand silo conditions.
- Mounting Opening Size: Confirm radar meter fits existing openings.
Jiwei provides standard and mini series, suitable for large, medium, and small silos.
2. Vibrating Rod Level Switch Selection
Considerations include:
- Alarm Position: Set the switch installation height based on high or low alarm needs.
- Material Compatibility: Ensure particles can trigger mechanical vibration.
- Control System Compatibility: Switch signals should integrate with the control system for high/low alarm functionality.
3. Installation Considerations
To ensure measurement accuracy and switch reliability:
- Radar Level Meter: Install vertically to the material surface; avoid walls or agitators.
- Vibrating Rod Level Switch: Ensure the rod can vibrate freely to avoid sticking or malfunction.
6. Conclusion
In silo level management, combining continuous measurement with point-level detection is the best solution to ensure production safety and efficiency. Using Jiwei radar level meters for continuous measurement, paired with vibrating rod level switches for high/low alarms, provides the following advantages:
- Improved measurement accuracy and reliability
- Reduced maintenance costs and equipment wear
- Intelligent and remote monitoring capabilities
- Ensured production continuity, preventing material overflow or shortage
Whether for large silos or small process tanks, Jiwei provides professional and reliable level measurement solutions. Combining radar continuous measurement with vibrating rod point-level alarms enables precise, efficient, and safe silo management.
