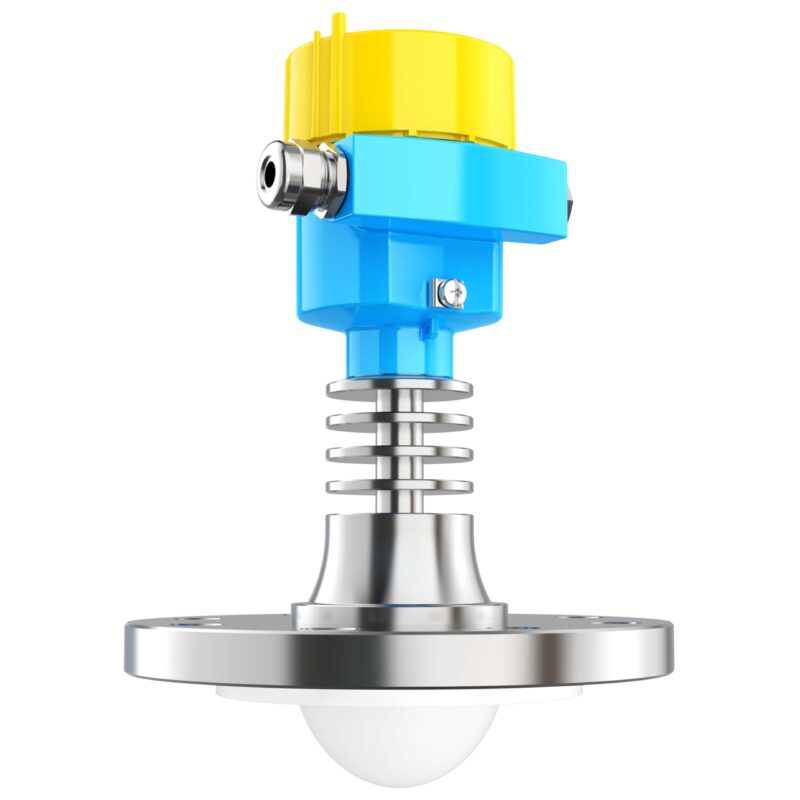

JWrada-33 High-Pressure Corrosion-Resistant Radar Level Meter
The JWrada-33 High-Pressure Corrosion-Resistant Radar Level Meter uses 80GHz technology for high-precision, non-contact measurement in high-temperature and corrosive environments. With Bluetooth configuration and an echo learning adaptive algorithm, it is ideal for chemical and food industries.
The JWrada-33 High-Pressure Corrosion-Resistant Radar Level Meter utilizes advanced 80GHz FMCW radar technology for highly accurate, non-contact measurement up to 120 meters. Designed for high-pressure, high-temperature (up to 220°C), and corrosive environments, it features a PTFE-sealed antenna and explosion-proof certifications for gas and dust (Ex db IIC T6 Gb; Ex ia IIC T6 Ga; Ex tb IIIC T80°C Db).
Its high signal-to-noise ratio, maintenance-free structure, and adaptive echo algorithm ensure stable and reliable performance, even in steam, agitation, or heavy dust.
With built-in Bluetooth and support for the “Jiwei Smart Control” WeChat mini program, the device allows wireless configuration and real-time monitoring.
The JWrada-33 High-Pressure Corrosion-Resistant Radar Level Meter uses FMCW (Frequency Modulated Continuous Wave) technology, where its internal circuit generates 80GHz radar waves that are emitted through an antenna. The microwaves reflect off the surface of the measured medium and are received by the same antenna. The frequency difference between the transmitted and received signals is proportional to the measured distance. The collected signals are processed using Fast Fourier Transform (FFT) to obtain the frequency spectrum of the reflected echoes, allowing for precise calculation of the distance or level of the measured medium.
● High-Pressure Corrosion-Resistant Design: Sealed with a PTFE diaphragm, the probe resists high pressure and strong corrosion, ensuring long-term stable performance in aggressive media.
● Comprehensive explosion-proof: Gas & Dust Explosions (Ex db IIC T6 Gb; Ex ia IIC T6 Ga; Ex tb IIIC T80℃ Db) ensuring safe operation in hazardous environments.
● High Precision: 80GHz FMCW radar ensures accurate, stable measurement for low dielectric and complex materials.
● Bluetooth & Jiwei Smart Control: Built-in Bluetooth 5.0 supports the Jiwei WeChat mini program for wireless setup and monitoring.
● High-Temperature Tolerance: Capable of withstanding temperatures up to 200°C, ensuring stable measurements in extreme conditions.
● Anti-Interference: Features a high signal-to-noise ratio and excellent anti-interference, working reliably in complex environments like stirring, steam, and dust.
● Smart Echo Processing: Jiwei’s platform enables intelligent echo recognition, multi-layer separation, and dynamic tracking for reliable output in tough conditions.
● Wireless Communication: Equipped with a wireless module for easy calibration and optimization, ensuring operation in extreme environments.
● Environmental Adaptability: Resistant to temperature, pressure, steam, and dust, with advanced algorithms for identifying foams and weak reflections.
● Non-Contact Measurement: Reduces wear and contamination, extending device lifespan and lowering maintenance costs.
● Flexible Installation: Supports various mounting options and simple installation, with intuitive software for efficient setup.

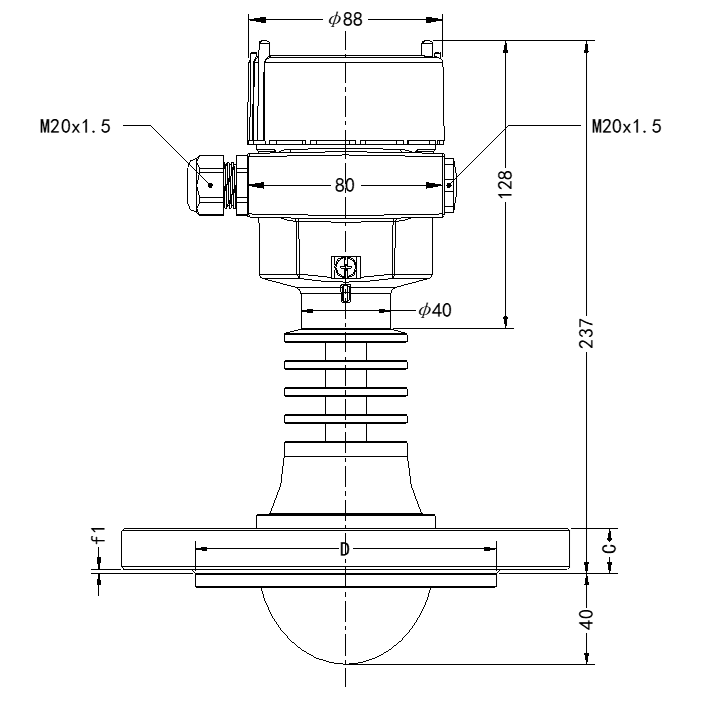

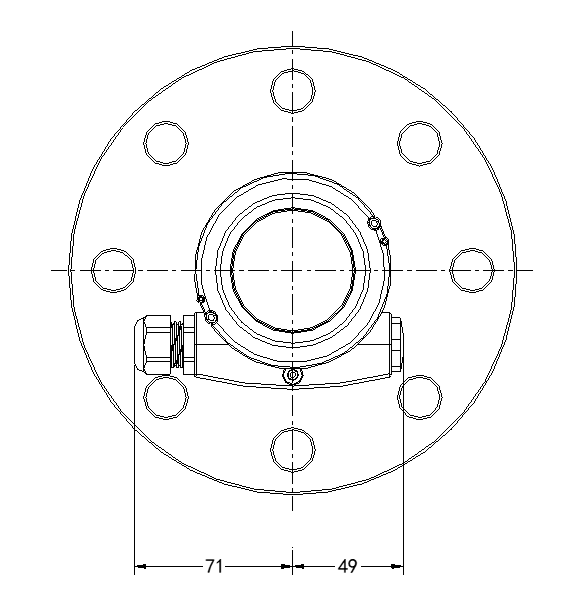

| Features | 80GHz high-frequency radar designed for high temperature, high pressure, and corrosion resistance with a maximum range of 120 meters | |
| Applications | Level measurement for liquids and bulk solids in harsh conditions, ideal for petroleum, chemical, metallurgy, and power industries; withstands 220℃, corrosion, and steam interference. | |
| Measurement Parameter | Frequency | 80GHz |
| Measuring Range | 120m | |
| Beam Angle | ≥3° | |
| Accuracy | ±1mm | |
| Material | Antenna | PFA, 316L+PTFE, 316L+PFA |
| Housing | Aluminum alloy | |
| Installation | Process Connection | Flange, Thread, Bracket, Suspension |
| Power Supply | DC | 12~30V DC |
| Signal Output | Analog Output | 4～20mA |
| Communication Protocol | HART/ RS-485/ MODBUS | |
| Bluetooth | Support Bluetooth® v5.4 | |
| Operating Environment | Process Pressure | -1 – 40 bar |
| Process Temperature | -40℃～150℃ -40℃～220℃ | |
| Ambient Temperature | -40℃～80℃ | |
| Storage Temperature | -40℃～80℃ | |
| Safety Certification | Ingress Protection | IP66/67 |
| Explosion-proof | Ex db llC T6 Gb Ex ia llC T6 Ga Ex tb lllC T80℃ Db | |
| Cable | Cable Entry | M20×1.5, 1/2NPT |
● Chemical Reactors: Level measurement for high-temperature (up to 220°C) and high-pressure, corrosive media in chemical and petroleum industries.
● Hot Oil & Solvents: Monitoring in high-temperature, high-pressure, corrosive storage tanks, widely used in petrochemical plants.
● Steam Boilers: Reliable level measurement under high-temperature, high-pressure steam conditions, ensuring safe power plant operation.
● Food & Beverage: Accurate detection for hot liquids, minimizing foam and viscosity interference.
● Corrosive Waste Tanks: Non-contact measurement in high-temperature, high-pressure corrosive waste, enhancing safety and durability.
