Level Monitoring in Compressor Knockout Drums: JWrada® PRO High-Frequency Radar

In petrochemical, natural gas processing, and refining industries, the compressor is hailed as the “heart” of the production line. To protect this vital component, the Compressor Knockout Drum plays a critical role. It utilizes gas-liquid separation to intercept water or hydrocarbon liquids from the process gas stream, preventing “liquid slugging” damage to high-speed rotating compressor blades.

To address these harsh process conditions, Jiwei has introduced the JWrada® PRO series high-frequency radar level transmitter. With its self-developed software algorithms and remote commissioning capabilities, it has become a leader in the field of industrial level measurement.

I. Core Challenges of Level Measurement in Compressor Knockout Drums

The operating conditions in a knockout drum are typically complex, demanding extreme reliability from the level gauge:

• Varying Media and Property Fluctuations: The medium inside the tank may be water, heavy hydrocarbons, or a mixture of both. The dielectric constant (εr) of these media varies significantly. Traditional capacitive or hydrostatic level transmitters struggle to adapt to these changes in density and permittivity.
• Gas Phase Interference: High concentrations of volatile gases, vapors, and potential pressure fluctuations (+3 … +10 bar) exist within the vessel, which can refract or absorb radar signals, leading to false echoes.
• Constrained Space: Many knockout drums are equipped with mist eliminators or baffles. In such narrow installation spaces, traditional mechanical instruments are easily interfered with.
• Exorbitant Downtime Costs: If inaccurate level measurement leads to liquid carry-over into the compressor, a single repair can cost hundreds of thousands or even millions of dollars.

II. Core Competitiveness of JWrada® PRO: Not Just Hardware, But Intelligence

The JWrada® PRO is a powerful alternative to high-end imported models (such as the VEGAPULS 6X). Its core advantage lies in a self-developed system that deeply integrates hardware and software.

1. Millimeter-Wave Radar Hardware: Precision Detection

JWrada® PRO utilizes 80GHz high-frequency technology with an extremely narrow beam angle (as small as 3°). This means energy is more concentrated, allowing the signal to easily bypass internal condensing pipes, mist eliminators, and brackets to act directly on the liquid surface. Even within a small measuring range of just 2 meters, it maintains millimeter-level accuracy.

2. Self-Developed Software Algorithms: Solving Complex Issues

One of the core strengths of JWrada® is its software. While hardware determines the ceiling of signal acquisition, the algorithm determines the ability to analyze that signal.

• Echo Curve & EFT Curve Analysis: The system generates real-time echo curves. Through EFT (Interference Suppression Technology), the software automatically identifies and filters out fixed interference signals from agitators or inlets, locking onto the true liquid level.

3. Cloud-Based Remote Collaboration: Leading Commissioning Mechanism

This is the “killer feature” that distinguishes Jiwei JWrada® from other domestic manufacturers. In remote locations like large natural gas gathering stations in Sichuan or refining projects in Dongying, Shandong, on-site access is often difficult.

• One-on-One Remote Commissioning: Through a cloud server, Jiwei’s senior engineers can collaborate online with on-site personnel in real-time.
• Real-Time Fault Code Viewing: If an anomaly occurs, engineers can retrieve fault codes from thousands of miles away to accurately determine if the issue is signal attenuation or power supply.
• Process-Customized Algorithms: For specific complex conditions, we can fine-tune the radar’s underlying algorithms via the cloud, ensuring optimal performance for every device in its unique environment.

III. Real-World Case Study: Natural Gas Compressor Station in Ordos, Inner Mongolia

Project Background:

At a compressor station in the Sulige Gas Field, Ordos, the knockout drum originally used an imported float level gauge. Due to small amounts of light hydrocarbons and water in the natural gas, the float frequently suffered from material buildup and jamming, causing frequent compressor trips and alarms, which severely impacted production.

Solution:

The project implemented the JWrada® PRO high-frequency radar level transmitter.

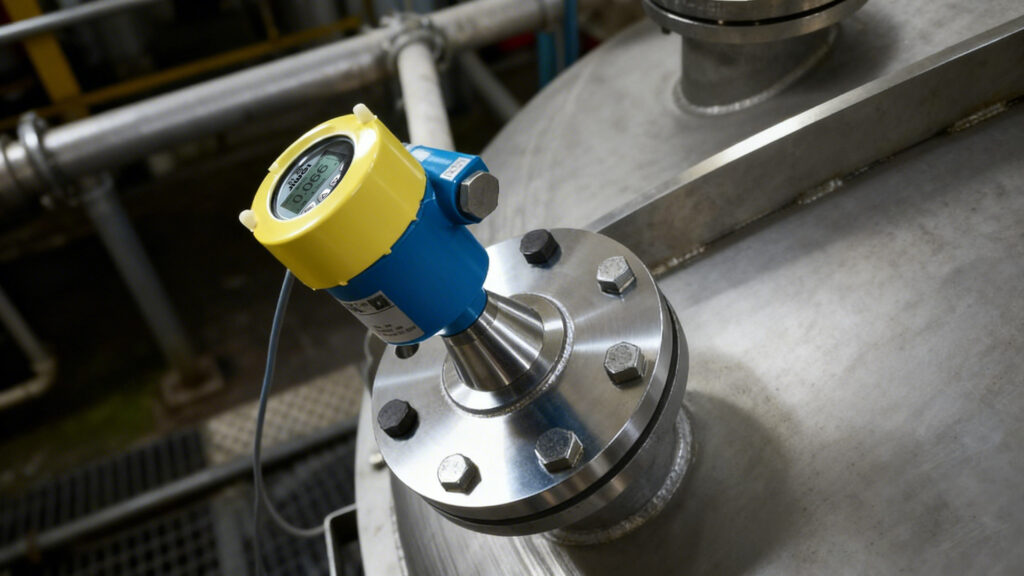

• Installation: Flange-mounted on the original top nozzle of the knockout drum.
• Configuration: Range set to 1.8m, process pressure at 8 bar, medium consisting of mixed hydrocarbons.

Application Results:

Initially, residual sediment at the bottom caused signal fluctuations. Jiwei engineers accessed the device via the cloud server to analyze the on-site echo curves. They adjusted the “suppression distance” and optimized the Dynamic Gain algorithm, successfully eliminating interference from bottom reflections. Since 2024, the device has operated stably in both -30°C winters and high-temperature summers, completely resolving the maintenance issues associated with jamming.

IV. Technical Specifications Overview

Feature	JWrada® PRO Specification
Applications	Knockout drums, storage tanks, reactors
Frequency Range	80GHz
Measuring Range	0.1 m … 150 m (2 m for this project)
Accuracy	±1 mm
Process Temperature	-40 … +220 °C
Process Pressure	-1 … +25 bar
Output Signal	4…20mA / HART / Modbus / Cloud Protocol
Core Functions	Remote debugging, real-time echo curve, fault self-diagnosis

V. Why Choose JWrada® PRO Over Traditional Instruments?

• High Reliability: Even as media switches between water and oil, the radar wave is unaffected by density changes, ensuring no water carry-over to the compressor.
• Long Lifespan: Non-contact measurement means no wear from corrosive or viscous substances, significantly reducing maintenance costs.
• Self-Contained & Controllable: Our software system is entirely self-developed, providing a secure “Made in China” alternative with full lifecycle support.

VI. Conclusion and Recommendations

In compressor knockout drum level measurement, choosing an instrument that can “see” complex conditions and support “remote diagnosis” is key to increasing efficiency. The JWrada® PRO, with its unique software advantages and cloud collaboration, breaks the monopoly of foreign brands in the high-end radar market.
