Radar Level Gauge Antenna Material Selection: Advantages and Application Limits of PEEK
PEEK offers relatively stable dielectric properties, high-temperature resistance, chemical resistance, low moisture absorption, and high mechanical strength. These characteristics make it suitable for demanding radar antenna designs in which the RF-transparent window, structural components, and process isolation must be considered together.
However, PEEK is only one of several preferred candidate materials. Final material selection must account for radar frequency, antenna geometry, process medium, temperature and pressure, hygienic requirements, and cost. The performance of an entire radar level gauge cannot be determined solely by the use of PEEK.
1. Key Takeaways
- Antenna material selection is part of the electromagnetic design. Dielectric constant, dielectric loss, and their variation with frequency, temperature, and humidity can affect the beam pattern and echo signal.
- The value of PEEK lies in its balanced performance, not merely its high-temperature resistance. It also combines mechanical strength, dimensional stability, low moisture absorption, and chemical resistance.
- As radar operating frequency increases, performance generally becomes more sensitive to material batch consistency, machining tolerances, surface condition, and antenna geometry.
2. Why Corrosion Resistance Alone Is Not Enough
An 80 GHz FMCW radar level gauge transmits a frequency-modulated continuous wave through its antenna. It receives the signal reflected from the material surface and calculates distance from the frequency difference between the transmitted and received signals.
Any lens, window, or sealing material located in the electromagnetic propagation path can change the phase and energy distribution of the signal. The material must therefore remain intact in the process medium while allowing millimeter waves to pass through as intended.
If the material absorbs moisture, deforms under heat, or develops a heavy buildup on its surface, its effective dielectric environment may change. This can result in weaker echoes, beam deviation, or an increase in false echoes.
A high-performance radar design depends on the coordinated operation of the antenna material, aperture, beam angle, sealing structure, and echo-processing algorithm. No single material can solve every application challenge.
3. Five Reasons PEEK Is a Preferred Candidate Material
3.1 Suitable Electrical Insulation and Dielectric Properties
Unfilled PEEK is an electrically insulating, high-performance thermoplastic. Published material data can provide useful reference values for its low-frequency dielectric constant and dissipation factor.
However, low-frequency data cannot replace measurements performed at 80 GHz. Antenna validation must use the intended PEEK grade at the target frequency and under actual temperature, humidity, and molding conditions.
3.2 Thermal Stability Helps Maintain Antenna Geometry
The curvature, thickness, and concentricity of a radar lens affect its beam pattern. PEEK has a high melting point and good thermal stability, providing a strong structural basis for process connections exposed to significant temperature variations.
Nevertheless, the glass transition temperature, thermal expansion, long-term mechanical loading, and sealing preload can all affect final dimensions. The melting point of the resin must not be treated as the allowable process temperature of the complete radar level gauge.
3.3 Chemical and Hydrolysis Resistance for Complex Media
Acids, alkalis, solvents, steam, and cleaning agents can simultaneously challenge the antenna window and sealing system.
PEEK provides good resistance to many chemical environments and has relatively low moisture absorption. These properties help reduce performance drift caused by penetration of the process medium.
Compatibility must still be verified against the chemical resistance data for the specific PEEK grade, concentration, temperature, exposure duration, and chemical mixture.
3.4 Strength and Wear Resistance for Compact Structures
In applications involving dust erosion, particle abrasion, purging, or cleaning, an RF-transparent component must transmit radar waves while also withstanding mechanical loads.
PEEK offers a useful balance of strength, stiffness, and wear resistance. This creates design opportunities for thin-wall RF-transparent components, protective covers, and integrated sealing structures.
3.5 Machinability for Complex Antenna Profiles
Radar lens antennas often require stable curved surfaces and tight dimensional tolerances. PEEK can be injection-molded or machined into complex geometries.
However, crystallinity, internal stress, fiber reinforcement, and machining marks can affect dimensional and electromagnetic consistency. Conductive or filled PEEK grades, especially carbon-fiber-reinforced grades, must not automatically be treated as suitable RF-transparent materials.
4. PEEK vs. PTFE/PFA and Metal-Polymer Structures
| Material or structure | Main advantages | Factors to verify |
|---|---|---|
| Unfilled PEEK | Balanced thermal, mechanical, chemical, and dimensional performance | Dielectric data at the target frequency, material grade, crystallinity, and cost |
| PTFE or PFA | Excellent chemical resistance and low surface energy, helping reduce buildup | Mechanical support, thermal deformation, sealing, and manufacturing method |
| 316L stainless steel with polymer isolation | Metal provides structural strength while the polymer provides process isolation or an RF-transparent interface | Sealing integrity, thermal stress, and completeness of wetted-material isolation |
Materials should always be compared as part of a complete structure.

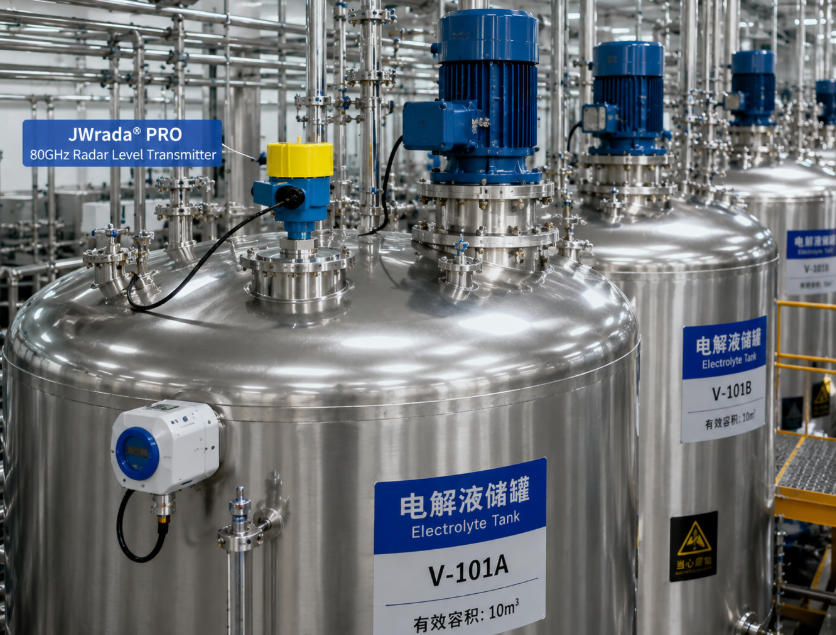

For highly corrosive liquids, comprehensive isolation of all wetted components may be more important than the material of an exposed antenna alone. In dusty silos, antenna buildup, mounting angle, purging conditions, and available echo margin can be equally important.
5. Selection Guide: Eight Details to Provide Your Supplier
For accurate radar level gauge and antenna selection, provide the following information:
- The name of the liquid, slurry, or bulk solid and its dielectric constant, if known.
- Normal and maximum temperature and pressure, including vacuum conditions.
- Concentrations and exposure times for acids, alkalis, solvents, steam, and cleaning agents.
- The likelihood of dust, foam, condensation, buildup, or crystallization.
- Measuring range, vessel diameter, material surface angle, and filling position.
- Internal obstructions such as agitators, reinforcing structures, and heating coils.
- Hazardous-area, ingress-protection, hygienic, and other compliance requirements.
- Output signal, power supply, communication protocol, and field commissioning method.
6. Frequently Asked Questions
6.1 Does PEEK’s high temperature resistance mean the complete radar level gauge has the same temperature rating?
No. The temperature limit of the complete instrument depends on the antenna, seals, process connection, electronic module, heat dissipation design, and certification conditions.
6.2 Is a lower dielectric constant always better for PEEK radar antennas?
No. A radar lens uses a specific dielectric constant and geometry to control signal phase. The important factors are parameter stability, manageable dielectric loss, and compatibility with the antenna design.
6.3 Can glass-fiber- or carbon-fiber-reinforced PEEK be used directly for a radar lens?
It should not be assumed to be suitable. Fillers can change the dielectric constant, dielectric loss, anisotropy, and even electrical conductivity. The selected grade must be tested at the target radar frequency.
6.4 Should PEEK, PFA, or PTFE be selected for corrosive applications?
The decision depends on chemical compatibility, temperature, mechanical loading, buildup behavior, sealing method, and electromagnetic design. There is no universally correct material independent of the actual process conditions.
7. Conclusion
PEEK has attracted attention in high-performance radar antenna design because it can address several requirements simultaneously, including millimeter-wave transmission, temperature resistance, chemical resistance, and structural stability.
However, preferred material selection must be based on the specific PEEK grade, operating frequency, antenna structure, and complete process conditions.
For radar level measurement in high-temperature, highly corrosive, or dusty environments, provide Jiwei with information about the process medium, temperature and pressure, vessel geometry, and control system. Jiwei can then recommend a suitable antenna configuration and installation solution.
