How JWrada PRO Radar Level Meter Ensures Stable Level Measurement in Knockout Drums

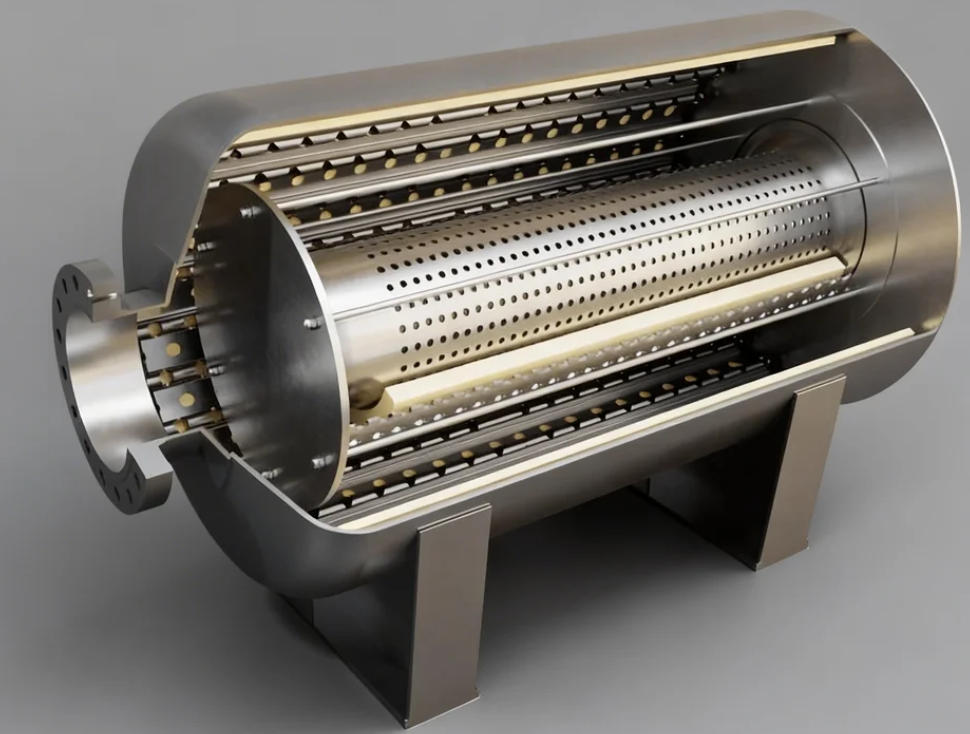

In oil, gas, and chemical plants, the Compressor Knockout Drum is a critical piece of equipment. Its primary function is to separate liquids (such as water or light hydrocarbons) from gas before it enters the compressor, preventing liquid from entering the compressor and causing damage. Since this equipment directly affects the safe operation of the compressor, level measurement must be long-term stable, reliable, and unaffected by process fluctuations.
If level measurement is inaccurate, liquid may enter the compressor system, causing liquid hammer or even equipment shutdown. For refineries or natural gas processing plants, such downtime not only interrupts production but also incurs significant economic losses. Therefore, selecting a stable and reliable level measurement solution is an essential task for engineering design and on-site operation.
Challenges in Measuring Level in Compressor Knockout Drums
Typical applications often face multiple complex conditions:
- Measurement range: usually within 2 meters
- Medium: hydrocarbons or water
- Process temperature: 60℃–120℃
- Process pressure: 3–10 bar
Additional challenges include:
- High gas volume and vapor concentration: Steam and gas can interfere with traditional measurement methods.
- Variable medium properties: Condensate or oil-water mixtures may have density and dielectric constant changes.
- Continuous operation: Any instrument maintenance or failure can affect the stability of the entire compressor system.
An ideal level measurement solution should have the following characteristics:
- Unaffected by vapor
- Independent of medium density
- Long-term stable operation
- Simple installation and maintenance
Among various measurement technologies, 80GHz radar level meters have gradually become the preferred solution for level measurement in compressor knockout drums.
Technical Advantages of JWrada PRO Radar Level Meter
JWrada PRO 80GHz radar level meter, developed by Shenzhen Jiwei Automations Ltd., is designed for complex industrial conditions and provides excellent stability in compressor knockout drum applications:
- High-frequency radar technology: 80GHz radar has a narrow beam and strong focusing capability, enabling stable measurement even in high-vapor or small-space vessels.
- Unaffected by medium properties: Radar measures via electromagnetic wave reflection and does not rely on medium density or conductivity, ensuring stable output in oil-water mixtures.
- Easy installation: Can be mounted directly on the drum top flange without complex guided-wave structures.
- Long-term stability: Measurements are unaffected by vapor, pressure, or temperature fluctuations.
In practice, JWrada PRO provides continuous level signals and can integrate with high/low level alarms for redundant protection, further enhancing system safety.
Software and Intelligent Operation Capabilities
Hardware is important, but the software system is a key factor for instrument performance.
Key software features include:
- Firmware updates
- Process parameter tuning and configuration
- Fault diagnostics and alarms
Moreover, the meter supports cloud-based remote debugging, allowing engineers to collaborate with on-site technicians, view radar echo curves and measurement signals in real time, and optimize measurement parameters. Compared to traditional on-site debugging, this remote approach significantly shortens problem resolution time and enables customized optimization for specific site conditions.
Practical Application Example
At a natural gas processing facility in Shengli Oilfield, Dongying, the knockout drums at the compressor front end faced unstable level measurement, with frequent signal fluctuations in the vapor environment leading to unreliable level alarms.
In 2023, the project team introduced JWrada PRO series 80GHz radar level meters. The instruments were installed on the top flange of the drums, directly measuring liquid level via radar waves and performing remote parameter optimization through the cloud platform.
After more than a year of operation, the level measurement has remained stable and reliable. Maintenance and debugging have become more convenient, significantly improving overall system safety.
Conclusion
In compressor systems, level measurement of knockout drums is crucial for equipment safety. Faced with complex vapor and variable medium conditions, JWrada PRO 80GHz radar level meters provide a reliable solution with high-frequency radar technology, stable measurement performance, and intelligent software.
With cloud-based remote debugging and echo signal analysis, engineers can achieve intelligent operation and maintenance, ensuring long-term stability even under complex conditions. JWrada PRO offers oil, gas, and chemical industries an efficient and reliable level measurement solution.
