Background

Powder loading and storage silo systems play a critical role in modern industrial production, serving as essential components to ensure continuous production and material safety. In industries such as cement, chemical powders, lime, and new energy powders, storage silos and bulk loading sites are responsible not only for high-efficiency material transfer in short periods but also for precise monitoring of material storage, level changes, and the loading process. Industrial environments frequently involve high dust concentration, elevated temperatures, steam, strong mechanical vibrations, and complex electromagnetic interference. These harsh conditions not only increase measurement difficulty but also impose extremely high requirements on the durability, stability, safety, and long-term reliability of radar level transmitters.

Traditional contact-type level measurement devices have clear limitations in these scenarios. Mechanical floats, vibrating rods, or other contact probes are prone to material accumulation, fouling, corrosion, or sticking, leading to drift or false alarms. Low-end radar or ultrasonic devices often suffer from signal attenuation under high dust, steam, or vibration conditions, resulting in insufficient measurement accuracy and response speed, which cannot meet the needs of continuous industrial production. Furthermore, frequent maintenance and cleaning increase labor costs and pose safety risks, especially in high-temperature, high-dust, or hazardous chemical environments.

During powder loading, failure to monitor level changes in real time may result in truck overfilling, dust leakage, material waste, and production interruptions, directly affecting production efficiency, product quality, and on-site safety. Therefore, industrial enterprises urgently need a level measurement solution that can operate reliably under complex conditions, respond quickly, and deliver high measurement accuracy to ensure production continuity, safety, and efficient automation management.

Industrial Challenges

In powder loading processes, inadequate level measurement can lead to a series of operational and safety issues. For instance, truck overfilling causes powder to spill onto the floor, increasing cleaning costs and affecting workplace safety. Dust leakage not only pollutes the air but may also pose health risks to operators and increase environmental compliance issues. Material waste directly impacts cost accounting, while frequent manual inspections increase labor intensity and the potential for operational errors.

Particularly with low dielectric constant powders (such as cement, fly ash, PVC powder), severe dust, steam, or foaming environments, conventional mechanical or low-end radar devices struggle to maintain continuous and stable measurements. Dust accumulation on sensors, signal attenuation in steam and high-temperature conditions, and foam or material surface fluctuations may cause false alarms or inaccurate readings. These challenges reduce production efficiency and increase equipment maintenance costs and on-site management complexity.

To effectively address these demanding conditions, enterprises require high-reliability, non-contact radar level meters with advantages including:

• Non-contact measurement: Prevents powder adhesion, fouling, or corrosion from damaging the device, reduces maintenance frequency, and extends service life.
• High-precision measurement: Accurately identifies the level of low dielectric powders, ensuring real-time control during loading.
• Fast response: Provides instant feedback on material level changes, preventing truck overfilling and enabling automated control of loading.
• Strong anti-interference capability: Designed to handle high dust, steam, vibration, and electromagnetic interference, ensuring stable signal output.
• Remote monitoring and configuration: Supports wireless commissioning, remote parameter configuration, and data acquisition for easier management.
• Intelligent echo processing: Automatically recognizes false echoes, separates multi-layer echoes, and tracks dynamic material surfaces to improve measurement reliability.
• High-temperature and explosion-proof adaptability: Suitable for high-temperature powders, steam environments, and combustible materials, ensuring safe operation.

By deploying high-reliability radar level meters, enterprises can improve loading accuracy and efficiency, significantly reduce environmental pollution and safety risks, lower labor inspection and maintenance requirements, and enhance overall production automation and operational efficiency.

JWrada® PRO Solution

The JWrada® PRO Series Industrial Radar Level Transmitter utilizes advanced 80GHz FMCW high-frequency radar technology, offering narrow beam angles, concentrated energy, strong echo signals, and excellent anti-interference performance. It provides a non-contact, high-precision, and highly stable level measurement solution for powder storage silos and bulk loading systems. Compared to conventional low-frequency radar or contact-type devices, JWrada® PRO maintains reliable measurement output under high dust, low dielectric constant powders, steam, and complex material surface conditions, making it ideal for cement, fly ash, lime, PVC powder, lithium battery powder, and chemical powders.

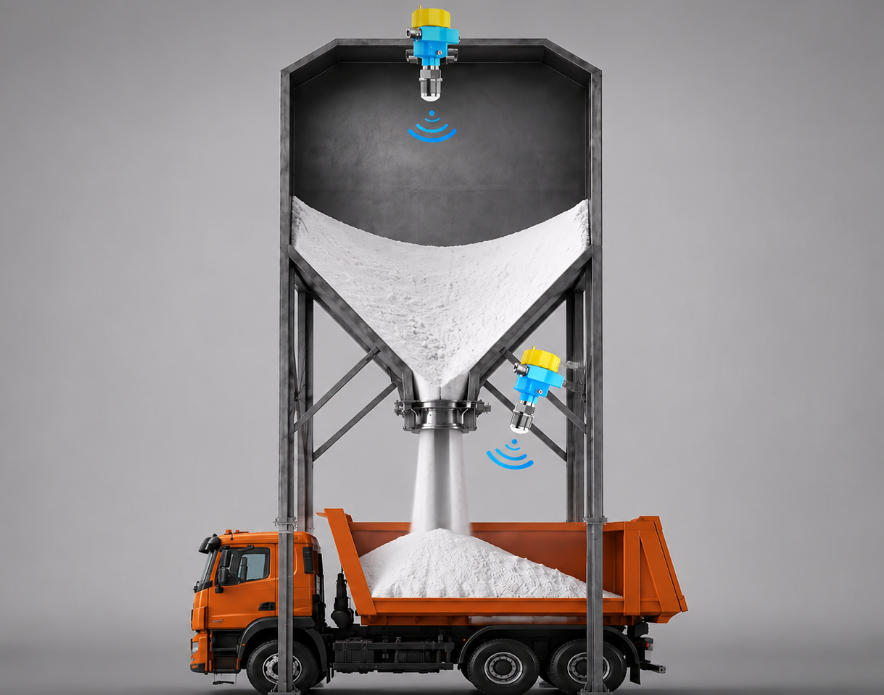

In practical powder loading applications, the system continuously monitors the material level inside storage silos and truck compartments. With dual radar deployment—top-mounted and side-mounted—the device provides precise, continuous, and dynamic level monitoring. The top radar monitors storage conditions within the silo, while the side radar tracks the level rise in trucks during loading. Even under continuous discharge, severe dust, and rapidly fluctuating surfaces, the device can accurately detect the real material level.

When the loading level approaches the pre-set maximum, the system automatically triggers an alarm and stops discharge via interlocking with the conveyor system, preventing truck overfilling, dust leakage, and material waste. Compared with manual observation, this significantly improves loading efficiency and reduces labor inspection frequency and on-site safety risks.

JWrada® PRO’s intelligent echo processing automatically identifies dust interference, multi-layer echoes, and wall reflections. Even in high-concentration dust, steam, foam, or strong electromagnetic interference, it maintains high-quality echo output and stable measurement precision. Its non-contact design also prevents probe damage caused by fouling, corrosion, wear, or high temperatures, reducing maintenance costs and extending service life.

For high-dust powder loading systems, the JWrada® PRO Series not only ensures precise, stable, and continuous level monitoring but also significantly enhances automation, safety, and overall production efficiency, offering a highly reliable industrial radar level measurement solution for modern powder industries.

Technical Advantages

High-frequency radar technology: 80GHz FMCW radar with narrow beam, concentrated energy, and strong signals, capable of accurately identifying low dielectric powders and bulk materials even in complex surfaces or silo wall reflections.

Intelligent echo processing algorithm: Automatically identifies false echoes, multi-layer interference, and dynamic material surface changes, ensuring continuous stable measurement and reducing false alarms.

High-temperature adaptability: Stable operation at up to 220°C, suitable for steam conditions, high-temperature powder storage, chemical reactors, and cement kilns, maintaining precision over long-term continuous operation.

Corrosion-resistant design: Radar probe features corrosion-resistant sealed structure and PTFE diaphragm, suitable for acidic, alkaline, and chemical powder or liquid environments, prolonging device life and reducing maintenance.

Comprehensive explosion-proof: Certified for both gas and dust hazardous areas (Ex db IIC T6 Gb, Ex ia IIC T6 Ga, Ex tb IIIC T80℃ Db, Ex ia IIIC T200 80℃ Da), ensuring safe operation in combustible environments.

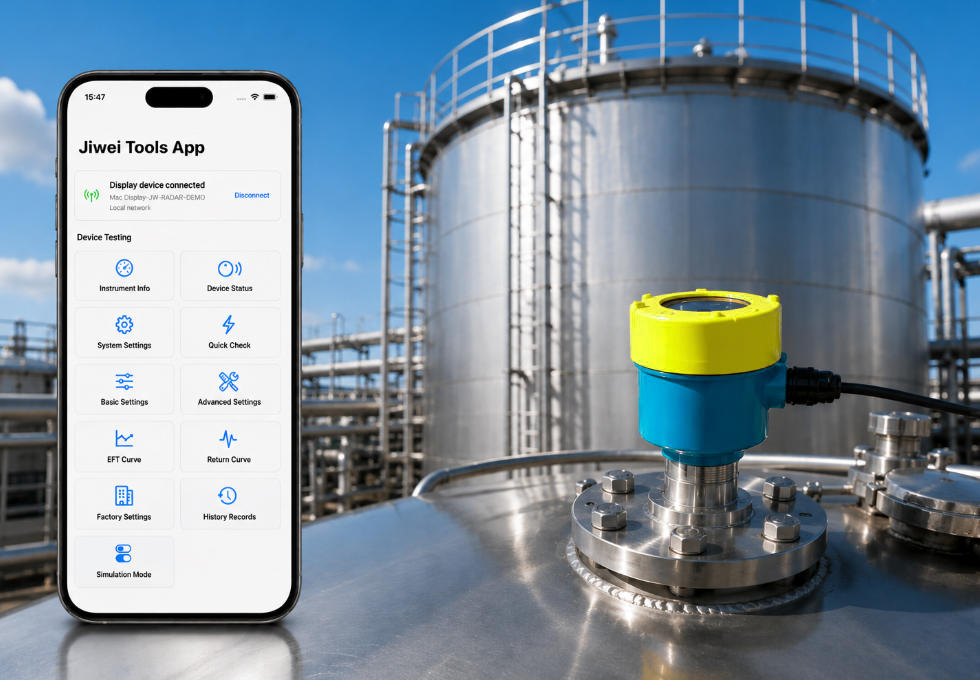

Bluetooth wireless commissioning: Built-in Bluetooth 5.0 module, integrated with JW TOOLS APP for wireless parameter configuration, on-site commissioning, and remote monitoring, improving installation efficiency and operational safety.

Non-contact measurement: Prevents fouling, wear, and corrosion, extending service life and reducing maintenance costs, offering superior reliability in high-dust, steam, and corrosive environments.

Strong anti-interference capability: High signal-to-noise design ensures stable measurement even under stirring, steam, dust, vibration, and strong electromagnetic interference.

Project Application

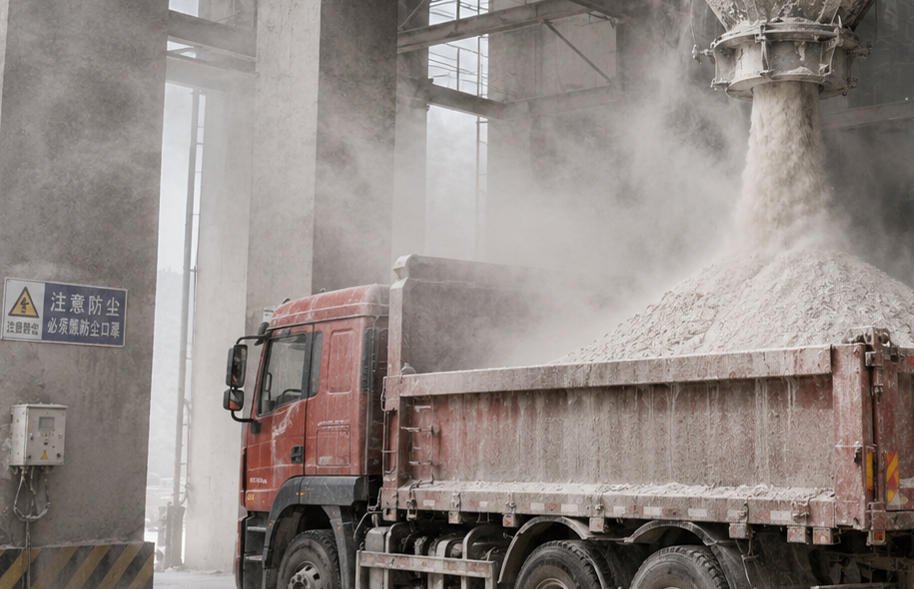

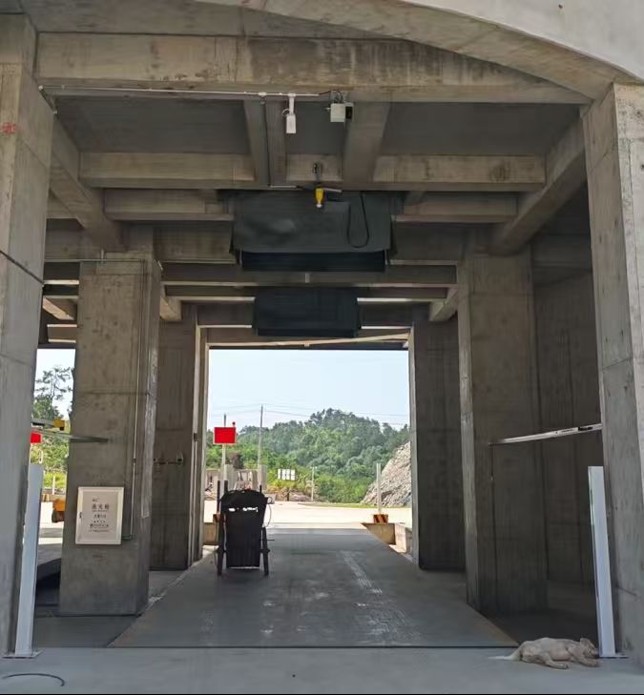

In this project, the JWrada® PRO Series was deployed in a high-dust powder loading system. The site experiences continuous dust emission, high dust concentration, turbulent material flow, and rapid dynamic level changes, imposing high demands on measurement stability and anti-interference performance. Traditional mechanical level meters or low-frequency radar devices are easily affected by dust accumulation, false echoes, and vibration, resulting in false alarms, measurement drift, or device failure, failing to meet continuous production requirements.

JWrada® PRO accurately identifies the true material level even in high-dust environments. Its narrow beam and concentrated energy maintain stable measurement output despite severe dust and fluctuating surfaces. With top-mounted and side-mounted radars, it continuously monitors silo levels and truck compartment levels, enabling dynamic full-process monitoring of powder loading.

During loading, as material continuously discharges and truck levels rise rapidly, JWrada® PRO’s intelligent echo processing automatically filters dust interference, multi-layer echoes, and wall reflections, ensuring precise real-time tracking of actual material levels. When levels approach the set maximum, the system triggers alarms and stops discharge, preventing overfilling, dust leakage, and material waste.

High signal-to-noise ratio and strong anti-interference design allow stable operation in steam, dust, vibration, and electromagnetic interference. Non-contact measurement avoids fouling, corrosion, wear, or high-temperature damage, reducing maintenance and enhancing continuous operational stability.

On-site Value

By deploying JWrada® PRO, enterprises can:

• Prevent overfilling and dust leakage
• Improve loading efficiency and production safety
• Reduce maintenance costs and downtime
• Support long-term continuous operation and automation

Advantages of a Chinese Industrial Radar Brand

Jiwei Automation insists on independent R&D, with fully self-controlled core technology, without reliance on external licensing or imported components. The R&D team integrates extensive on-site studies, optimizing design for high dust, high temperature, steam, low dielectric powders, and complex vibration environments. JWrada® PRO delivers high stability, reliability, and anti-interference capability, fully satisfying high-end industrial level measurement requirements in China, and providing enterprises with safer, more efficient, and intelligent material management solutions.

Conclusion

The JWrada® PRO Series Industrial Radar Level Transmitter, featuring 80GHz high-frequency radar, non-contact measurement, intelligent echo processing, Bluetooth wireless commissioning via JW TOOLS, and industrial-grade stability, provides precise, safe, and efficient level measurement solutions for powder loading, silo monitoring, and complex industrial processes, enabling enterprises to achieve intelligent, automated production management.
