Jiwei Ring-11 Liquid Level Switch: Intelligent and Safe Point Level Detection Solution
In modern industrial automation, liquid point level detection is a critical component for ensuring production safety, efficiency, and environmental protection. Whether in chemical plants, power stations, food production, or shipbuilding, liquid level switches must reliably detect when a tank or reactor reaches a specific limit and control downstream processes such as pump start/stop, valve operation, or alarm triggers. This function prevents overflow or dry running and ensures stable and continuous production processes.
In the past, level switches were often considered only as simple on/off signals. Today, Jiwei Ring-11 Liquid Level Switches provide precise point level detection while collecting additional process data, supporting diagnostic functions, and integrating with industrial management systems. This allows enterprises to build a complete liquid level management data chain, achieving safer and smarter factory operations.
Working Principle of Ring-11 Series
The Ring-11 series uses the vibrating fork (tuning fork) principle for liquid point level measurement:
- The fork vibrates freely in the air at a fixed frequency.
- When the fork contacts liquid, the vibration frequency and amplitude change due to the liquid’s density and damping.
- This change triggers the switch, indicating that the liquid has reached the set point and sending a signal to the control system.
This principle offers natural advantages: it is unaffected by liquid viscosity, density, or foaming, and does not require recalibration or parameter adjustments even if the liquid medium changes. Compared to traditional capacitive or conductive level switches, Ring-11 performs more reliably in complex process conditions.
Key Advantages of Ring-11 Series
1. Medium Independence
Ring-11 operates accurately in various liquids without parameterization, maintaining precise triggering even if the liquid properties change. This reduces installation and maintenance complexity and lowers the risk of production downtime.
2. Maintenance-Free Design
With no moving parts, Ring-11 has minimal wear over long-term operation. Its robust construction ensures stable performance under challenging conditions, reducing maintenance costs and increasing production reliability.
3. High Safety and Certification
Ring-11 meets SIL2/3 certification, ensuring reliability in critical control systems, and is suitable for use in hazardous areas. Its durable design guarantees stable operation even in high temperature, foaming, or corrosive liquid conditions, safeguarding industrial production.
4. High Temperature Adaptability
Ring-11 operates reliably at temperatures up to 400°C, making it suitable for steam boilers, reactors, and high-temperature pipelines.
Typical Applications of Ring-11
1. Overflow and Leak Protection
Ring-11 plays a key role in monitoring the maximum liquid level in tanks and reactors, preventing overflow or leakage and reducing potential risks to equipment and the environment. In chemical and food production, tanks may store corrosive, volatile, or toxic liquids. Ring-11 accurately detects when the liquid reaches the set point, instantly triggering pump shutdown, valve closure, or alarms for early intervention.

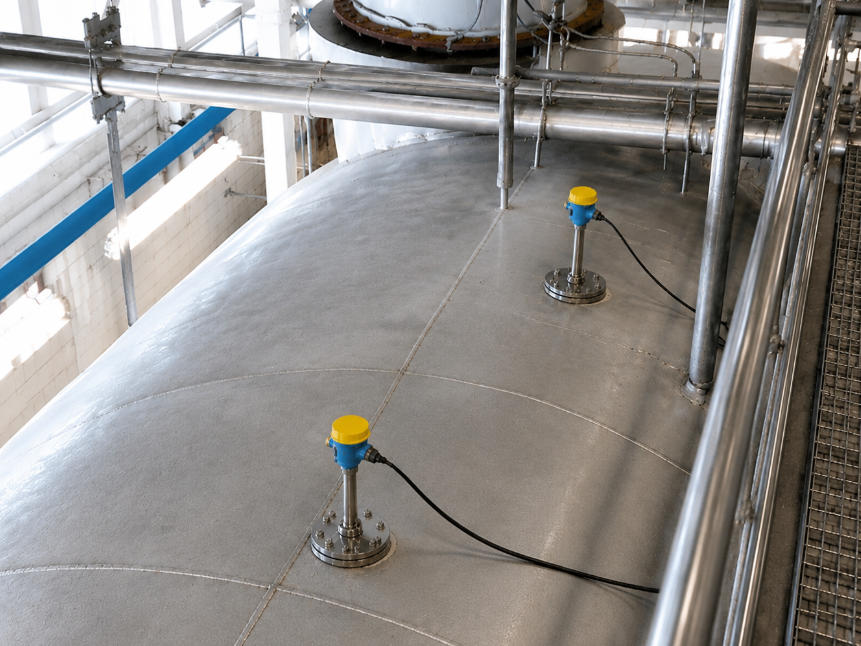

This ensures tank operation safety and enables rapid response to emergencies, preventing spills from entering factory floors or pipelines. Ring-11’s high-temperature and corrosion-resistant design maintains stable switching even with high-viscosity or foaming liquids, ensuring continuous production and operational safety.
2. Dry-Run Protection
During liquid transfer, Ring-11 monitors the minimum level to prevent pumps from running dry, which can cause pump wear, cavitation, and energy waste. When the liquid falls to a critical level, Ring-11 sends an immediate signal to stop pumps or close valves, protecting equipment from damage.
Even with rapid flow changes, bubbles, or impurities in industrial pipelines, Ring-11 responds instantly, ensuring safe pump operation. Precise minimum level monitoring reduces maintenance frequency, optimizes energy usage, and provides reliable data for production scheduling, improving operational efficiency and control.
3. High-Temperature Operation Monitoring

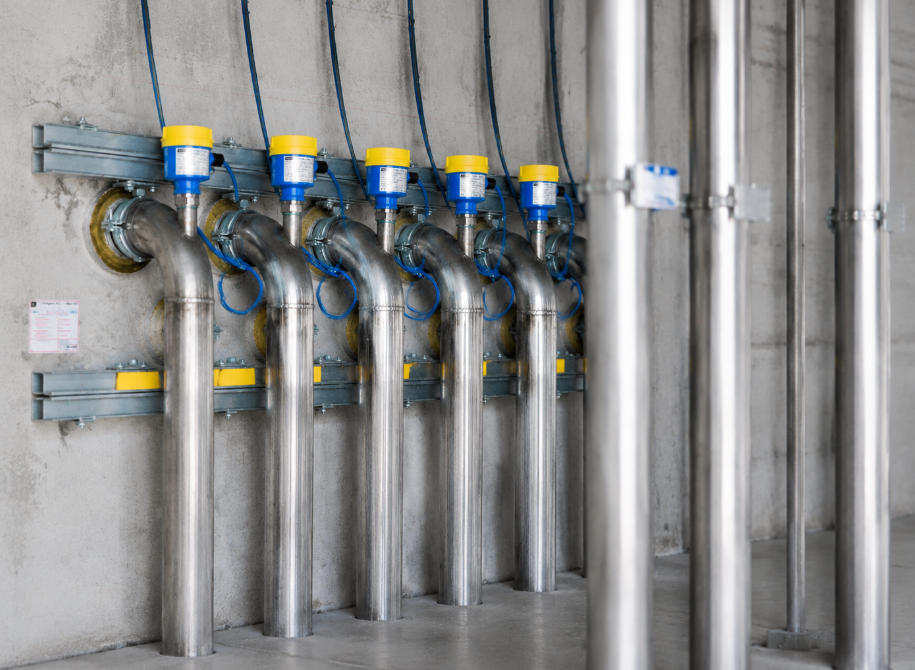

Ring-11 excels in high-temperature conditions. In steam boilers, reactors, or high-temperature pipelines, liquids may flow quickly, contain bubbles, or be highly viscous and corrosive, presenting significant challenges for traditional level switches. Ring-11 maintains stable switching signals even in pulsating or rapidly changing liquid conditions, reliably triggering set-point actions.
High-temperature monitoring ensures continuous processes, prevents production accidents or equipment damage, and provides operators with dependable data for enhanced automation and safety management.
Intelligent and Digital Support

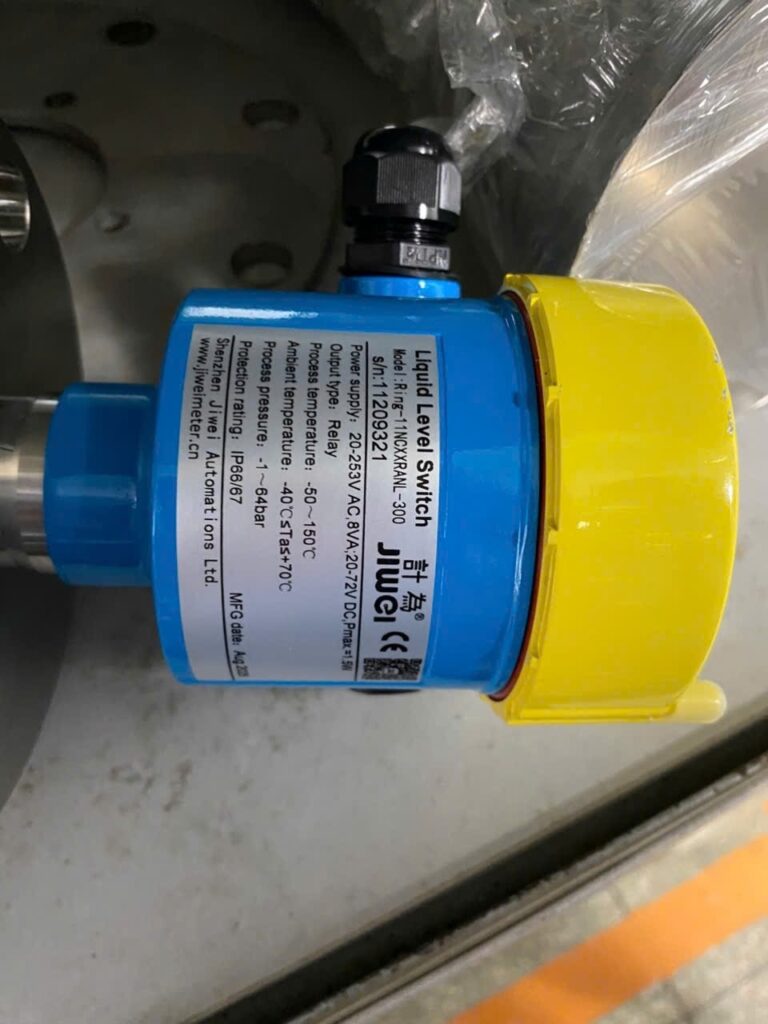

Ring-11 not only provides reliable switch signals but also outputs diagnostic data, real-time status, and historical records, enabling digital liquid level management. Ring-11 can connect to PLC (Programmable Logic Controllers), HMI (Human-Machine Interfaces), SCADA systems, and DCS, transmitting liquid level status to a central control platform.
Key functions include:
- Real-time monitoring: Liquid levels displayed on HMI or SCADA for quick operational awareness.
- Automatic report generation: System generates test and operational reports based on switch actions and diagnostics.
- Remote verification and alarm management: Operators can set alarm thresholds and remotely verify switch operations.
- Data recording and analysis: Historical liquid level data supports scheduling, inventory management, and safety assessment for smart decision-making.
Ring-11’s digital interfaces and compatibility with mainstream industrial control systems make it a smart, safe, and traceable liquid level management solution, enabling modern digital factories with efficient, safe, and environmentally friendly operations.
Sustainability Advantages
Ring-11 offers significant benefits for energy saving and resource optimization. By precisely controlling pump operation, Ring-11 ensures pumps run only when liquid reaches or falls below set points, avoiding unnecessary operation and reducing energy waste. This not only lowers power consumption but extends the life of pumps and associated equipment, improving overall operational efficiency.
Precise point level monitoring also optimizes chemical use. In chemical, pharmaceutical, or food production, additive dosage can be precisely controlled according to liquid levels. Ring-11 prevents overuse due to incorrect levels, enhancing resource utilization, reducing production costs, and minimizing environmental impact.
Additionally, the maintenance-free and highly reliable design reduces operational costs. Even under high temperature, high flow, or complex liquid conditions, Ring-11 maintains stable performance, ensuring continuous and safe production.
Overall, Ring-11 balances energy efficiency, environmental responsibility, and operational reliability, making it an ideal smart liquid level detection solution for future-oriented industrial operations.
Summary
Jiwei Ring-11 Liquid Level Switch sets the industry benchmark for liquid point level measurement. Whether for overflow prevention, leak protection, dry-run protection, or high-temperature operation monitoring, Ring-11 provides safe, stable, and traceable level control. SIL2/3 certification ensures reliable performance in critical conditions, helping enterprises achieve safe, efficient, and intelligent liquid level management.
