JWrada® 80GHz Radar Level Transmitter in Oil-Water Separation and Stirred Reactor Applications
Key Role of Reactors in Oil-Water Separation Processes
In modern industrial wastewater treatment and resource recovery systems, the reactor is a core process vessel widely used in oil-water separation, oxidation reactions, emulsification treatment, and wastewater purification processes. In oil-contaminated wastewater and sludge treatment systems, mixed media from different industrial sources must undergo multi-stage processing to achieve effective separation and recovery.
A typical process flow generally includes collection, centrifugation, chemical reaction treatment, and secondary separation. Among these stages, the stirred reactor section plays a critical role in ensuring the stability and efficiency of the oil-water separation process.
Industrial Challenges in Reactor Level Measurement
During reactor operation, level measurement faces multiple complex process challenges that often overlap, significantly reducing measurement stability and accuracy.
Firstly, reactors are typically equipped with high-speed mechanical agitators. During operation, strong turbulence is continuously applied to the fluid, causing irregular and unstable liquid surface fluctuations. This dynamic behavior leads to unstable echo signals, frequent signal jitter, and reduced measurement continuity.
Secondly, in oil-water mixtures, emulsions, and chemically reactive media, the process fluid exhibits strong multi-phase characteristics. The dielectric constant and density continuously change over time, making it difficult for conventional level instruments to reliably identify the true liquid surface reflection.
Meanwhile, chemical reactions often generate bubbles, localized density variations, and transient disturbances caused by exothermic or endothermic effects. These factors introduce additional noise into the signal path, resulting in intermittent attenuation, multiple reflections, or signal distortion.
In low-level conditions, especially when the liquid surface is close to the tank bottom or within blind zones, the true echo becomes weak while structural reflections dominate. This may lead to signal loss or tracking failure, affecting continuous process monitoring and operational safety.
Technical Advantages of JWrada® 80GHz Radar in Reactor Level Measurement
To address these challenges, Jiwei Automation introduces the JWrada® 80GHz radar level transmitter, providing a reliable non-contact measurement solution for complex reactor applications.
Based on FMCW 80GHz high-frequency radar technology, the device features a narrow beam angle and highly focused energy, effectively avoiding interference from agitators, internal structures, and vessel walls, ensuring accurate detection of the true liquid surface.
The built-in dynamic echo tracking algorithm intelligently analyzes complex echo profiles inside the reactor, automatically filtering out interference signals caused by agitation, bubbles, and process fluctuations, ensuring stable and continuous level output.
In low-level measurement conditions, JWrada® offers enhanced weak-echo detection capability, maintaining stable measurement even near the tank bottom, ensuring uninterrupted process operation.
Installation Method and Engineering Adaptability

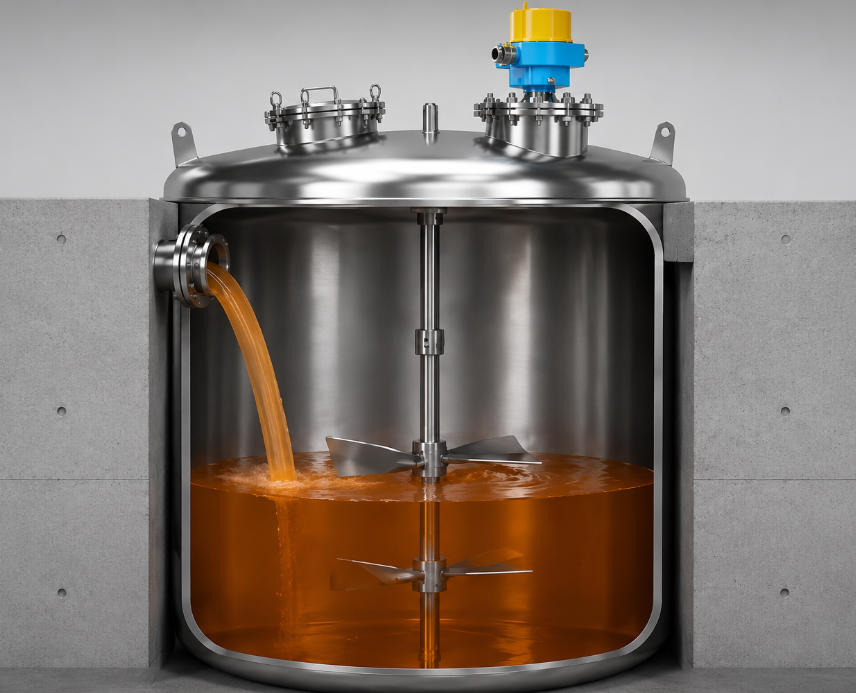

The JWrada® 80GHz radar level transmitter can be directly installed on the main process nozzle at the top of the reactor using a standard flange connection, without any structural modification to the vessel.
Thanks to its non-contact measurement principle, the instrument does not physically contact the process medium, eliminating issues caused by corrosion, scaling, or mechanical wear. This makes it particularly suitable for highly corrosive, high-viscosity, and chemically aggressive media.
This design significantly reduces installation and retrofit costs while improving long-term operational stability and reducing maintenance requirements, thereby enhancing overall plant efficiency and reliability.
Application Value in Reactor Automation Systems
In modern industrial automation systems, reactor level data is a key process variable directly involved in control logic and safety interlocks.
The JWrada® 80GHz radar level transmitter can seamlessly integrate into PLC, DCS, and SCADA systems, enabling real-time and continuous level monitoring.
With stable and high-precision output signals, it supports feed control, dosing control, and discharge regulation, enabling full closed-loop automation of reactor processes and significantly improving operational safety and efficiency.
Core Advantages of JWrada® in Reactor Applications
In complex reactor environments, JWrada® 80GHz radar level transmitters demonstrate strong integrated performance and engineering adaptability, making them a key solution for modern reactor level measurement and process optimization.
Firstly, high reliability and strong anti-interference performance. Even under strong agitation, bubble-rich environments, and multiphase media conditions, the system maintains stable echo detection. The 80GHz narrow-beam design combined with dynamic echo tracking effectively suppresses false echoes from agitators and vessel internals, ensuring continuous and stable output.
Secondly, excellent process adaptability. The device is suitable for oil-water mixtures, emulsions, chemical reaction liquids, sludge, and high-viscosity media. Its narrow beam angle effectively avoids internal mechanical interference, making it ideal for complex stirred reactor environments and continuous chemical processing systems.
Thirdly, low-cost installation and engineering integration. The device supports standard flange mounting and can be directly installed on existing reactor nozzles without vessel modification or shutdown. Factory pre-configuration allows rapid commissioning, enabling setup within 2 minutes even when the tank contains liquid, significantly improving project deployment efficiency.
More importantly, full digitalization and remote operation capability. The JWrada® radar level transmitter integrates stable Bluetooth communication and a dedicated mobile APP, enabling remote real-time commissioning, parameter configuration, and monitoring. It supports one-click parameter replication, allowing fast synchronization across multiple devices, significantly reducing commissioning workload. Meanwhile, LCD display and local keypad ensure dual-mode operation for both field and remote control.
In terms of system integration, the device supports 4–20mA and RS485/Modbus communication, enabling seamless integration with PLC, DCS, and SCADA systems for real-time reactor level monitoring and automated process control, including feeding, dosing, and discharge regulation.
Additionally, JWrada® offers excellent long-term stability and low maintenance requirements. The non-contact measurement principle eliminates issues such as corrosion, scaling, and mechanical wear, significantly reducing maintenance costs and improving lifecycle efficiency.
Overall, JWrada® 80GHz radar level transmitter not only solves key industry problems such as unstable measurement, poor echo reliability, and high commissioning complexity, but also enables a full transition from traditional instrumentation to intelligent, digital, and batch-deployable level measurement systems in reactor applications.
Industry Application Expansion
Beyond oil-water separation systems, JWrada® 80GHz radar level transmitters are widely used in chemical reactors, pharmaceutical mixing tanks, food emulsification vessels, wastewater treatment reactors, and mineral slurry tanks.
In all complex industrial conditions, it provides stable and reliable continuous level monitoring, ensuring accurate process control data for automation systems.
Conclusion
With the continuous development of industrial automation and smart manufacturing, reactor level measurement is evolving from basic detectability to high stability, continuous control, and intelligent management.
The JWrada® 80GHz radar level transmitter provides a robust and reliable solution for complex reactor applications through advanced radar technology and intelligent echo processing algorithms, significantly improving process safety and automation levels.
In the future, this technology will continue to play an important role in more reactor and complex industrial scenarios, driving continuous innovation in industrial measurement systems.
