Composite Output (Six-Wire Connection) in Industrial Level Measurement: From Single Signal to Multi-Protocol Integration
1. Introduction: Industrial Measurement Systems Are Evolving from “Single Signal” to “Multi-Signal Fusion”
In modern industrial automation systems, level measurement instruments have gradually evolved from traditional single analog output devices into intelligent measurement units capable of multi-protocol, multi-interface, and multi-data fusion output.
Especially in complex working conditions such as chemical, energy, power, cement, and mining industries, control systems no longer require only “level value” data. Instead, they demand additional information such as device status, diagnostic data, echo characteristics, and remote configuration capabilities.
Against this background, composite output (six-wire connection) technology has gradually become an important development direction for high-end industrial instruments. By independently allocating and integrating power supply, analog signals, and digital communication functions, this technology enables a single instrument to simultaneously meet multi-system integration requirements, significantly improving compatibility and intelligence in industrial systems.
2. Definition and Engineering Essence of Composite Output (Six-Wire Connection)
Composite output (six-wire connection) refers to an electrical wiring method in which an industrial instrument uses six independent wires to achieve multi-channel signal output.
Its core characteristics include:
- Independent power supply
- Independent analog signal output (typically 4–20 mA)
- Independent digital communication interface (such as RS485/Modbus)
From an engineering perspective, the six-wire structure is essentially an upgrade of traditional two-wire and four-wire architectures. Through physical signal isolation, it enables stable transmission of different signal types while improving anti-interference capability.
2.1 Typical Structural Composition of Six-Wire Connection
In standard industrial design, composite output (six-wire connection) typically includes:
- Power supply positive (+V)
- Power supply negative (0V)
- Analog output positive (4–20 mA+)
- Analog output negative (4–20 mA-)
- Digital communication A line (RS485 A)
- Digital communication B line (RS485 B)
This structure allows the instrument to output multiple types of data to different systems simultaneously without signal conflict or load interference.
3. Engineering Advantages of Composite Output Technology
3.1 Significantly Enhanced Multi-System Compatibility
In modern industrial sites, control systems typically present a multi-layer architecture, including PLC (Programmable Logic Controller), DCS (Distributed Control System), SCADA (Supervisory Control and Data Acquisition), and increasingly industrial IoT cloud platforms.
Different systems have independent requirements for data processing, control logic, and information hierarchy. Therefore, higher interface compatibility is required from field instruments.
Traditional single-output instruments can only serve one system type at a time. In contrast, composite output (six-wire connection) enables parallel multi-channel data output, allowing data sharing and coordinated operation across systems.
Specifically:
- 4–20 mA analog output → PLC real-time control
- RS485/Modbus communication → SCADA or host computer data acquisition
- Status signals → remote diagnostics and interlocking systems
This achieves the engineering result of “one instrument serving multiple systems simultaneously.”
3.2 Improved Anti-Interference Capability through Signal Isolation
In industrial environments with strong electromagnetic interference, high temperature, high pressure, and heavy dust, signal stability is critical for reliable level measurement.
Composite output (six-wire connection) physically separates power, analog signals, and digital communication lines. This significantly reduces cross-interference between different signal channels.
In practical applications, this structure:
- Reduces crosstalk between analog and digital signals
- Minimizes signal attenuation during long-distance transmission
- Improves resistance to electromagnetic noise from variable frequency drives and mixers
As a result, it significantly improves measurement stability and data reliability.
3.3 Enabling Industrial Digitalization and Intelligent Diagnostics
With the development of industrial digitalization and smart manufacturing, modern industrial instruments are no longer limited to single process variable output.
Composite output systems can simultaneously provide:
- Real-time level or material measurement values
- Echo intensity curves
- Device status information
- Fault diagnosis data
- Temperature compensation parameters
These multi-dimensional data streams can be uploaded to PLC, DCS, or industrial IoT platforms, enabling full-chain data connectivity from field measurement to cloud-based management.
This provides a solid data foundation for process optimization, predictive maintenance, and intelligent production management.
4. Comparison Between Composite Output and Traditional Wiring Methods
| Wiring Type | Structure | Output Capability | Industrial Application |
|---|---|---|---|
| Two-wire | Power + signal combined | Single 4–20 mA | Simple conditions |
| Four-wire | Power and signal separated | Mainly analog output | Medium complexity |
| Six-wire (Composite Output) | Analog + digital fully independent | Multi-protocol output | Complex industrial systems |
It is clear that composite output (six-wire connection) offers significant advantages in system compatibility and data capability.
5. Key Application Scenarios in Industrial Level Measurement
5.1 Chemical Industry

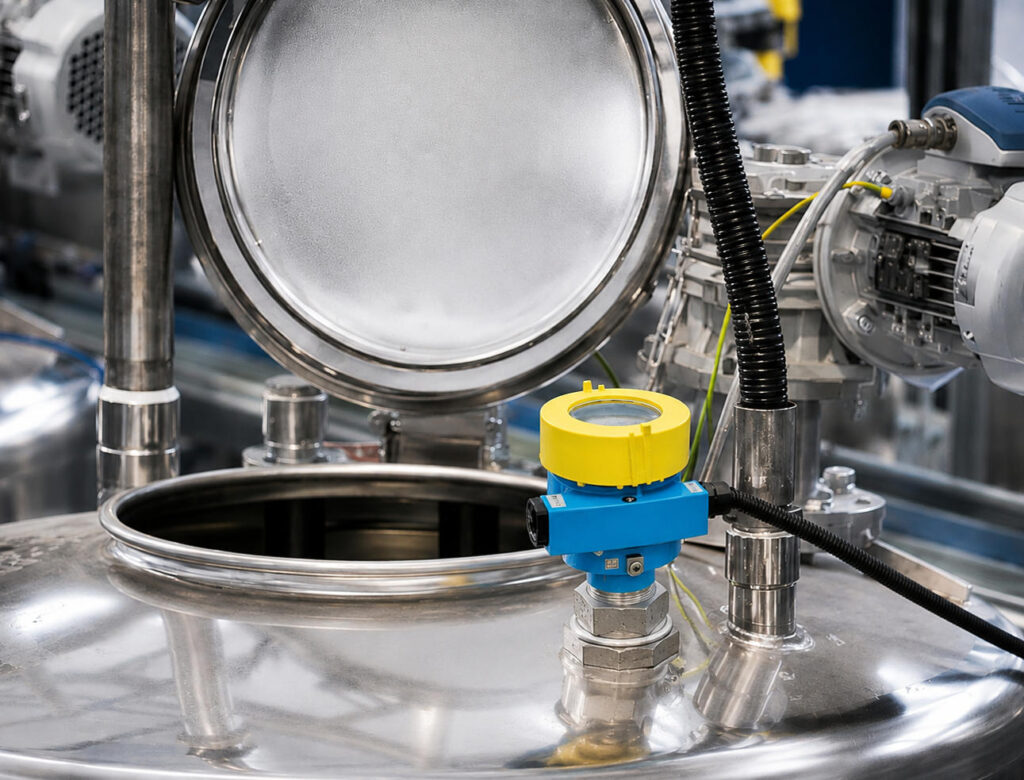

Used in reactors and storage tanks to enable dual-output for control systems and safety systems.
5.2 Cement and Mining Industry
Used in powder silos and limestone bins under high-dust conditions for remote monitoring and anti-overflow control.
5.3 Energy and Oil Industry
Used in oil tanks and chemical storage vessels for remote data acquisition and explosion-proof system integration.
5.4 Water Treatment and Environmental Protection
Used in reservoirs and wastewater systems for cloud-based data management.
6. Composite Output Technology in Jiwei JWrada® Radar Level Meter
The Jiwei JWrada® series 80GHz radar level meter implements composite output (six-wire connection) in selected PRO models. Through a multi-channel architecture and independent electrical isolation design, the device meets both analog and digital industrial requirements.
6.1 Technical Architecture Features
At the hardware level, the system adopts a fully separated architecture for power supply and signal circuits, ensuring physical isolation and improved stability.
Key features:
- Standard 4–20 mA analog output for PLC integration
- RS485 / Modbus-RTU communication for SCADA and IoT platforms
- Multi-channel isolation design to reduce long-distance signal distortion
This ensures accurate and stable data transmission.
6.2 Industrial Intelligence Capabilities
Based on composite output architecture, the system integrates intelligent industrial functions:
- Built-in Bluetooth for fast on-site commissioning
- “JIWEI Smart Control®” APP for remote configuration and monitoring
- Real-time echo curve output for diagnostics
- Device status logging and historical tracking
- Parameter cloning for batch configuration (2–5 minutes per device)
These features significantly improve commissioning efficiency and deployment speed.
6.3 Stability in Complex Working Conditions
The system is widely used in:
- High-dust mining silos
- High-temperature and steam-filled chemical tanks
- High-vibration environments
- Strong electromagnetic interference areas
Compared with traditional single-output instruments, composite output ensures stable and consistent data transmission even under harsh industrial disturbances.
7. Industry Trend: From Single Output to Multi-Protocol Integration
With the development of Industry 4.0 and digital factories, instrument output technology is undergoing fundamental transformation:
Key trends:
- From 4–20 mA → multi-protocol integration
- From local control → cloud collaboration
- From single data → multi-dimensional diagnostics
- From manual configuration → wireless remote commissioning
Composite output (six-wire connection) is a key milestone in this evolution.
8. Conclusion
Composite output (six-wire connection) is an important signal architecture in industrial instrumentation. By independently distributing power, analog signals, and digital communication, it enables a transformation from single-signal output to multi-channel data fusion.
This technology improves system compatibility, anti-interference performance, and provides a solid data foundation for industrial IoT and smart factories.
In the field of industrial radar level measurement, intelligent instruments represented by the Jiwei JWrada® series are driving the industry toward higher efficiency, intelligence, and digitalization through composite output architecture and wireless commissioning technology.
