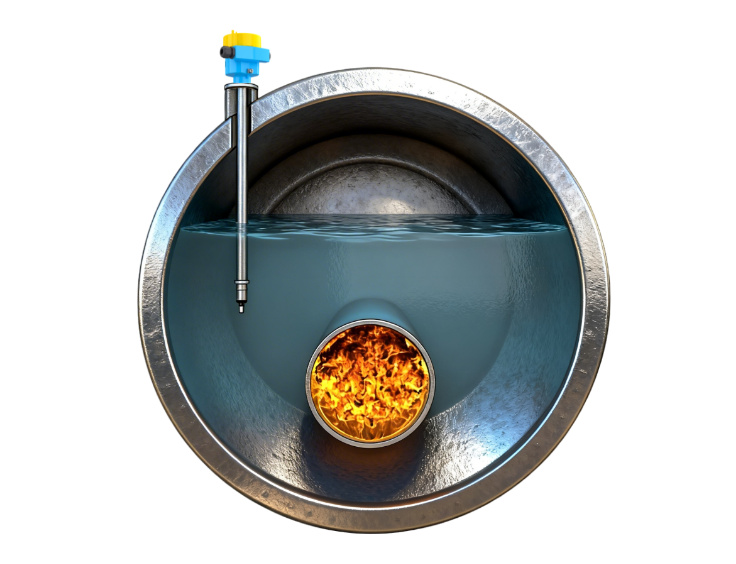

Practical Analysis of Jiwei Ring-11 Vibrating Level Switch in Steam Drum Water Level Monitoring
In modern industrial production, the heart of the power workshop is undoubtedly the boiler and its core component—the steam drum. As the junction for the water wall circulation, feedwater, and superheater, the precise measurement of the steam drum level is directly related to the operational safety of the entire plant. If the water level is too high, moisture may enter the superheater, causing scaling or damage to the turbine. Conversely, if the level is too low, it can lead to dry firing or even trigger an explosion.
To address these extreme environments characterized by high temperature, high pressure, and complex process conditions, Shenzhen Jiwei Automations Ltd. developed the Ring-11 Vibrating Level Switch for Steam Drum Level Protection – Case Study of Haifeng Power Plant High-Reliability Vibrating Level Switch. It has become the preferred solution for many large-scale energy enterprises and chemical parks. This article will combine real engineering cases to deeply analyze how the Ring-11 achieves rock-solid level detection under extreme conditions of 16 bar and 400 °C.
1. Challenges and Requirements of Steam Drum Level Monitoring
In power and process heating applications, steam pressure is the core means of regulating process temperature. To meet different process requirements, the interior of a steam drum is usually in a state of intense dynamic equilibrium:
Extreme Parameters: Pressures can reach 16 bar and temperatures up to 400 °C, which places harsh demands on the sensor’s material and sealing structure.
Bubbles and Foam: Violent boiling causes a large number of bubbles on the water surface. Traditional float or conductivity switches are prone to false actions in these conditions.
High Safety Standards: As a safety interlocking device for high and low water alarms (High/Low Water Limiter), the equipment must have self-monitoring functions and comply with SIL2/SIL3 safety integrity levels.
2. Core Case: Steam Drum Renovation Project at Shandong Huantai Jincheng Petrochemical Power Station
Project Background:
Shandong Jincheng Petrochemical Group, located in Huantai County, Zibo City, Shandong Province, is a well-known domestic refining enterprise. The ultra-high pressure boiler steam drum in its power station originally used an imported brand of level switches. However, under high-pressure environments, these switches frequently experienced electronic head drift and signal false alarms. Maintenance costs were extremely high, posing a risk to production safety.
The Solution:
The engineering department of Jincheng Petrochemical decided to introduce the Jiwei Ring-11 Vibrating Level Switch as the core protection component for high and low water level alarms.
Performance in Action:
Pressure and Temperature Resistance: Jiwei customized a high-pressure flange interface for this project. The fork of the Ring-11 is made of specially treated 316L stainless steel, which can withstand intense pressure fluctuations within the steam drum, ensuring no structural deformation at 16 bar.
SIL3 Level Safety Assurance: The Jiwei Ring-11 Vibrating Level Switch features powerful self-monitoring functions. In the control room of Jincheng Petrochemical, technicians can obtain the status of the switch in real-time through the DCS system. The electronic components monitor the vibration frequency of the fork. If a damaged fork or electronic component failure is detected, an alarm signal is issued immediately, rather than falsely maintaining a normally open or normally closed state.
One-Button Function Test: During routine inspections, maintenance personnel do not need to disassemble the equipment. By simply pressing the magnetic test key on the housing, they can simulate a level alarm state to quickly verify whether the logic interlocking is functioning normally.
3. Technical Advantages Analysis of Jiwei Ring-11 Vibrating Level Switch
Why does the Ring-11 stand out among many brands? It stems from deep optimization targeting industrial pain points.
- Scientific Frequency DetectionThe working principle of the Ring-11 is based on piezoelectric crystals exciting the fork to vibrate. When the fork is immersed in liquid, the vibration frequency drops significantly. The electronic circuit detects this change and outputs a switch signal.
Anti-interference: This detection method is unaffected by foam, turbulence, bubbles, or liquid conductivity.
Maintenance-free: Compared to float switches, the vibrating fork has no mechanical moving parts and will not get stuck due to scaling.
- Superior Materials and SealingIn the waste heat power generation project of Inner Mongolia Erdos Group, the steam drum level gauge must face frequent start-stop shocks. The Ring-11 provided by Jiwei uses a fully welded structure, completely eliminating the possibility of high-temperature and high-pressure steam penetrating the electronic head. Its protection level reaches IP66/IP67.
- Flexible Installation and Simple DebuggingThe design of the Ring-11 fully considers user-friendliness:
Simple Mounting: Whether side-mounted or top-mounted, installation can be completed through standard flanges or threads.
No Field Calibration Required: Every Ring-11 is precisely frequency-calibrated before leaving the factory. Users can use it out of the box, saving time on tedious sensitivity settings.
4. Real Case: Waste-to-Energy Plant in Zhanjiang, Guangdong
Project Location: A Circular Economy Environmental Protection Park in Zhanjiang City, Guangdong Province.
Operating Conditions:
The waste incineration grate furnace of this power plant is equipped with a steam drum. Due to the complex composition of the waste, the steam may carry corrosive gases, and the water level fluctuates frequently.
Application Results:
The plant replaced 12 units with Jiwei Ring-11 Vibrating Level Switches during its 2024 overhaul. Feedback from the plant indicates that the Ring-11 performs excellently even with high-viscosity material buildup. Even with slight chemical deposits on the fork, its automatic measurement correction ensures the alarm point remains accurate. This has significantly reduced unplanned downtime caused by level gauge false alarms.
5. Selection Guide: Configuring Ring-11 Vibrating Level Switch for Steam Drum Environments
To ensure the Ring-11 achieves the best effect in steam drum applications, it is recommended to focus on the following configurations:
Configuration Item: Fork Length
Recommended Specification: Customized according to steam drum high/low limit requirements, typically 40mm to 6000mm.
Configuration Item: Process Pressure
Recommended Specification: Must select high-pressure enhanced type, supporting up to 16 bar.
Configuration Item: Electronic Components
Recommended Specification: Recommended to use double relay output or NAMUR signal to match SIL safety loops.
Configuration Item: Self-test Function
Recommended Specification: Ensure it includes self-monitoring for the entire life cycle of electronic components and sensors.
6. Summary: Dual Benefits of Safety and Economy
On high-value, high-risk equipment like steam drums, choosing a mature product like the Jiwei Ring-11 provides benefits far beyond the procurement cost:
Improved Reliability: Automatic measurement correction reduces human error.
Operational Optimization: Precise water level control ensures optimal heat exchange efficiency.
Maintenance Peace of Mind: Long service life and simple functional testing greatly relieve the workload of instrument technicians.
As the head of instrumentation at Shandong Jincheng Petrochemical stated: The fact that a domestic level switch can achieve this level of stability and self-test depth gives us great confidence in the localization of industrial automation.
If you are looking for a cost-effective, high-safety solution for steam drum level monitoring in the power, chemical, or pharmaceutical industries, the Jiwei Ring-11 Vibrating Level Switch is undoubtedly a wise choice proven by field experience.
