HART Protocol: Principles and Applications in Industrial Automation
1. Introduction
The HART (Highway Addressable Remote Transducer) protocol is a widely used hybrid communication protocol in the field of industrial automation. By combining analog and digital communication, HART enables seamless integration between smart field devices and traditional control systems.
This article provides a detailed explanation of the working principles, advantages, limitations, and industrial applications of the HART protocol.
2. Working Principle of HART Protocol
The HART protocol was developed to enhance the widely used 4–20mA current loop, which is the standard communication method in industrial automation.
2.1 Dual Signal Transmission
HART allows two types of signals to be transmitted simultaneously over the same 4–20mA loop:
- Analog Signal (4–20mA):
Represents the primary process variable (such as pressure or temperature) and is used by traditional control systems. - Digital Signal:

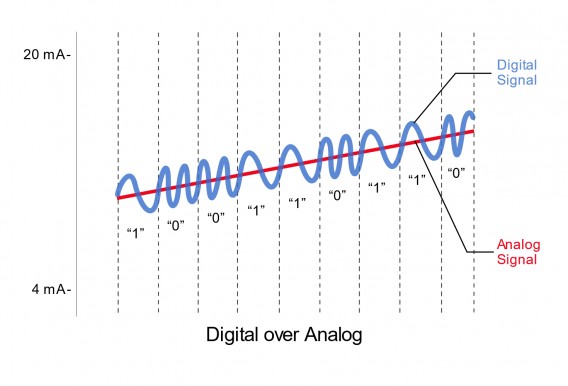

Superimposed on the analog signal using Frequency Shift Keying (FSK), used to transmit additional device data such as configuration parameters, diagnostics, and status information.
This dual-mode operation ensures backward compatibility while enabling advanced functionality.
2.2 Frequency Shift Keying (FSK) Modulation
HART uses FSK modulation based on the Bell 202 standard for digital communication:
- 1200 Hz represents binary “1”
- 2200 Hz represents binary “0”
Since the digital signal is superimposed on the analog current loop, it does not interfere with the primary measurement, ensuring data integrity.
2.3 Communication Modes
HART supports two communication modes:
- Point-to-Point Mode:
A single master (e.g., control system or handheld device) communicates with one field device. - Multidrop Mode:
One master communicates with multiple devices. In this mode, all devices are set to a fixed current of 4mA, reducing wiring complexity.
2.4 Master-Slave Architecture
HART operates using a master-slave communication structure:
- Master: Control system, handheld communicator, or host system
- Slave: Field devices such as transmitters, sensors, or valve controllers
The master initiates communication, and the slave responds, ensuring structured and reliable data exchange.
3. Advantages of HART Protocol
3.1 Backward Compatibility
HART operates on existing 4–20mA infrastructure, allowing upgrades without rewiring, which significantly reduces costs.
3.2 Digital Communication Capability
In addition to primary process variables, HART transmits rich diagnostic and configuration data, enabling advanced device monitoring.
3.3 High Reliability
FSK modulation provides strong resistance to noise and interference, ensuring stable communication in harsh industrial environments.
3.4 Low Implementation Cost
By utilizing existing wiring and infrastructure, HART significantly reduces installation and upgrade costs.
3.5 Easy Configuration and Diagnostics
Engineers can configure and diagnose devices remotely using HART-compatible handheld devices or software tools, reducing downtime and maintenance costs.
4. Limitations of HART Protocol
4.1 Limited Data Rate
The data transmission rate of HART is 1200 bps, which is sufficient for most applications but not suitable for high-speed or large data transfers.
4.2 Multidrop Limitations
In multidrop mode, the number of devices is typically limited to around 15, restricting scalability in large systems.
4.3 Requires Specialized Tools
Configuration and troubleshooting often require dedicated HART tools or software, which may increase cost and complexity.
5. Applications of HART Protocol
5.1 Process Control
HART is widely used to monitor and control process variables such as pressure, temperature, flow, and level.
5.2 Predictive Maintenance
By transmitting diagnostic data, HART enables predictive maintenance, allowing engineers to detect issues such as sensor drift or valve wear before system failure occurs.
5.3 Field Device Configuration
HART simplifies field device configuration, such as adjusting sensor ranges or tuning valve parameters without manual intervention.
5.4 Calibration and Testing
Technicians can use HART communicators or software tools to calibrate and test devices on-site, ensuring accuracy and reliability.
6. Industry Applications
6.1 Oil and Gas
- Pipeline pressure and temperature monitoring
- Remote configuration in hazardous environments
6.2 Chemical Processing
- Reactor condition monitoring
- Continuous diagnostics for safe operation
6.3 Water and Wastewater
- Flow and level measurement
- Efficient pump and valve control
6.4 Power Generation
- Boiler condition monitoring
- Turbine reliability through diagnostics
7. Future of HART Protocol
Although HART remains a trusted protocol in industrial automation, newer technologies such as WirelessHART and IoT-based solutions are expanding its capabilities.
WirelessHART eliminates wiring limitations and provides greater flexibility and scalability in industrial networks.
8. Conclusion
The HART protocol achieves a balance between traditional system compatibility and modern digital communication, making it a versatile solution in industrial automation.
Its ability to transmit rich data over existing infrastructure reduces costs while improving operational efficiency. Despite certain limitations, HART remains a key technology ensuring reliable and efficient process control across industries.
