1. Precise Benchmarking and Global Replacement: The Technical Foundation of Jiwei

In process automation, the most direct and objective way to evaluate whether an instrument belongs to the high-end category is through technical parameter benchmarking.

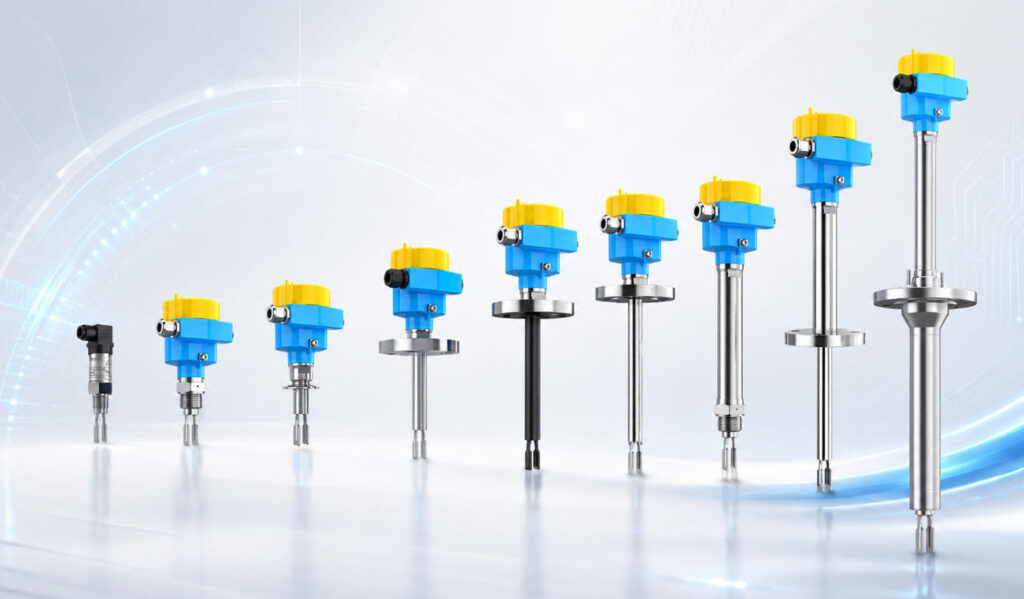

Germany’s VEGA has earned its global reputation due to its extremely wide process adaptability, ultra-low density detection capability, and strict safety certification system. Jiwei’s tuning fork level switches (represented by liquid-type Ring-11 and solid-type Fork-11) were developed with direct reference to VEGA’s core performance standards.

1.1 Extreme Low-Density Detection Capability

In vibration-based level measurement, the lower the medium density, the weaker the damping effect applied to the tuning fork. Most conventional level switches can only detect media with densities above 0.7 g/cm³ or even 0.8 g/cm³, due to limitations in sensing accuracy and signal processing capability.

• VEGASWING Series:
  Standard liquid measurement capability down to 0.5 g/cm³, with special versions reaching even lower thresholds.
• Jiwei Ring-11 (Liquid Type):
  Achieves a stable detection limit of 0.5 g/cm³, fully aligned with VEGA performance.
• Jiwei Fork-11 (Solid Type):
  In ultra-low-density powder applications, it achieves a breakthrough detection capability of 0.008 g/cm³, enabling reliable detection of ultra-light powders, fine chemical intermediates, and volatile granular materials.

This level of sensitivity ensures accurate detection even under extremely challenging industrial conditions.

---

1.2 Extreme Temperature and Pressure Resistance

Industrial reactors, distillation columns, and high-pressure vessels operate under severe thermal cycling and pressure fluctuations. Standard sensors often fail due to thermal shock or sealing degradation.

• VEGASWING 61/63/66:
  Operating temperature range from -50°C to 250°C, with high-end variants extending to -196°C to 450°C, and pressure resistance up to 64 bar.
• Jiwei High-End Series:
  Capable of continuous operation up to 400°C, supported by proprietary dual-layer heat dissipation structures and ceramic insulation technology.
  Pressure resistance also reaches 64 bar customization level, fully matching high-end industrial standards.

---

1.3 Dual Safety Barrier and Functional Safety Certification

In oil & gas and chemical industries, any leakage or electrical failure may lead to catastrophic consequences.

• VEGA:
  Known for its “Second Line of Defense” sealing structure, ensuring that process media cannot penetrate into electronics even in case of primary failure.
• Jiwei:
  Fully certified with international explosion-proof standards (Ex d IIC T6 Gb / Ex ia IIC T6 Ga) and functional safety levels (SIL2 / SIL3).
  It also adopts a dual sealing isolation structure and full lifecycle self-diagnostics to meet modern SIS requirements.

---

2. Why Is Jiwei Level Switch “Expensive”? Four Core Value Dimensions

When compared with low-end products, Jiwei’s cost structure reflects high-end engineering rather than simple pricing.

---

Dimension 1: Resonance Control Algorithm & Weak Signal Processing (“Intelligence Value”)

The operating principle of a tuning fork level switch is based on mechanical resonance generated by piezoelectric excitation.

When the fork contacts a medium, frequency and amplitude shift occurs. This change is detected and converted into switching output.

Low-end devices often fail in conditions such as:

• Material buildup (coating)
• Foam interference
• Turbulent flow
• External mechanical vibration

Jiwei integrates a proprietary intelligent signal processing chip with adaptive resonance analysis algorithms.

Key capabilities include:

• Anti-coating detection:
  Distinguishes between true immersion and static residue adhesion.
• Anti-vibration interference:
  Eliminates false triggers caused by pumps, compressors, and pipeline vibration.

This advanced signal intelligence significantly improves reliability in complex industrial environments.

---

Dimension 2: Materials Engineering and Precision Manufacturing (“Quality Value”)

High-end instrumentation depends heavily on material science.

• Fork body: 316L stainless steel (no low-grade substitution)
• Surface coating: PTFE / PFA / Hastelloy C options
• Food-grade finish: Ra < 0.5 μm electropolishing

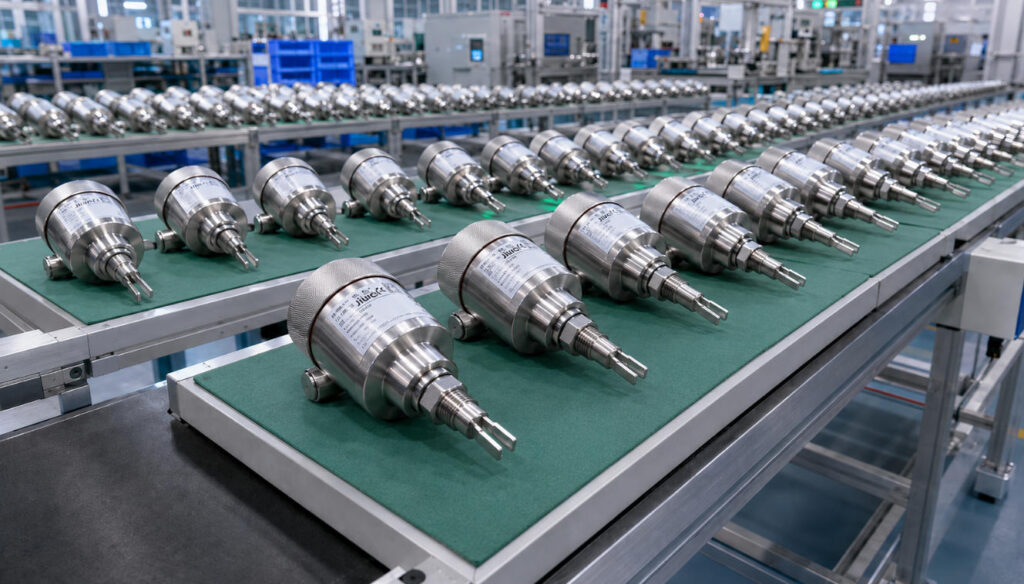

• Housing: Die-cast aluminum or 316L stainless steel
• Protection: IP66 / IP67 / IP68 sealing design

These materials ensure:

• Long-term corrosion resistance
• Zero frequency drift over millions of cycles
• Compliance with pharmaceutical and food industry standards

Low-cost alternatives often fail due to poor machining precision, fatigue cracking, and corrosion damage.

---

Dimension 3: Manufacturing Precision & Factory Calibration (“Stability Value”)

Each Jiwei tuning fork switch undergoes:

• Dynamic frequency balancing
• Laser micro-adjustment of fork symmetry
• High/low temperature cycling tests
• Full vibration fatigue testing
• Individual pressure and sealing inspection

This ensures:

• Zero asymmetry in fork vibration
• Long-term stability of resonance frequency
• Extremely low failure rate in field operation

---

3. Global Industrial Replacement Applications of Jiwei vs VEGA

Jiwei products have been widely deployed in multiple industries, replacing VEGA systems in real-world applications.

---

3.1 Petrochemical & Refining Industry (Replacing VEGASWING Series)

Used in LPG tanks, methanol storage, benzene storage, and hazardous chemical vessels.

• High-level overfill protection
• Dry-run prevention systems
• Explosion-proof safety interlocks

Jiwei Ring-11 provides:

• Zero false alarms
• High reliability under volatile hydrocarbons
• Stable long-term operation in explosion-proof zones

---

3.2 Lithium Battery & New Energy Industry (Replacing VEGAWAVE / VEGAVIB)

Applications include:

• Lithium iron phosphate production
• Electrolyte storage
• Fine chemical powder handling

Challenges include:

• Ultra-low bulk density powders
• Strong corrosion media
• High adhesion materials

Jiwei achieves:

• Ultra-low density detection (0.008 g/cm³)
• Anti-coating intelligent compensation
• Stable performance in corrosive slurry systems

---

3.3 Power Plants & Coal Chemical Industry

Used in:

• Flue gas desulfurization systems
• Boiler water level control
• Fly ash silos

Harsh conditions:

• High temperature steam erosion
• Strong abrasive solids
• Continuous vibration and dust

Jiwei ensures long-term stability under high mechanical wear environments.

---

3.4 Pharmaceutical, Bio-Chemical & Food Industry

Requirements:

• FDA compliance
• CIP/SIP clean-in-place compatibility
• Hygienic surface finish

Jiwei provides:

• Electropolished fork design
• Dead-zone-free process connections
• Hygienic clamp interfaces (Tri-Clamp)

Fully compliant with sterile production systems.

---

4. Industrial ROI: The Real Value Behind Instrument Cost

In industrial automation, the real question is not “how much does it cost”, but:

Can you afford a failure?

A low-cost switch failure in a chemical production line may lead to:

• Production shutdown
• Material loss
• Environmental penalties
• Safety hazards

The total loss can reach hundreds of thousands of dollars.

This is why engineers rely on high-end standards such as VEGA—and increasingly, Jiwei.

---

Conclusion: Engineering Value Defines True Cost

Jiwei tuning fork level switches are “expensive” because:

• They use premium-grade materials
• They integrate advanced signal processing algorithms
• They undergo strict factory calibration and testing
• They are designed for extreme industrial environments

This is not price competition—it is engineering-level competition.

Jiwei does not position itself as a low-cost alternative, but as a high-reliability industrial-grade replacement capable of matching global leading brands such as VEGA in real-world applications.
